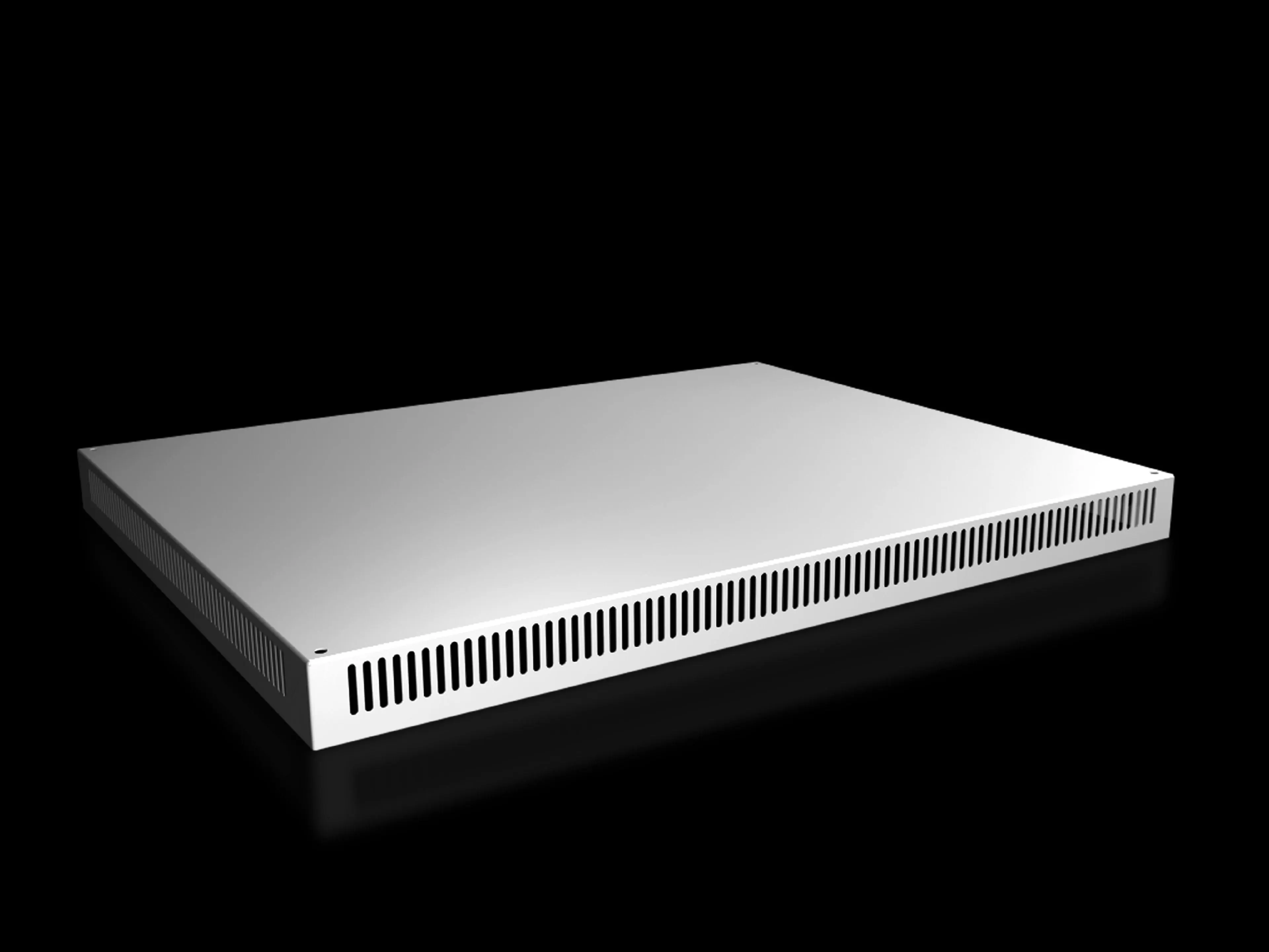

Rittal 9681808 VX Roof Plate - IP 2X, 72 mm, 1000x800
Part Number: 9681808
Manufacturer
Rittal
Part number
9681808
Alt Part Number
SV 9681.808
Quick Summary
Rittal 9681808 VX Roof Plate is a retrofit roof panel for standard enclosure housings with ventilation. Replacing roofs in existing cabinets often causes downtime and misalignment, delaying critical projects. It meets CE quality standards and IP 2X ingress protection, boosting reliability in dusty, moist environments. Designed for modular Rittal systems, it enables fast installation, consistent finishes, and lower spare-part complexity. The compact 72 mm build height with a 1000x800 mm footprint integrates smoothly with standard enclosures, ensuring ventilation holes are positioned for airflow. This makes refurbishment less disruptive and supports standardization across mixed-production lines. With assembly parts included, technicians can complete swaps quickly during scheduled maintenance.
Product Information
Extended Description
9681808 Rittal: VX Roof plate, Wdepth 1000x800 mm, IP 2X, H: 72 mm, with ventilation hole
Article number
SV 9681.808
Product description
For enclosures without roof plate and in exchange for the standard roof.
Material
Sheet steel, 1.5 mm
Surface finish
Textured paint
Colour
RAL 7035
Supply includes
Assembly parts
Build-up height
72 mm
To fit
Width: = 1,000 mm | Depth: = 800 mm
Packs of
1 pc(s).
Weight/pack
13.52 kg
Customs tariff number
73269098
EAN
4028177926677
ETIM 9
EC000744
ECLASS 8.0
27182405
Product description
VX Roof plate, Wdepth 1000x800 mm, IP 2X, H: 72 mm, with ventilation hole
Feature: Fits 1000x800 mm enclosures with a 72 mm profile and IP 2X protection. Business Impact: Delivers a robust, ventilated top cover that maintains internal component protection while meeting ingress protection requirements. Application: Ideal for retrofitting enclosures without a roof plate, enabling rapid upgrades on production lines with standard dimensions. The result is reduced downtime and a more reliable enclosure system. Feature: 1.5 mm sheet steel with textured paint in RAL 7035. Business Impact: Provides durable mechanical protection and a consistent finish, lowering repainting needs and preserving aesthetics in harsh environments. Application: Suitable for industrial environments requiring corrosion resistance and uniform appearance. Feature: Assembly parts included; weight per pack 13.52 kg; packaging aligns with single unit installation. Business Impact: Simplifies on-site installation, improves part traceability, and minimizes separate inventory. Application: Useful for service technicians performing roof swaps during maintenance windows. Feature: To fit: Width 1000 mm; Depth 800 mm. Business Impact: Ensures precise fitment with standard enclosure footprints, reducing marginal gaps and airflow disruption. Application: Works across lines using VX enclosures in a modular setup. Feature: Customs tariff 73269098; EAN 4028177926677; CE compliance. Business Impact: Facilitates compliant procurement and traceability, easing cross-border shipping and quality assurance. Application: Aligns with global supply chains and regulatory requirements.
Get a Quick Quote for a Rittal 9681808
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9681808?
Enquire Now
FAQs
Installation starts by removing the existing roof or preparing the enclosure top. Align the VX Roof Plate with the enclosure footprint, slide in the assembly parts, and fasten according to the included hardware. The 72 mm height integrates with standard enclosures, preserving internal space while providing IP 2X protection. Verify seal integrity and airflow paths after installation to ensure optimal ventilation.
Key specifications include a 1000x800 mm footprint, 72 mm build height, IP 2X ingress protection, sheet steel with 1.5 mm thickness, textured finish in RAL 7035, and weight of 13.52 kg per pack. The product is supplied with assembly parts and is designed to fit standard Rittal enclosures without a roof plate, ensuring compatibility and consistent aesthetics.
Yes. The component provides IP 2X ingress protection, which helps prevent dust ingress and exposure to moisture. The 1.5 mm sheet steel with textured paint offers robust mechanical protection and corrosion resistance, maintaining integrity in challenging industrial environments and extending service life with less maintenance.
The roof plate is CE-compliant and carries specifications like IP 2X for ingress protection. It includes the EAN, tariff classification, and other traceable identifiers (EAN 4028177926677, tariff 73269098), supporting compliant procurement, import accuracy, and quality assurance across international supply chains.
Upgrading with SV 9681.808 reduces downtime by enabling rapid roof swaps, provides a uniform, maintenance-friendly finish, and minimizes future refurbishment costs. The included assembly parts simplify installation, while the fixed dimensions ensure compatibility across multiple enclosures, reducing spare-parts diversity and improving maintenance predictability.
