Rittal 9682104 VX Partial Door - 2 Locks IP54
Part Number: 9682104
Manufacturer
Rittal
Part number
9682104
Alt Part Number
SV 9682.104
Quick Summary
Rittal 9682104 VX Partial Door is a flexible front-door option for VX enclosures, enabling quick configuration changes in control panels. When retrofits or reconfigurations are needed, replacing a full door can disrupt operations and increase downtime. It provides IP54 protection and supports left or right hand hinge, with monitor frame compatibility (2305.000) for specific heights; it also aligns with ETIM EC000747 and ECLASS 27182204 classifications to simplify procurement. With a textured RAL 7035 finish on 2 mm sheet steel, this partial door combines rugged protection with serviceability, delivering efficiency, scalable automation, and cost control for modern electrical infrastructure.
Product Information
Extended Description

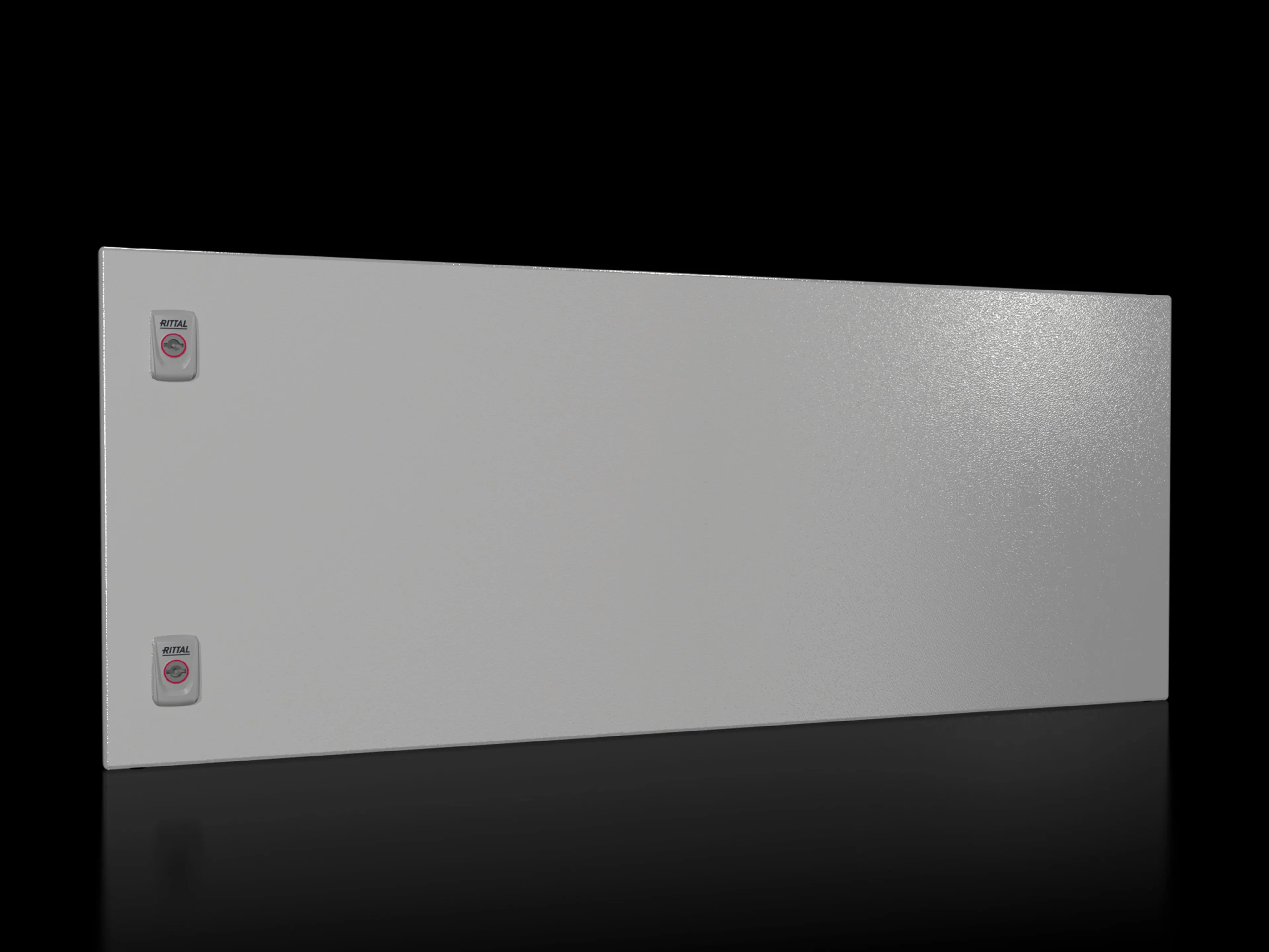

9682104 Rittal: VX Partial door, WH: 1000x400 mm, sheet steel
Article number
SV 9682.104
Product description
Suitable for VX enclosures instead of a door or rear panel. The partial doors may be combined with one another as required. A trim panel is required at the top and bottom in each case. Door may be optionally hinged on the right or left. In the case of doors without viewing panel (height 600 – 1000 mm), monitor frame 2305.000 may be installed. Standard double-bit lock insert may be exchanged for lock inserts, type A.
Material
Sheet steel, 2 mm
Surface finish
Textured paint
Colour
RAL 7035
Supply includes
Partial door | Cross member | Hinges | Lock components | Assembly parts
Note
Opening angle of partial doors max. 130°
Lock
Number of locks: 2
Dimensions
Width: 1,000 mm | Height: 400 mm
To fit
Width: = 1,000 mm
IP protection category to IEC 60 529
IP 54
Packs of
1 pc(s).
Weight/pack
8.12 kg
PCF per pack (cradle-to-gate)
30.9 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177929043
ETIM 9
EC000747
ECLASS 8.0
27182204
Product description
VX Partial door, WH: 1000x400 mm, sheet steel
Feature: Left or right hinge option enhances installation flexibility, reducing field engineering time and allowing quick reconfiguration as panel layouts evolve. This translates to measurable uptime gains when equipment footprints shift during plant expansion, especially in VX enclosure environments where space is at a premium. Feature: 2 mm sheet steel with a textured paint finish in RAL 7035 delivers durable protection against typical factory conditions, supporting longer service life and lower maintenance costs without compromising accessibility. Feature: IP54 protection ensures dust and splash resistance, helping meet safety and regulatory requirements in busy manufacturing floors while safeguarding sensitive electronics. Feature: Supply includes partial door, cross member, hinges, lock components, and assembly parts, enabling faster installation and fewer separate purchases in high-velocity capital projects. Feature: Opening angle up to 130° provides ample access for wiring and inspection, while two locks offer secure access control and compatibility with standard lock inserts. Feature: Designed for 1,000 mm width and 400 mm height, with a weight of 8.12 kg per pack, it fits VX enclosures seamlessly and supports straightforward retrofits and scalable automation.
Get a Quick Quote for a Rittal 9682104
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9682104?
Enquire Now
FAQs
Installation requires the included cross member, hinges, lock components, and assembly parts. The door is designed for a 1,000 mm width and 400 mm height, with left or right hinge options and an opening limit of 130 degrees. Ensure the trim panels at the top and bottom are in place for proper alignment and IP54 protection. The monitor frame 2305.000 may be used for heights without a viewing panel.
Confirm the enclosure width is 1,000 mm and height matches 400 mm. The door is made from 2 mm sheet steel with a textured finish in RAL 7035 and provides IP54 protection. It features two locks, a maximum opening of 130 degrees, and is supplied with all mounting hardware, hinges, and lock components for rapid installation.
Yes. The SV 9682.104 partial door is designed to replace or accompany doors or rear panels on VX enclosures. Its 1,000x400 mm footprint and included mounting hardware streamline retrofits, while the 2-lock security and left/right hinge options support adaptable layouts without full enclosure replacement.
The door carries an IP54 rating per IEC 60529 for dust and splash protection. It also aligns with ETIM 9 (EC000747) and ECLASS 8.0 (27182204) classification codes, facilitating parts provisioning and cross-referencing in procurement systems.
Using a partial door reduces retrofit downtime, lowers upfront hardware costs by bundling hinges, locks, and cross member, and enables modular upgrades. The pack weight is 8.12 kg, and the PCF is 30.9 kg CO2 eq (Cat B), contributing to sustainability goals while preserving access and protection for critical electronics.
