Rittal 9682142 VX Partial Door - IP54
Part Number: 9682142
Manufacturer
Rittal
Part number
9682142
Alt Part Number
SV 9682.142
Quick Summary
Rittal 9682142 VX Partial Door is a modular door for VX enclosures used in industrial automation control panels. It minimizes weight and material costs when a full door isn’t required while keeping IP54 protection. The design aligns with IP ratings and procurement standards, with ETIM EC000747 and ECLASS 27182204 classifications. Its left or right hinge option and compatible accessories support quick installation and flexible maintenance.
Product Information
Extended Description

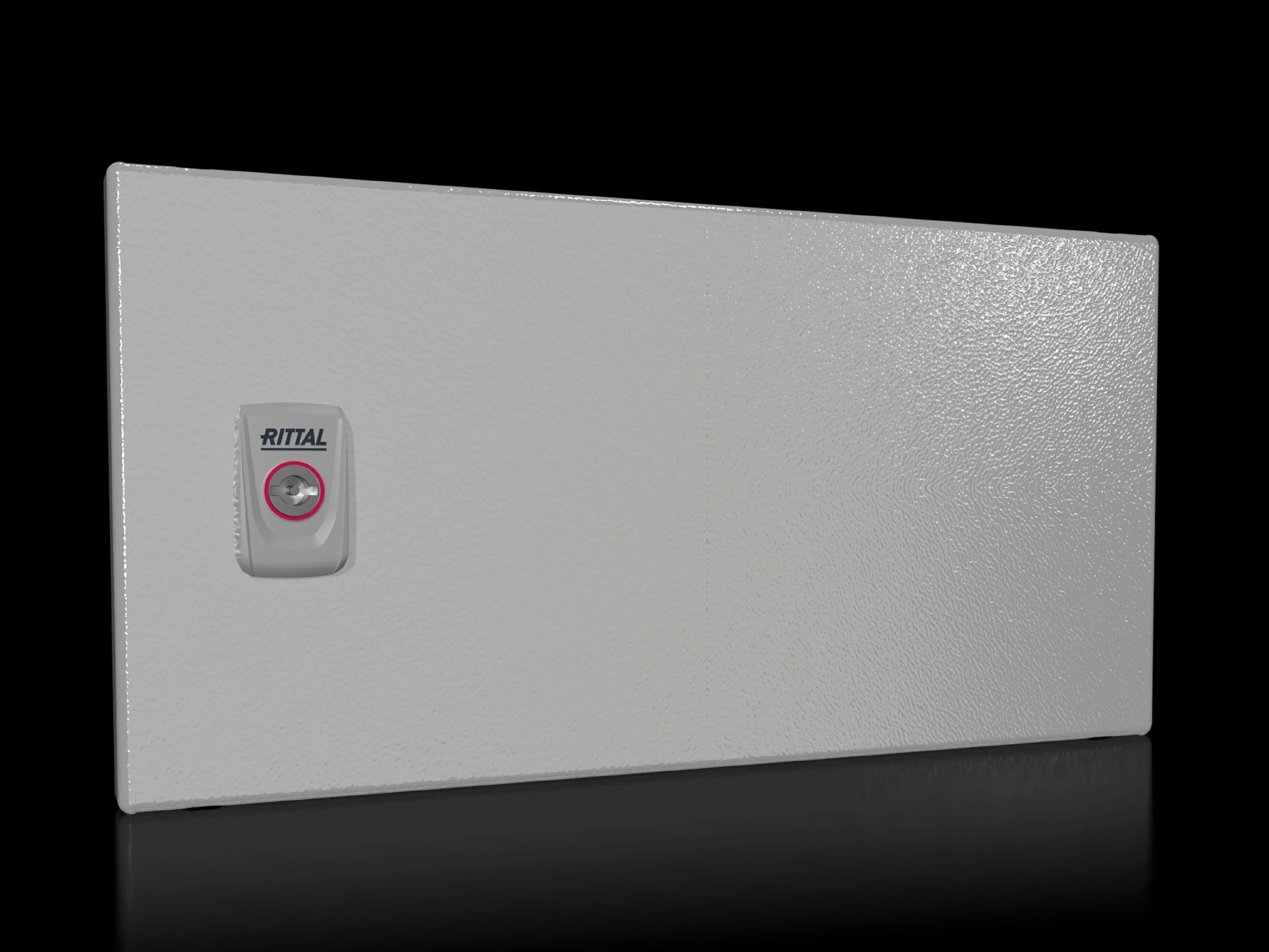

9682142 Rittal: VX Partial door, WH: 400x200 mm sheet steel
Article number
SV 9682.142
Product description
Suitable for VX enclosures instead of a door or rear panel. The partial doors may be combined with one another as required. A trim panel is required at the top and bottom in each case. Door may be optionally hinged on the right or left. In the case of doors without viewing panel (height 600 – 1000 mm), monitor frame 2305.000 may be installed. Standard double-bit lock insert may be exchanged for lock inserts, type A.
Material
Sheet steel, 2 mm
Surface finish
Textured paint
Colour
RAL 7035
Supply includes
Partial door | Cross member | Hinges | Lock components | Assembly parts
Note
Opening angle of partial doors max. 130°
Lock
Number of locks: 1
Dimensions
Width: 400 mm | Height: 200 mm
To fit
Width: = 400 mm
IP protection category to IEC 60 529
IP 54
Packs of
1 pc(s).
Weight/pack
2.44 kg
PCF per pack (cradle-to-gate)
9.3 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177929005
ETIM 9
EC000747
ECLASS 8.0
27182204
Product description
VX Partial door, WH: 400x200 mm sheet steel
Feature: Partial door for VX enclosures with a 400x200 mm opening. Business Impact: Enables cost-effective retrofits and stock optimization, reducing downtime and spare parts complexity in automation cabinets. Application: Suitable for control panels where a full door is unnecessary, improving serviceability while maintaining enclosure integrity. Feature: Left or right hinge orientation. Business Impact: Provides installation flexibility to fit existing layouts and space constraints, improving fit accuracy and reducing field modification time. Application: Ideal for retrofits or new builds in tight machine spaces. Feature: IP54 protection rating. Business Impact: Delivers reliable dust and splash protection in harsh environments, reducing risk of equipment damage and maintenance frequency. Application: Essential for electrical infrastructure cabinets in manufacturing lines. Feature: Material and finish. Business Impact: 2 mm sheet steel with textured paint (RAL 7035) offers durable aesthetics and corrosion resistance, extending cabinet life in demanding environments. Application: Outdoor and indoor enclosures requiring a robust finish. Feature: Complete supply includes cross member, hinges, lock components, and assembly parts. Business Impact: Speeds up installation and standardizes hardware, lowering field labor time and on-site variability. Application: Convenient for quick retrofit projects and new installations. Feature: Compatibility with viewing panels and monitor frames. Business Impact: Supports flexible configurations, enabling use with optional monitoring equipment where height is appropriate. Application: VX enclosure configurations requiring viewing or monitoring integration.
