Rittal 9682143 Partial door for VX Enclosures - IP54
Part Number: 9682143
Manufacturer
Rittal
Part number
9682143
Alt Part Number
SV 9682.143
Quick Summary
Rittal 9682143 Partial door for VX enclosures enables flexible access in control cabinets. Designers and technicians often struggle with restricted access or rework when upgrading enclosures, especially where mounting space is tight. With IP54 protection, durable 2 mm sheet steel, and a textured RAL 7035 finish, this option meets rugged industrial demands. The door can hinge on either side and supports combinations with other partial doors, streamlining installation and future modifications. Integrated hardware and standard lock options simplify procurement and help reduce downtime in production environments.
Product Information
Extended Description

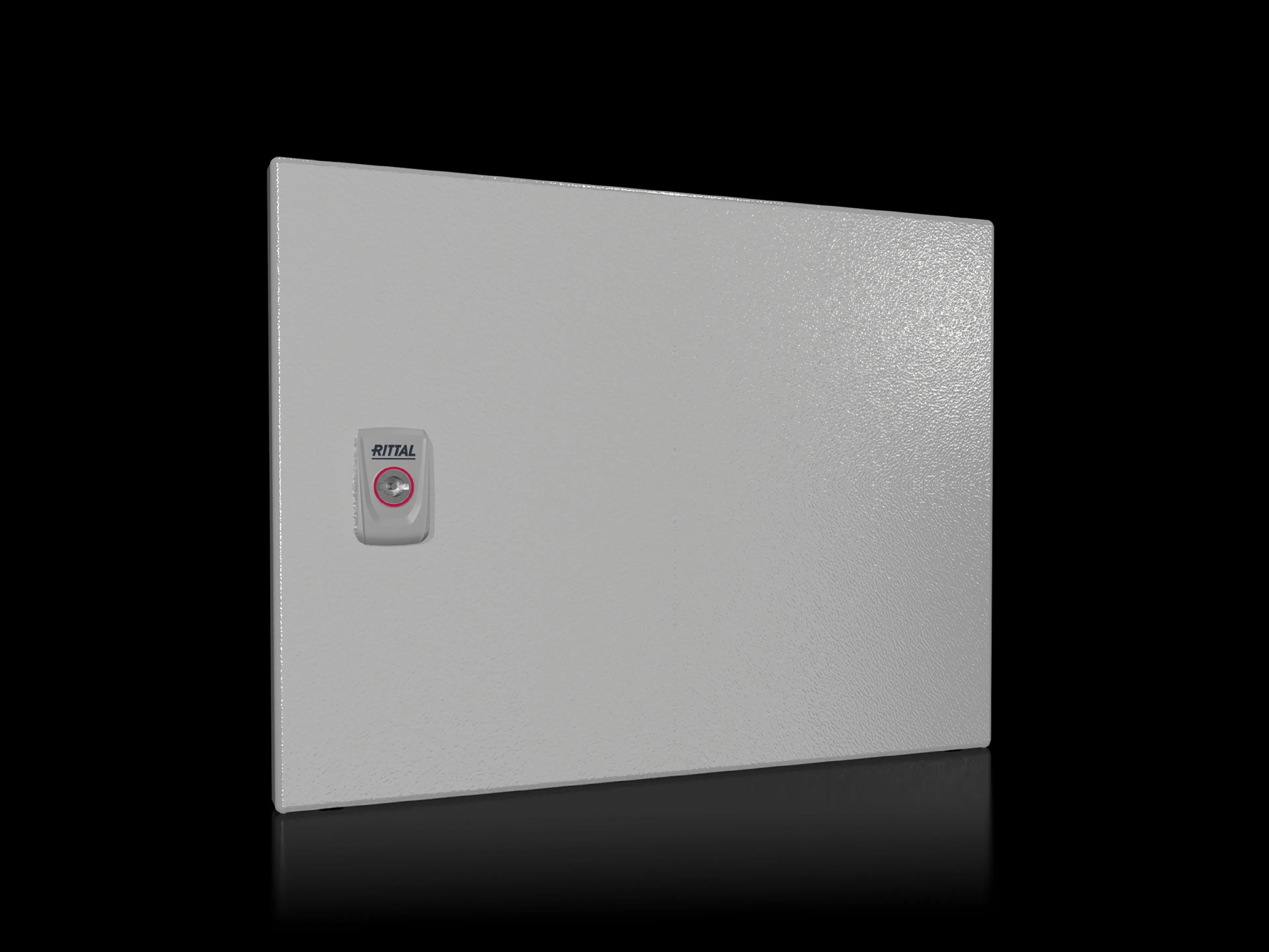

9682143 Rittal: VX Partial door, WH: 400x300 mm sheet steel
Article number
SV 9682.143
Product description
Suitable for VX enclosures instead of a door or rear panel. The partial doors may be combined with one another as required. A trim panel is required at the top and bottom in each case. Door may be optionally hinged on the right or left. In the case of doors without viewing panel (height 600 – 1000 mm), monitor frame 2305.000 may be installed. Standard double-bit lock insert may be exchanged for lock inserts, type A.
Material
Sheet steel, 2 mm
Surface finish
Textured paint
Colour
RAL 7035
Supply includes
Partial door | Cross member | Hinges | Lock components | Assembly parts
Note
Opening angle of partial doors max. 130°
Lock
Number of locks: 1
Dimensions
Width: 400 mm | Height: 300 mm
To fit
Width: = 400 mm
IP protection category to IEC 60 529
IP 54
Packs of
1 pc(s).
Weight/pack
3.16 kg
PCF per pack (cradle-to-gate)
12 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177928992
ETIM 9
EC000747
ECLASS 8.0
27182204
Product description
VX Partial door, WH: 400x300 mm sheet steel
The VX partial door is designed to fit VX enclosures with a width of 400 mm and height of 300 mm, allowing it to replace a full door or rear panel while enabling selective access. This modular approach reduces rework and enables multi-access configurations in tight control panels, improving maintenance speed and safety. Constructed from 2 mm sheet steel with textured paint in RAL 7035, it delivers robust durability in factory floors and demanding environments. The IP54 rating protects against dust ingress and water spray, supporting reliable operation in general industrial settings. Supplied as a complete kit—including partial door, cross member, hinges, lock components, and assembly parts—procurement is streamlined and installation time is minimized. The standard lock insert can be upgraded to type A, and opening up to 130 degrees enhances on-site access during servicing. PCF values (12 kg CO2 eq per pack) reflect a sustainability-conscious design, while a 3.16 kg per-pack weight aids handling during installation. This solution integrates smoothly with VX enclosures and existing mounting accessories, reducing total cost of ownership over the equipment lifecycle.
Get a Quick Quote for a Rittal 9682143
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9682143?
Enquire Now
FAQs
The SV 9682.143 is a VX partial door sized 400 mm wide by 300 mm high, intended to fit VX enclosures and to replace a door or rear panel. It can be combined with other partial doors to create multi-access configurations, and requires top and bottom trim panels for complete assemblies.
Yes, the door carries an IP54 rating, offering protection against dust ingress and water spray from typical industrial environments. This makes it suitable for factory floors and control cabinet applications where dust and light splashes are common, while still allowing ventilation and easy maintenance access when used with proper seals.
Yes. The door is designed for flexible installation and can be hinged on either the left or right. This configurability helps accommodate existing cabinet layouts and simplifies retrofits in constrained or awkward spaces.
The package includes the partial door, cross member, hinges, lock components, and assembly parts. It uses a standard double-bit lock insert by default, which can be exchanged for lock inserts of type A if higher security or a different keying arrangement is required.
Key considerations include the 400x300 mm footprint, 2 mm sheet steel construction with textured paint in RAL 7035, and IP54 protection. The opening angle is limited to 130 degrees, and the kit facilitates quick installation with included cross member and hinges. It’s compatible with VX enclosures and supports rapid upgrades and maintenance workflows.
