Rittal SV 9682.146 VX Partial Door - IP 54, 400x600
Part Number: 9682146
Manufacturer
Rittal
Part number
9682146
Alt Part Number
SV 9682.146
Quick Summary
Rittal VX Partial Door is a versatile enclosure door designed for VX enclosures, enabling flexible hinge options and secure locking for modern control panels. That flexibility reduces field rework when configurations change, cutting installation time and downstream changes. With an IP 54 rating, a dual-lock system, and easy integration with trim panels and the monitor frame 2305.000, it supports scalable, maintenance-friendly cabinets. In practice this translates to smoother procurement, lower spare-part inventory, and predictable lead times for panel builds. The solution aligns with industrial enclosure best practices while supporting cost-effective, repeatable deployments in electrical infrastructure projects.
Product Information
Extended Description

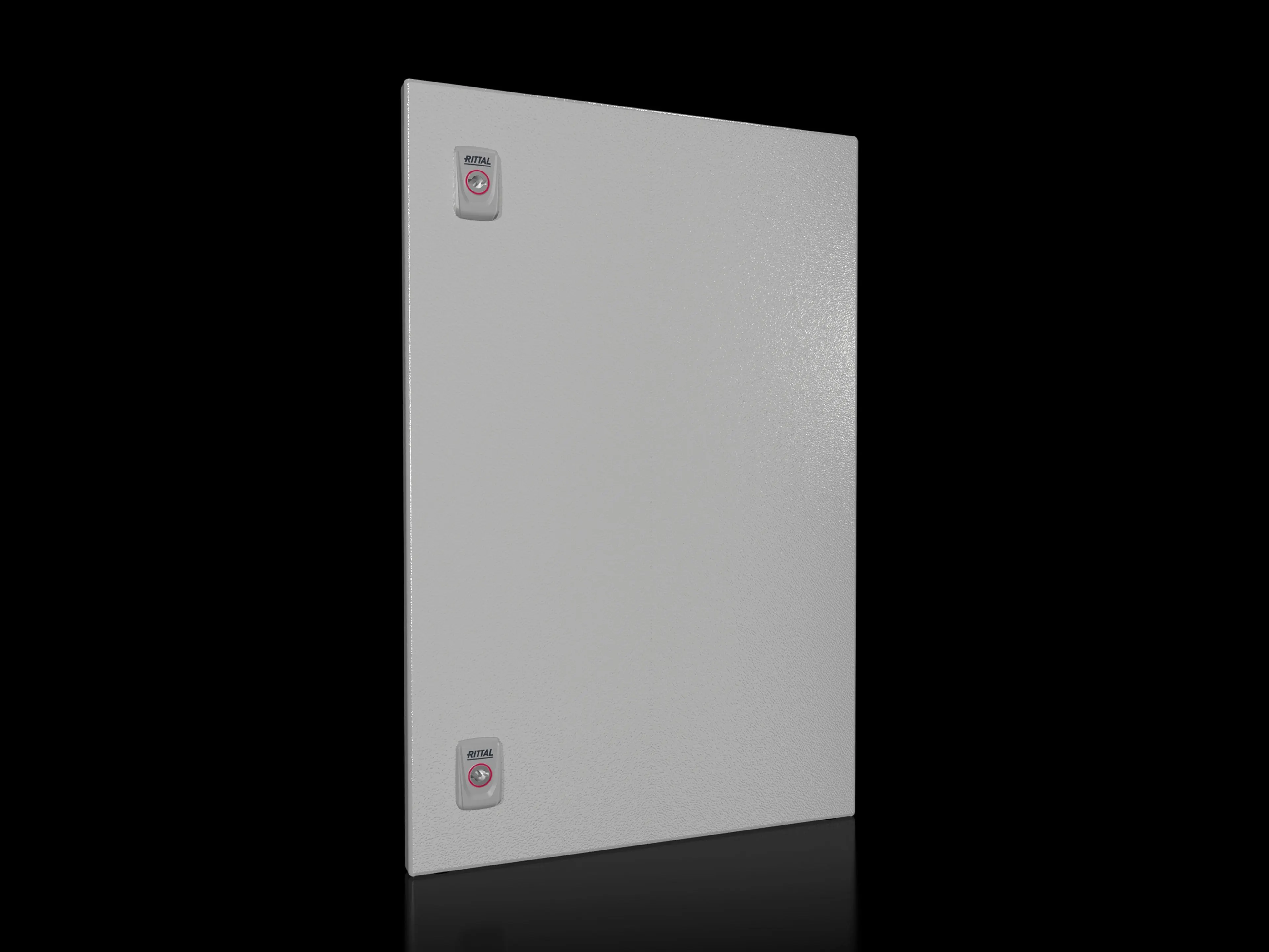

9682146 Rittal: VX Partial door, WH: 400x600 mm sheet steel
Article number
SV 9682.146
Product description
Suitable for VX enclosures instead of a door or rear panel. The partial doors may be combined with one another as required. A trim panel is required at the top and bottom in each case. Door may be optionally hinged on the right or left. In the case of doors without viewing panel (height 600 – 1000 mm), monitor frame 2305.000 may be installed. Standard double-bit lock insert may be exchanged for lock inserts, type A.
Material
Sheet steel, 2 mm
Surface finish
Textured paint
Colour
RAL 7035
Supply includes
Partial door | Cross member | Hinges | Lock components | Assembly parts
Note
Opening angle of partial doors max. 130°
Lock
Number of locks: 2
Dimensions
Width: 400 mm | Height: 600 mm
To fit
Width: = 400 mm
IP protection category to IEC 60 529
IP 54
Packs of
1 pc(s).
Weight/pack
5.52 kg
PCF per pack (cradle-to-gate)
21 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177929111
ETIM 9
EC000747
ECLASS 8.0
27182204
Product description
VX Partial door, WH: 400x600 mm sheet steel
Feature: VX Partial Door provides right or left hinge options and a 400x600 mm footprint. Business Impact: Enables rapid reconfiguration of control cabinets without custom fabrication, reducing downtime and field labor. Application: Large-scale VX enclosure installations where modular front access is critical. Feature: Sheet steel, 2 mm thick with textured paint and RAL 7035 color. Business Impact: Delivers durable, corrosion-resistant fronts with consistent aesthetics across facilities, lowering repaint costs and maintenance cycles. Application: Harsh manufacturing environments requiring robust enclosure fronts. Feature: IP 54 protection and a two-lock security system. Business Impact: Improves protection against dust and splash while enhancing cabinet security, supporting compliance in sensitive process areas. Application: Electrical infrastructure in production lines with outdoor or semi-exposed installations. Feature: Includes partial door, cross member, hinges, lock components, and assembly parts. Business Impact: Streamlines procurement and reduces SKU fragmentation, accelerating project timelines. Application: Retrofit projects and new builds needing complete front-access solutions. Feature: Compatibility with trim panels, top and bottom, and monitor frame 2305.000 for height-adjusted installations. Business Impact: Simplifies integration with existing VX modules, reducing install risk and inventory diversity. Application: Systems that require precise front-end alignment and monitoring capabilities. Feature: Weight 5.52 kg per pack, 1 piece per pack, with PCF 21 kg CO2 eq (Cat B). Business Impact: Predictable shipping weight and lower environmental footprint for green manufacturing programs. Application: Sustainable cabinet programs and regulated procurement environments.
