Rittal SV 9682.152 VX Partial Door - IP 54 for VX
Part Number: 9682152
Manufacturer
Rittal
Part number
9682152
Alt Part Number
SV 9682.152
Quick Summary
Rittal SV 9682.152 VX Partial Door provides flexible front access for VX enclosures in control panels. This reduces unnecessary weight and simplifies installation where partial access is all that's needed. Designed to meet IP 54 protection with CE compliance, the solution aligns with industry safety expectations and, when configured for SIL-ready applications, supports critical control reliability. Compatible with VX enclosures and standard Rittal hardware, it helps reduce inventory, streamline service life, and improve overall panel-build efficiency.
Product Information
Extended Description

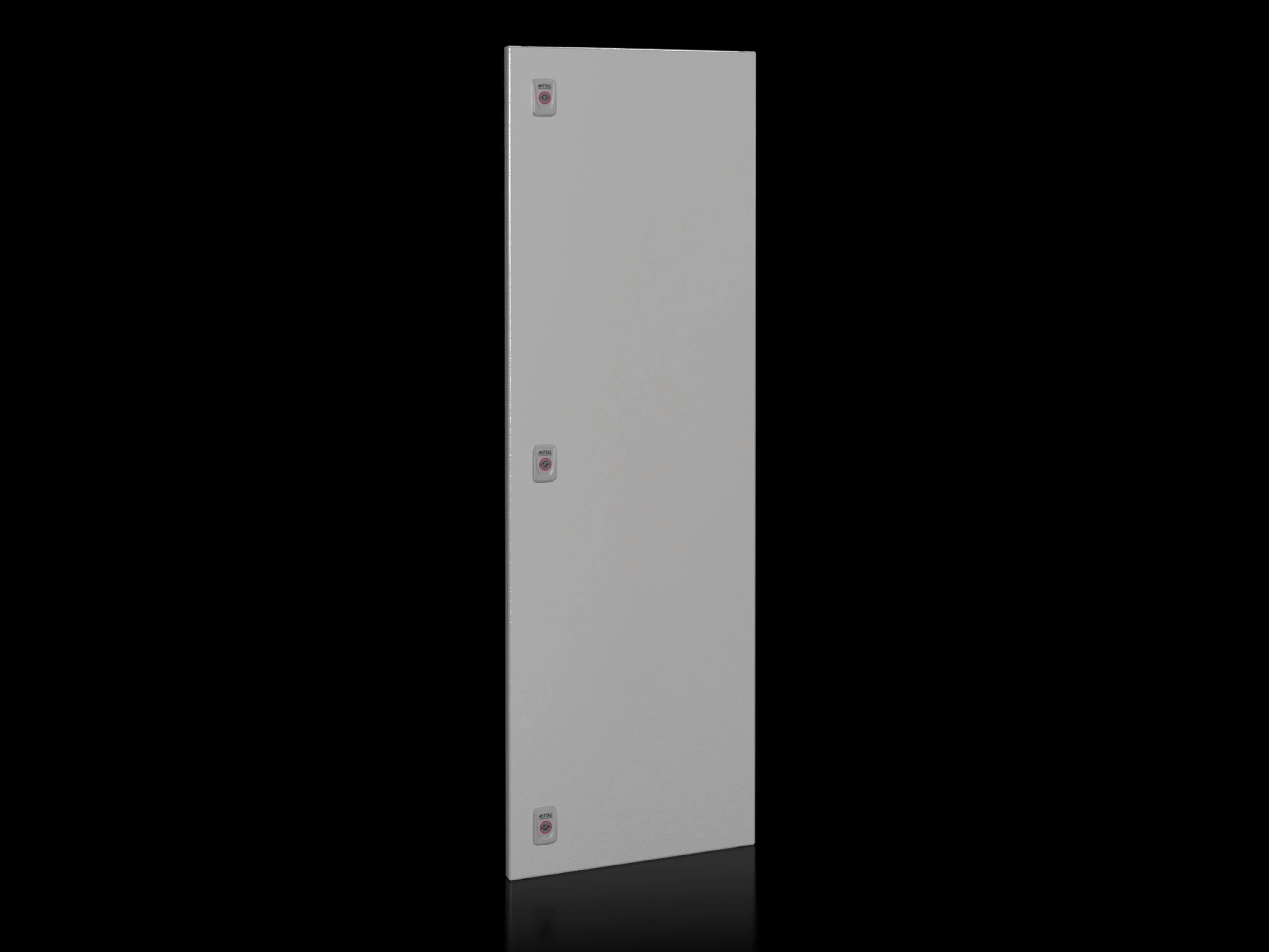

9682152 Rittal: VX Partial door, WH: 400x1200 mm sheet steel
Article number
SV 9682.152
Product description
Suitable for VX enclosures instead of a door or rear panel. The partial doors may be combined with one another as required. A trim panel is required at the top and bottom in each case. Door may be optionally hinged on the right or left. In the case of doors without viewing panel (height 600 – 1000 mm), monitor frame 2305.000 may be installed. Standard double-bit lock insert may be exchanged for lock inserts, type A.
Material
Sheet steel, 2 mm
Surface finish
Textured paint
Colour
RAL 7035
Supply includes
Partial door | Cross member | Hinges | Lock components | Assembly parts
Note
Opening angle of partial doors max. 130°
Lock
Number of locks: 3
Dimensions
Width: 400 mm | Height: 1,200 mm
To fit
Width: = 400 mm
IP protection category to IEC 60 529
IP 54
Packs of
1 pc(s).
Weight/pack
10.34 kg
PCF per pack (cradle-to-gate)
39.4 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177928893
ETIM 9
EC000747
ECLASS 8.0
27182204
Product description
VX Partial door, WH: 400x1200 mm sheet steel
Flexible mounting and hinge options allow right- or left-hinged partial doors that can be combined with one another, with an opening angle of up to 130°. Business impact: easier access for maintenance and faster component replacement in tight cabinet spaces, ideal for modular VX configurations in automation cells. Durability and protection are delivered by 2 mm sheet steel with a textured paint finish in RAL 7035, providing robust appearance and corrosion resistance in harsh environments while IP 54 rating guards against dust and splashes. This translates to lower maintenance costs and longer service intervals for critical control panels. Security and access control are enhanced by a 3-lock system with exchange options for lock inserts, offering controlled access without sacrificing convenience during routine servicing. Included hardware—cross member, hinges, lock components, and assembly parts—ensures a straightforward fit on installation days, reducing on-site engineering time. Compatibility and installation advantages are clear: width is fixed at 400 mm and height at 1,200 mm, with trim panels required at the top and bottom for a clean finish; monitor frame 2305.000 can accommodate doors without viewing panels if needed. Logistics and sustainability considerations are supported by a single-pack configuration (1 pc), with weight per pack at 10.34 kg and a cradle-to-gate PCF of 39.4 kg CO2 eq (Cat B), aiding footprint calculations for green procurement programs.
Get a Quick Quote for a Rittal 9682152
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9682152?
Enquire Now
FAQs
SV 9682.152 is designed specifically for VX enclosures, with a fixed width of 400 mm and height of 1,200 mm. It ships with a cross member, hinges, lock components, and assembly parts, ensuring a straightforward retrofit or upgrade path for existing VX cabinets. The option to hinge on either side supports flexible mounting in compact control rooms.
Key specs include 2 mm sheet steel construction with textured paint in RAL 7035, IP 54 protection, a 3-lock system, and an opening angle up to 130 degrees. The unit weighs 10.34 kg per pack and is intended for a 400 mm width and 1,200 mm height, making it a robust yet manageable enclosure front option.
The SV 9682.152 Partial Door is designed for CE compliance and IP 54 protection, aligning with European safety and environmental expectations for enclosure components. For safety-critical or SIL-related applications, configure the door within SIL-ready enclosure concepts and verify integration with your control system’s safety requirements.
Yes. Partial doors may be combined with one another as required, with top and bottom trim panels used to finish the joint. For doors without a viewing panel, a monitor frame such as 2305.000 may be installed. This enables modular expansion while preserving consistent aesthetics and protection.
Each pack includes one partial door with the necessary mounting components, matching the 400x1200 mm footprint. The weight is 10.34 kg per pack, and the product has a PCF of 39.4 kg CO2 eq (Cat B). The EAN is 4028177928893, and the customs tariff is 94039910, supporting accurate pricing, compliance, and sustainability reporting.
