Rittal 9682156 VX Partial Door for VX Enclosures IP54
Part Number: 9682156
Manufacturer
Rittal
Part number
9682156
Alt Part Number
SV 9682.156
Quick Summary
Rittal 9682156 VX Partial Door provides flexible access for VX enclosure systems in control panels. When full door removal isn’t feasible or cost-effective, this partial door reduces operating time and maintenance while preserving security. It carries IP54 protection and aligns with ETIM 9 and ECLASS 8.0 classifications for standardized procurement, ensuring compatibility across supplier ecosystems. This solution supports scalable configurations and faster assembly, delivering measurable business value such as reduced downtime, safer access, and lower total cost of ownership. Use cases include modular switchgear, automation panels, and confined-space electrical infrastructure where selective access is critical.
Product Information
Extended Description

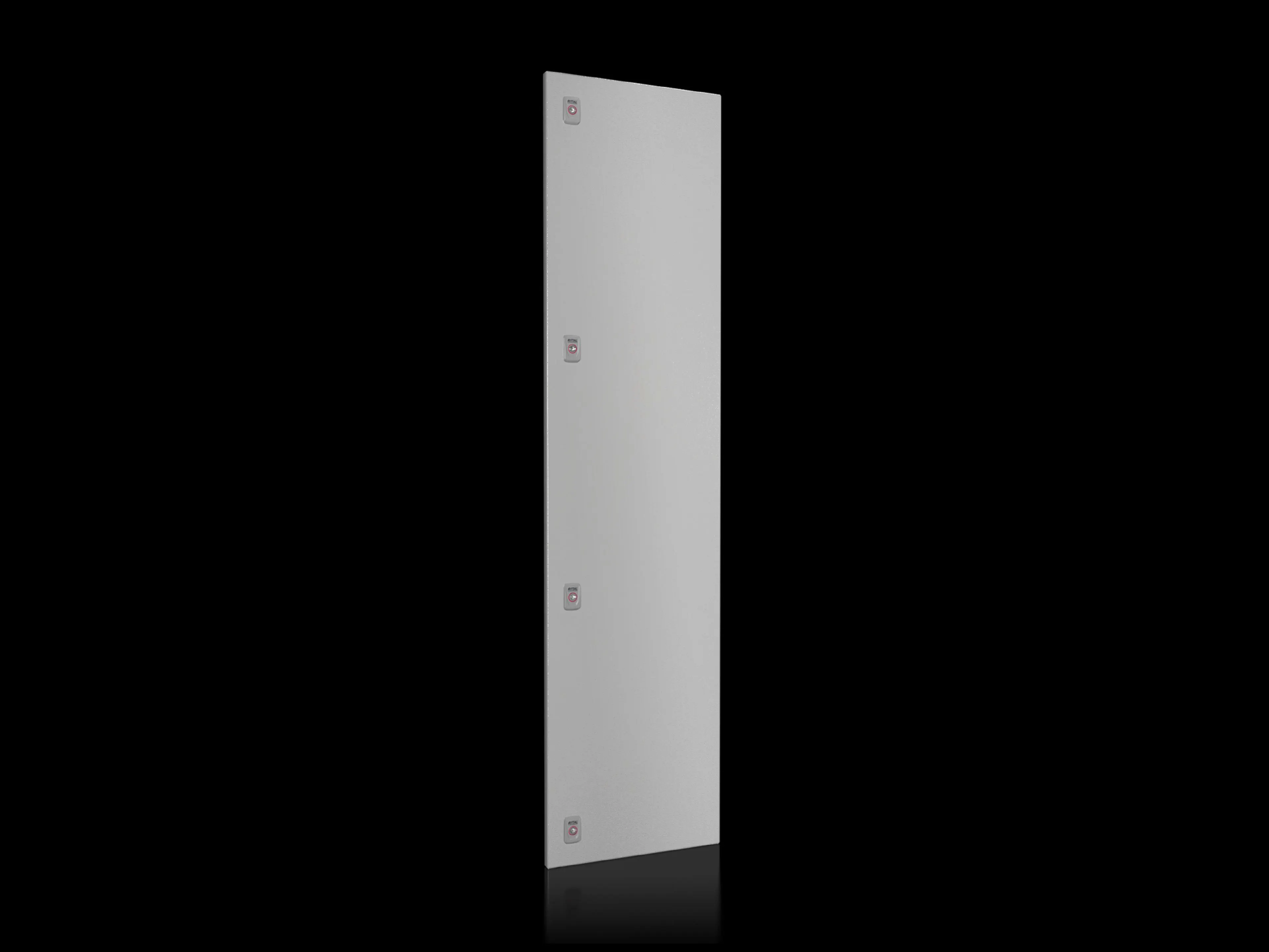

9682156 Rittal: VX Partial door, WH: 400x1600 mm sheet steel
Article number
SV 9682.156
Product description
Suitable for VX enclosures instead of a door or rear panel. The partial doors may be combined with one another as required. A trim panel is required at the top and bottom in each case. Door may be optionally hinged on the right or left. In the case of doors without viewing panel (height 600 – 1000 mm), monitor frame 2305.000 may be installed. Standard double-bit lock insert may be exchanged for lock inserts, type A.
Material
Sheet steel, 2 mm
Surface finish
Textured paint
Colour
RAL 7035
Supply includes
Partial door | Cross member | Hinges | Lock components | Assembly parts
Note
Opening angle of partial doors max. 130°
Lock
Number of locks: 4
Dimensions
Width: 400 mm | Height: 1,600 mm
To fit
Width: = 400 mm
IP protection category to IEC 60 529
IP 54
Packs of
1 pc(s).
Weight/pack
13.2 kg
PCF per pack (cradle-to-gate)
50.3 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177928855
ETIM 9
EC000747
ECLASS 8.0
27182204
Product description
VX Partial door, WH: 400x1600 mm sheet steel
Feature: 2 mm sheet steel construction with textured paint in RAL 7035; Business Impact: robust, corrosion-resistant enclosure surface and uniform appearance across installations; Application: VX enclosures in industrial facilities require durable exterior finishes and color-coding for standardization. Feature: Width 400 mm x Height 1600 mm; Business Impact: precise fit within VX frames enables modular configurations without custom fabrication; Application: cabinet door replacements or partial-door retrofits in existing systems. Feature: Supplied with partial door, cross member, hinges, lock components, and assembly parts; Business Impact: reduces field sourcing and assembly time, accelerating project timelines; Application: quick retrofit or upgrade in control panels. Feature: Opening angle up to 130°; Business Impact: improved accessibility without compromising enclosure integrity; Application: maintenance and inspection tasks in tight space. Feature: IP 54 protection; Business Impact: reliable protection against dust and splashes in industrial environments; Application: outdoor or semi-exposed installations. Feature: Lock system with four locks; Business Impact: enhanced security and controlled access for sensitive equipment; Application: critical control panels and distribution cabinets. Feature: To fit VX widths of 400 mm; Business Impact: seamless compatibility with standard VX frames; Application: scalable enclosure architecture. Feature: Material and finish specification (2 mm sheet steel, textured paint, RAL 7035); Business Impact: long-term durability and consistent color mapping across facilities; Application: enterprise-wide deployment.
Get a Quick Quote for a Rittal 9682156
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9682156?
Enquire Now
FAQs
The VX Partial Door is designed to fit VX enclosure widths of 400 mm and heights up to 1,600 mm. Installation includes the cross member, hinges, lock components, and assembly parts, enabling straightforward mounting to VX frames. When combined with the top and bottom trim panels, it maintains a secure enclosure while offering configurable access options for maintenance tasks.
Key specs include a 2 mm sheet steel construction with textured paint finish in RAL 7035, dimensions 400 mm by 1,600 mm, and an IP protection rating of IP54. The door uses a four-lock system and can be hinged on either side, with an opening angle limited to 130 degrees for safe, controlled access.
Yes. The IP54 rating provides protection against dust ingress and splashing water, making it suitable for many industrial environments. The textured paint finish and stainless-like hardware are chosen to withstand typical factory conditions, while the option to configure hinge side and lock inserts supports diverse installation scenarios.
The door aligns with ETIM 9 EC000747 and ECLASS 8.0 27182204 classifications, ensuring consistent data handling in ERP and procurement systems. It also implements a robust IP54 protection standard, which is critical for reliability and compliance in many regulatory contexts.
By enabling selective access instead of full-door removal, the partial door reduces maintenance downtime and simplifies access for routine checks. Standardized components (lock system, hinges, cross member) minimize field sourcing, accelerate installation, and lower lifecycle costs through improved reliability and easier upgrades within VX-based infrastructures.
