Rittal 9682158 VX Partial Door - IP54 Enclosure Accessory
Part Number: 9682158
Manufacturer
Rittal
Part number
9682158
Alt Part Number
SV 9682.158
Quick Summary
Rittal VX Partial Door is a versatile enclosure door solution for VX enclosures, enabling secure access in control cabinets. Many engineers need flexible access for servicing while preserving IP protection and panel integrity in tight installations. The door carries IP54 protection per IEC 60529 and uses 2 mm sheet steel with textured paint in RAL 7035, with compatibility to standard locks and accessories. This combination delivers faster maintenance, safer access, and cost-effective integration into existing VX infrastructure for reliable, scalable automation cabinet design.
Product Information
Extended Description

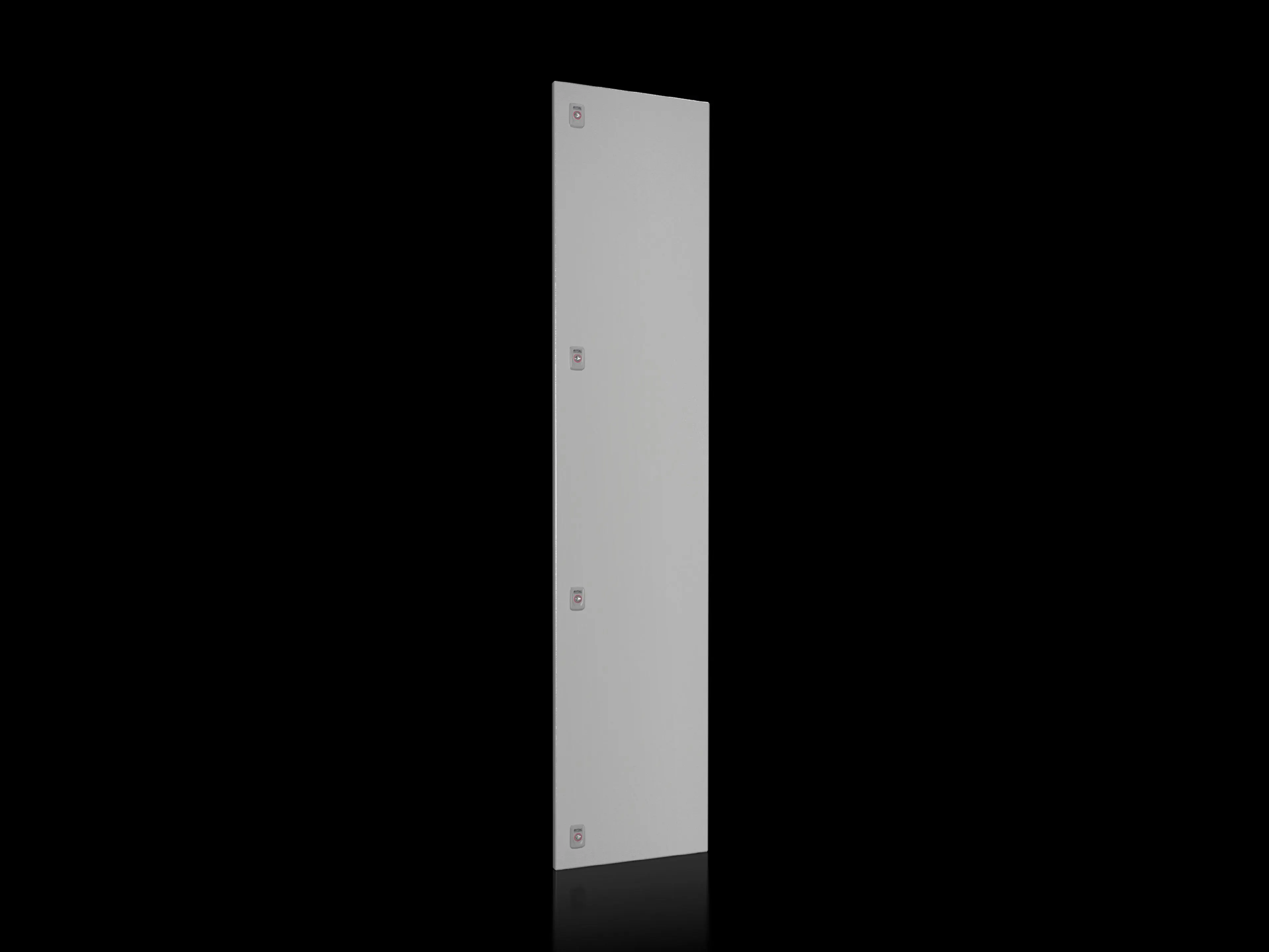

9682158 Rittal: VX Partial door, WH: 400x1800 mm sheet steel
Article number
SV 9682.158
Product description
Suitable for VX enclosures instead of a door or rear panel. The partial doors may be combined with one another as required. A trim panel is required at the top and bottom in each case. Door may be optionally hinged on the right or left. In the case of doors without viewing panel (height 600 – 1000 mm), monitor frame 2305.000 may be installed. Standard double-bit lock insert may be exchanged for lock inserts, type A.
Material
Sheet steel, 2 mm
Surface finish
Textured paint
Colour
RAL 7035
Supply includes
Partial door | Cross member | Hinges | Lock components | Assembly parts
Note
Opening angle of partial doors max. 130°
Lock
Number of locks: 4
Dimensions
Width: 400 mm | Height: 1,800 mm
To fit
Width: = 400 mm
IP protection category to IEC 60 529
IP 54
Packs of
1 pc(s).
Weight/pack
14.5 kg
PCF per pack (cradle-to-gate)
55.2 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177928947
ETIM 9
EC000747
ECLASS 8.0
27182204
Product description
VX Partial door, WH: 400x1800 mm sheet steel
Durable 2 mm sheet steel construction with textured paint provides long-term protection against corrosion and impact in harsh industrial environments, reducing maintenance costs and downtime. The IP54 rating ensures reliable ingress protection while the door remains easy to clean and service. The option to hinge on the right or left improves installation flexibility, especially in confined layouts. A max opening angle of 130° supports quick access for technicians and efficient cable routing during service. At 400x1800 mm, it matches VX enclosure footprints precisely, and the 14.5 kg weight per pack enables straightforward handling and mounting with common hardware. The supply includes all necessary hardware (cross member, hinges, lock components, assembly parts) for fast field assembly. With four locks and a secure 4-point latch, security is enhanced while enabling standard lock inserts if needed. PCF is 55.2 kg CO2 eq (Cat B), supporting sustainability goals.
Get a Quick Quote for a Rittal 9682158
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9682158?
Enquire Now
FAQs
Installation uses the included cross member, hinges, and lock components. The door is reversible for right- or left-hinged mounting, and a top and bottom trim panel is required. With a width of 400 mm and height of 1800 mm, mounting follows standard VX enclosure patterns for quick, reliable field setup.
Key specs include dimensions 400x1800 mm, material 2 mm sheet steel, textured paint finish, color RAL 7035, IP54 protection, weight 14.5 kg per pack, and four locks. It fits VX enclosures with a 400 mm width and supports opening angles up to 130 degrees.
Yes. The door may be hinged on either the right or the left side, allowing installation flexibility in constrained spaces and aligning with existing cabinet layouts. Hinges are included in the supply along with other mounting hardware for a straightforward retrofit.
The door carries IP54 protection under IEC 60529. It is referenced in ETIM 9 with EC000747 and ECLASS 8.0 code 27182204 for procurement systems, and it bears the EAN 4028177928947 for traceability and cataloging.
Each pack weighs 14.5 kg and contains all mounting components; PCF is 55.2 kg CO2 eq (Cat B) cradle-to-gate, reflecting a moderate footprint for steel doors. A single, reusable door reduces replacement frequency and supports modular upgrades, delivering lower lifecycle costs and improved maintenance efficiency.
