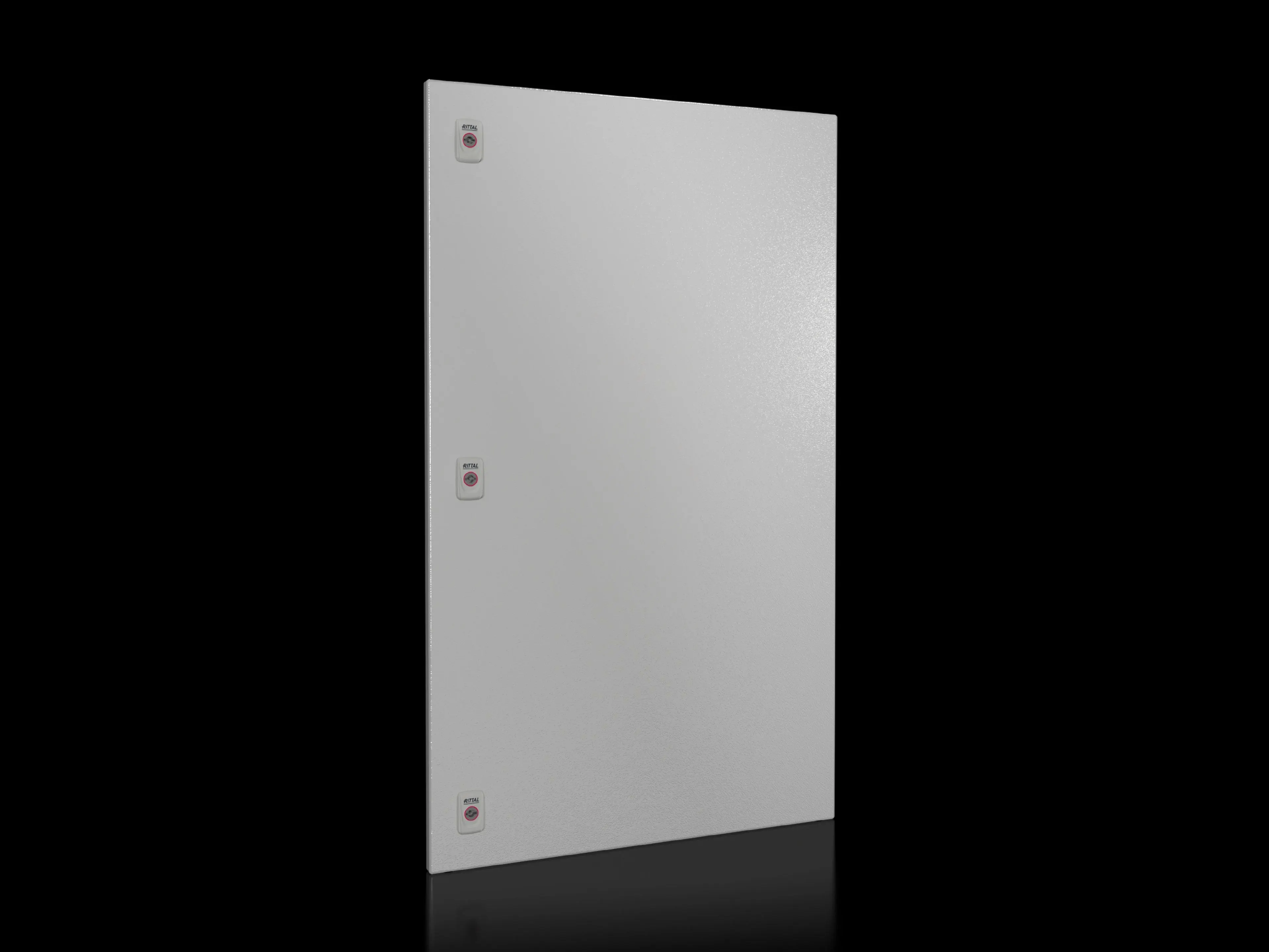

Rittal 9682160 VX Partial Door for Enclosures - IP54
Part Number: 9682160
Manufacturer
Rittal
Part number
9682160
Alt Part Number
SV 9682.160
Quick Summary
Rittal VX Partial Door provides flexible access for VX enclosure systems used in industrial control panels. This accessory addresses common challenges engineers face when configuring doors, such as hinge placement, top and bottom trim requirements, and field-adjustments during commissioning. The component carries IP54 protection, a 2 mm sheet steel construction, and a textured RAL 7035 finish, ensuring durability in harsh environments. It supports right or left hinge alignment for streamlined installation and can be paired with additional partial doors to tailor opening widths. With three locking devices and compatibility with standard lock inserts, it delivers secure access control while maintaining serviceability. For project batching and maintenance cycles, this accessory reduces on-site customization and simplifies warranty compliance.
Product Information
Extended Description
9682160 Rittal: VX Partial door, WH: 600x1000 mm sheet steel
Article number
SV 9682.160
Product description
Suitable for VX enclosures instead of a door or rear panel. The partial doors may be combined with one another as required. A trim panel is required at the top and bottom in each case. Door may be optionally hinged on the right or left. In the case of doors without viewing panel (height 600 – 1000 mm), monitor frame 2305.000 may be installed. Standard double-bit lock insert may be exchanged for lock inserts, type A.
Material
Sheet steel, 2 mm
Surface finish
Textured paint
Colour
RAL 7035
Supply includes
Partial door | Cross member | Hinges | Lock components | Assembly parts
Note
Opening angle of partial doors max. 130°
Lock
Number of locks: 3
Dimensions
Width: 600 mm | Height: 1,000 mm
To fit
Width: = 600 mm
IP protection category to IEC 60 529
IP 54
Packs of
1 pc(s).
Weight/pack
14.14 kg
PCF per pack (cradle-to-gate)
53.9 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177929074
ETIM 9
EC000747
ECLASS 8.0
27182204
Product description
VX Partial door, WH: 600x1000 mm sheet steel
VX Partial Door uses a 600x1000 mm WH footprint and a 2 mm sheet steel body finished in textured paint for rugged durability. This combination provides robust protection against dust and splashes while maintaining smooth operation in demanding environments, reducing downtime and maintenance costs for electrical cabinets. The door is designed to fit VX enclosures and easily integrates into existing layouts, enabling faster deployment across multiple panels and lines. Hinges can be mounted on either the right or left side, offering installation flexibility that saves time during on-site commissioning and minimizes layout rework. A three-lock system, compatible with standard lock inserts type A, enhances security without sacrificing accessibility. Multiple partial doors can be combined to create custom opening configurations, while top and bottom trim panels ensure a clean, professional finish.
Get a Quick Quote for a Rittal 9682160
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9682160?
Enquire Now
FAQs
The package includes a cross member, hinges, lock components, and assembly parts. The door fits a 600 mm width VX enclosure and can be hinged on either the right or left side. Top and bottom trim panels are required for each installation, and you can pair multiple partial doors to achieve your desired opening width. For mounting, align the hinge hardware with existing frame points and secure the lock assembly per the included instructions.
The door is designed for a width of 600 mm and height of 1,000 mm. It uses 2 mm sheet steel and features a textured paint finish in RAL 7035. The IP protection rating is IP54, suitable for dust and splash resistance in typical industrial environments. Weight per pack is 14.14 kg, and each pack contains 1 unit with components for installation.
Yes. The VX Partial Door is built with 2 mm sheet steel and texturized paint, combined with an IP54 rating, providing protection against dust ingress and splashes. This makes it well-suited for factory floors, control cabinet rooms, and other demanding settings typical in automation and electrical infrastructure projects.
The door ships with a three-lock system and lock components, and the standard double-bit lock insert can be exchanged for lock inserts of type A. This delivers enhanced security while preserving ease of access during routine maintenance and servicing of VX enclosures.
Ensure the enclosure width is 600 mm to match the door. If the door height is within 600–1000 mm, you may install monitor frame 2305.000 where a viewing panel is not present. The door can be combined with other partial doors to tailor openings; top and bottom trim panels are required for a clean finish, and the included cross member, hinges, and assembly parts simplify installation.
