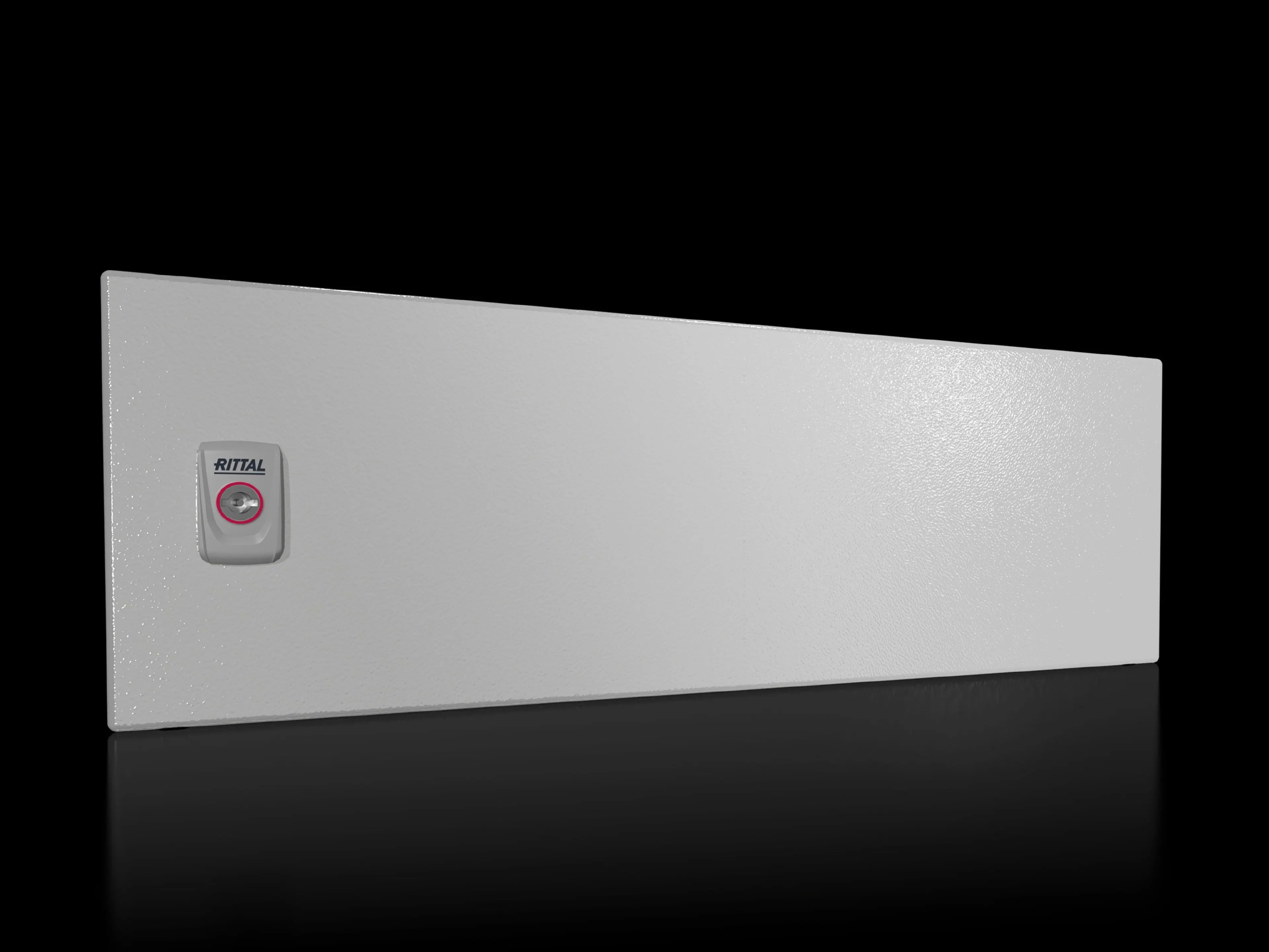

Rittal SV 9682.162 VX Partial Door - IP 54
Part Number: 9682162
Manufacturer
Rittal
Part number
9682162
Alt Part Number
SV 9682.162
Quick Summary
Rittal SV 9682.162 VX Partial Door is a flexible access option for VX cabinets, enabling precise openings without committing to a full door. In tight industrial spaces, installers struggle with fitting doors while preserving service access; this partial door adapts to 600 mm wide enclosures and supports left or right hinge configurations. The solution delivers IP54 protection with durable 2 mm sheet steel and a textured finish in RAL 7035, designed for demanding environments. It aligns with ETIM EC000747 and ECLASS 8.0 27182204 data standards, helping procurement and maintenance teams verify compatibility. By modularizing access, it reduces spare parts and installation time while improving ongoing maintenance workflows and safety.
Product Information
Extended Description
9682162 Rittal: VX Partial door, WH: 600x200 mm sheet steel
Article number
SV 9682.162
Product description
Suitable for VX enclosures instead of a door or rear panel. The partial doors may be combined with one another as required. A trim panel is required at the top and bottom in each case. Door may be optionally hinged on the right or left. In the case of doors without viewing panel (height 600 – 1000 mm), monitor frame 2305.000 may be installed. Standard double-bit lock insert may be exchanged for lock inserts, type A.
Material
Sheet steel, 2 mm
Surface finish
Textured paint
Colour
RAL 7035
Supply includes
Partial door | Cross member | Hinges | Lock components | Assembly parts
Note
Opening angle of partial doors max. 130°
Lock
Number of locks: 1
Dimensions
Width: 600 mm | Height: 200 mm
To fit
Width: = 600 mm
IP protection category to IEC 60 529
IP 54
Packs of
1 pc(s).
Weight/pack
3.52 kg
PCF per pack (cradle-to-gate)
13.4 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177929081
ETIM 9
EC000747
ECLASS 8.0
27182204
Product description
VX Partial door, WH: 600x200 mm sheet steel
Rittal’s SV 9682.162 VX Partial Door is purpose-built for VX enclosures, enabling selective access without replacing a full door. This modular approach minimizes spare-part inventory and reduces total cost of ownership by letting you mix partial doors as needed. Application: ideal for panel maintenance in compact control cabinets and evolving layouts where access must be staged and controlled. Feature: Hinge options; Impact: installation flexibility; Application: left or right orientation to suit mounting constraints. Feature: IP54 rating and 2 mm sheet steel construction; Impact: rugged protection against dust and limited water ingress in harsh environments; Application: outdoor plants or dirty indoor facilities. Feature: Includes cross member, hinges, lock components; Impact: simplifies procurement and on-site assembly; Application: faster commissioning and standardized parts. Feature: Dimensions 600x200 mm; Weight per pack 3.52 kg; PCF 13.4 kg CO2 eq; Impact: predictable logistics and lower environmental footprint; Application: scalable inventory across multiple enclosures. Addressing common concerns: for doors without viewing panels (height 600–1000 mm), monitor frame 2305.000 may be installed.
Get a Quick Quote for a Rittal 9682162
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9682162?
Enquire Now
FAQs
The SV 9682.162 is designed specifically for VX enclosures and ships with a cross member, hinges, lock components, and assembly parts. It supports both left and right hinge orientations, allowing installers to tailor access to the cabinet configuration and door swing requirements. Typical installations align with the enclosure width of 600 mm and use the supplied trim panels at the top and bottom for a clean finish.
Key specs include a width of 600 mm and height of 200 mm, a 2 mm sheet steel construction, and a textured paint finish in RAL 7035. The door carries IP54 protection, comes in a pack of 1, and weighs 3.52 kg per pack. It is suitable for VX enclosures and accommodates standard locking with the option to swap the lock insert type A.
Yes. For doors without a viewing panel (height 600–1000 mm), monitor frame 2305.000 may be installed to support display or monitoring needs. This expands integration options for control cabinets requiring monitoring or visualization without a full door replacement.
Using a partial door reduces spare-part inventory and lowers upfront costs by avoiding a full-door replacement. The left/right hinge flexibility speeds installation, and modular assembly simplifies future maintenance. In turn, this can shorten downtime during panel access, improve serviceability, and reduce total cost of ownership for VX enclosure deployments.
Each pack has a PCF (cradle-to-gate) value of 13.4 kg CO2 eq (Category B). This reflects the weight and material usage of the 2 mm sheet steel door plus included hardware, informing sustainability considerations for enclosure fleets and procurement routines.
