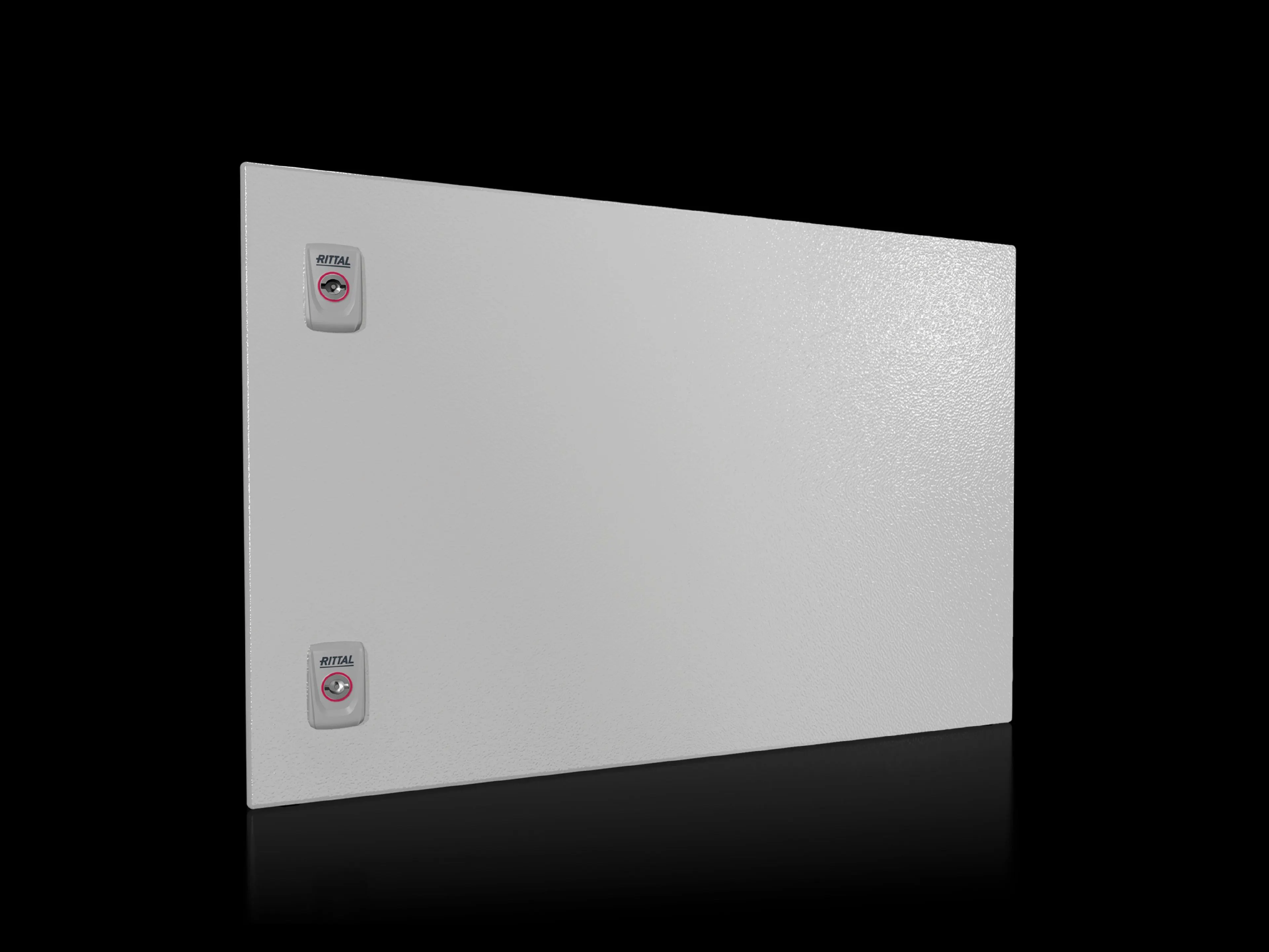

Rittal 9682164 VX Partial door - IP 54
Part Number: 9682164
Manufacturer
Rittal
Part number
9682164
Alt Part Number
SV 9682.164
Quick Summary
Rittal 9682164 VX Partial door provides flexible enclosure access for VX cabinets. This modular door option enables targeted maintenance without removing full rear panels, cutting service time in busy control rooms. Many engineers struggle with rigid door configurations that hinder airflow and complicate layout planning; this solution offers right- or left-hinged installation and a 130° opening to fit tight spaces. The IP 54 rating protects against dust and splashes, while a 2 mm sheet-steel shell with textured RAL 7035 finish ensures durability in demanding environments. Supplied with hinges, lock components, and assembly parts, it supports scalable VX enclosures and reduces installation complexity, delivering measurable gains in uptime, safety, and total-cost-of-ownership.
Product Information
Extended Description
9682164 Rittal: VX Partial door, WH: 600x400 mm sheet steel
Article number
SV 9682.164
Product description
Suitable for VX enclosures instead of a door or rear panel. The partial doors may be combined with one another as required. A trim panel is required at the top and bottom in each case. Door may be optionally hinged on the right or left. In the case of doors without viewing panel (height 600 – 1000 mm), monitor frame 2305.000 may be installed. Standard double-bit lock insert may be exchanged for lock inserts, type A.
Material
Sheet steel, 2 mm
Surface finish
Textured paint
Colour
RAL 7035
Supply includes
Partial door | Cross member | Hinges | Lock components | Assembly parts
Note
Opening angle of partial doors max. 130°
Lock
Number of locks: 2
Dimensions
Width: 600 mm | Height: 400 mm
To fit
Width: = 600 mm
IP protection category to IEC 60 529
IP 54
Packs of
1 pc(s).
Weight/pack
5.7 kg
PCF per pack (cradle-to-gate)
21.7 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177929104
ETIM 9
EC000747
ECLASS 8.0
27182204
Product description
VX Partial door, WH: 600x400 mm sheet steel
Feature: VX Partial door sized 600x400 mm for VX enclosures. This modular design enables targeted access, reducing maintenance time in space-constrained panels. Application: Ideal for compact automation cabinets where rear access is limited.Feature: 2 mm sheet steel construction with a textured RAL 7035 finish. This durable shell resists dents and wear, extending enclosure life in harsh environments. Application: Suitable for light-industrial and automation settings where cabinet doors endure frequent opening and closing.Feature: IP protection IP 54. This level of protection guards against dust ingress and splashes, helping to protect sensitive components inside from typical factory exposure. Application: Enclosures installed on production floors or outdoor-adjacent lines where moisture and dust are concerns.Feature: Hinges configurable to right or left; opening angle up to 130 degrees. This arrangement supports installation flexibility in tight spaces and simplifies integration with adjacent equipment. Application: Retrofit projects or new builds where door clearance and ergonomics must be optimized.Feature: Supplied components include partial door, cross member, hinges, lock components, and assembly parts; two locks for security. This comprehensive package minimizes on-site shopping and speeds commissioning. Application: Quick deployment across multiple VX enclosures with consistent security standards.Feature: Fitting to VX enclosure width 600 mm and compatibility with combining multiple partial doors; top and bottom trim panels required. Weight per pack 5.7 kg; PCF per pack 21.7 kg CO2 eq (Cat B). Application: Scalable modularity for growing control systems while managing lifecycle footprint.
Get a Quick Quote for a Rittal 9682164
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9682164?
Enquire Now
FAQs
Yes. The 9682164 VX Partial door is designed for VX enclosures with a 600 mm width and can be combined with other partial doors to form modular configurations. Top and bottom trim panels are required for a clean finish, and the door can be mounted on either the right or left side to suit installation geometry. This enables scalable enclosure layouts without replacing existing modules.
The door uses 2 mm sheet steel with a textured paint finish in RAL 7035 for durability. It carries an IP54 rating, protecting internal components from dust and splashes in typical industrial environments. The dimensions are 600 mm wide by 400 mm high, and it weighs 5.7 kg per pack, with two locking points for security.
This partial door excels in automation control panels and VX enclosure networks where service access must be minimized yet rapid maintenance is essential. It supports tight layouts thanks to a 130° opening angle, improves airflow management, and reduces downtime during routine inspections or component upgrades.
The VX Partial door adheres to IP 54 protection per IEC standards, safeguarding against dust ingress and splashes. It also aligns with Rittal’s documented product specifications, including the two-lock security setup and the option to upgrade lock inserts. While CE and other certifications are not explicitly listed here, the IP rating clearly supports industrial use.
The package includes partial door, cross member, hinges, lock components, and assembly parts, enabling fast, on-site installation. With a 5.7 kg weight per pack and PCF of 21.7 kg CO2 eq (Cat B), the door offers a lightweight, lower-embodied-carbon option that reduces logistics and lifecycle costs while improving uptime and maintenance efficiency.
