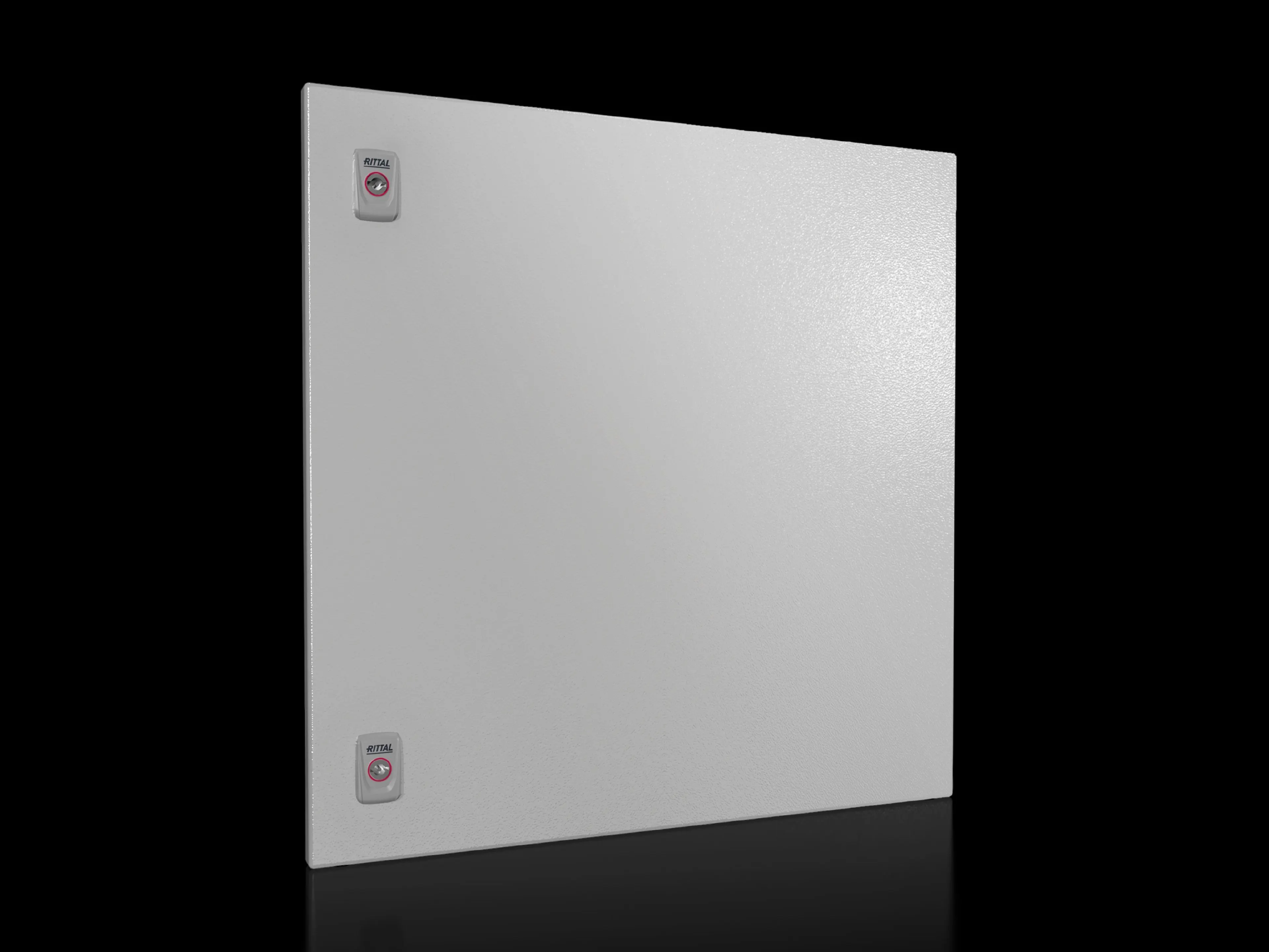

Rittal 9682166 VX Partial Door for Enclosures - IP54
Part Number: 9682166
Manufacturer
Rittal
Part number
9682166
Alt Part Number
SV 9682.166
Quick Summary
Rittal 9682166 VX Partial Door is a compact add-on that provides selective access for VX enclosures. Engineers and technicians often face retrofit challenges; this partial door enables targeted access without major cabinet redesigns. It carries IP54 protection and is aligned with ETIM EC000747 and ECLASS 27182204 classifications, supporting procurement and compliance. Constructed from 2 mm sheet steel with textured RAL 7035 finish, it withstands industrial environments while offering flexible left or right hinge installation. With two locks and included mounting hardware, the solution reduces installation time, simplifies maintenance, and improves security across VX installations. The option to pair multiple partial doors and to install a monitor frame for certain heights expands configurability for diverse control rooms and production lines.
Product Information
Extended Description
9682166 Rittal: VX Partial door, WH: 600x600 mm sheet steel
Article number
SV 9682.166
Product description
Suitable for VX enclosures instead of a door or rear panel. The partial doors may be combined with one another as required. A trim panel is required at the top and bottom in each case. Door may be optionally hinged on the right or left. In the case of doors without viewing panel (height 600 – 1000 mm), monitor frame 2305.000 may be installed. Standard double-bit lock insert may be exchanged for lock inserts, type A.
Material
Sheet steel, 2 mm
Surface finish
Textured paint
Colour
RAL 7035
Supply includes
Partial door | Cross member | Hinges | Lock components | Assembly parts
Note
Opening angle of partial doors max. 130°
Lock
Number of locks: 2
Dimensions
Width: 600 mm | Height: 600 mm
To fit
Width: = 600 mm
IP protection category to IEC 60 529
IP 54
Packs of
1 pc(s).
Weight/pack
7.7 kg
PCF per pack (cradle-to-gate)
29.3 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177928961
ETIM 9
EC000747
ECLASS 8.0
27182204
Product description
VX Partial door, WH: 600x600 mm sheet steel
Feature: VX partial door design enables modular access for VX enclosures. Impact: This reduces retrofit downtime and material waste by avoiding full-door replacements. Application: Compatible with 600x600 mm VX bays and can be combined with other partial doors, using required top and bottom trim panels. Feature: Door can be hinged on the right or left. Impact: Improves installation flexibility and service access in constrained cabinets. Application: Suitable for doors without viewing panels where a monitor frame 2305.000 may be installed. Feature: Construction uses 2 mm sheet steel with a textured paint finish in RAL 7035. Impact: Delivers robust protection against corrosion and wear in harsh environments. Application: Standard finish supports long service life across industrial facilities. Feature: IP54 protection rating. Impact: Ensures protection against dust and splashes for critical controls. Application: Fits VX enclosures with 600x600 footprint in production and plant environments. Feature: Supplied with two locks, hinges, cross member, and assembly parts. Impact: Strengthens access control and simplifies on-site assembly, reducing downtime. Application: Comes as a complete kit for 600x600 width, enabling quick retrofit. Feature: Compliance and compatibility. Impact: Streamlines procurement with standardized codes and included components. Application: Supports traceability via article number SV 9682.166, customs code 94039910, ETIM EC000747, and ECLASS 27182204.
Get a Quick Quote for a Rittal 9682166
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9682166?
Enquire Now
FAQs
Installation involves aligning the 600x600 mm door to the VX bay and securing it with the supplied cross member, hinges, and lock components. The door supports left or right hinges and requires top and bottom trim panels for proper fitment. It is compatible with doors that may use the monitor frame 2305.000 if a viewing panel is not present. Weight per pack is 7.7 kg and packaging is 1 piece per pack, simplifying inventory and handling.
Key specs include material: 2 mm sheet steel; surface finish: textured paint; colour: RAL 7035; dimensions: width 600 mm x height 600 mm; IP rating: IP54; locks: 2; opening angle: up to 130 degrees; weight per pack: 7.7 kg; EAN: 4028177928961; article SV 9682.166. It is designed to fit VX enclosures and includes necessary mounting hardware.
Yes, the door is rated IP54, providing resistance to dust and splashes typical in industrial settings. It aligns with ETIM EC000747 and ECLASS 27182204 classifications, which supports standardized procurement. The product also carries the 94039910 customs tariff code for logistics and compliance in global supply chains.
Yes. The VX partial doors are designed to be combined with one another as required, and each kit includes a partial door, cross member, hinges, lock components, and assembly parts. For doors without viewing panels, a monitor frame 2305.000 may be installed. This enables scalable access configurations without rebuilding cabinets.
The VX Partial Door reduces downtime during upgrades by enabling selective access rather than full-door replacement, lowers field labor through included hardware, and extends cabinet life with a durable 2 mm steel shell and textured coating. Two locks improve security, and compatibility with VX components supports streamlined procurement and predictable lifecycle costs.
