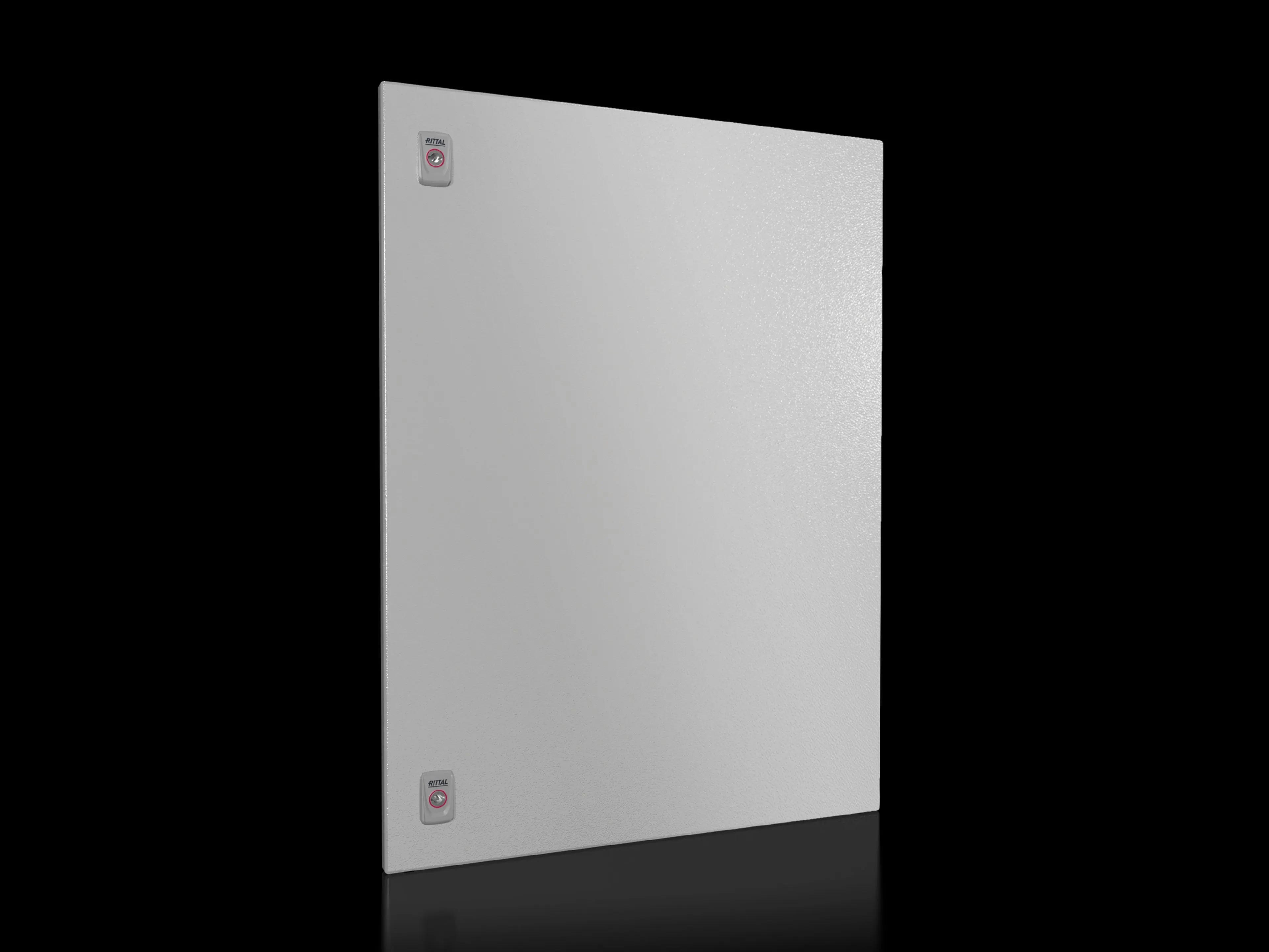

Rittal 9682168 VX Partial Door - IP54 Enclosure Access
Part Number: 9682168
Manufacturer
Rittal
Part number
9682168
Alt Part Number
SV 9682.168
Quick Summary
Rittal 9682168 VX door provides configurable partial enclosure access for VX cabinets in industrial settings. This design addresses common pain points like limited service access and downtime when full doors are used. Key protections include IP54 rating (IEC 60529), robust 2 mm sheet steel construction, and a textured RAL 7035 finish that withstands harsh factory environments. Hinges can be mounted on the right or left, enabling flexible retrofits and quick maintenance without removing the entire door. For procurement teams, the 600x800 mm footprint and modular installation simplify stocking and VX frame integration, delivering faster deployments, predictable maintenance schedules, and lower total cost of ownership.
Product Information
Extended Description
9682168 Rittal: VX Partial door, WH: 600x800 mm sheet steel
Article number
SV 9682.168
Product description
Suitable for VX enclosures instead of a door or rear panel. The partial doors may be combined with one another as required. A trim panel is required at the top and bottom in each case. Door may be optionally hinged on the right or left. In the case of doors without viewing panel (height 600 – 1000 mm), monitor frame 2305.000 may be installed. Standard double-bit lock insert may be exchanged for lock inserts, type A.
Material
Sheet steel, 2 mm
Surface finish
Textured paint
Colour
RAL 7035
Supply includes
Partial door | Cross member | Hinges | Lock components | Assembly parts
Note
Opening angle of partial doors max. 130°
Lock
Number of locks: 2
Dimensions
Width: 600 mm | Height: 800 mm
To fit
Width: = 600 mm
IP protection category to IEC 60 529
IP 54
Packs of
1 pc(s).
Weight/pack
10.28 kg
PCF per pack (cradle-to-gate)
39.2 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177929142
ETIM 9
EC000747
ECLASS 8.0
27182204
Product description
VX Partial door, WH: 600x800 mm sheet steel
The VX Partial door provides selective access to VX enclosures, reducing downtime and shielding most of the interior from dust and disturbances, improving reliability. It is ideal for high-use panels where technicians need frequent, partial access without fully opening the cabinet. The door’s material is 2 mm sheet steel with a textured paint finish in RAL 7035, delivering durable protection in dusty, wash-down, and high-traffic environments while maintaining a professional appearance. Hinges can mount on either side, enabling flexible installation for retrofits on existing VX frames and simplifying on-site maintenance. The door includes two locks and lock components, allowing standard security and the option to upgrade to different lock inserts (type A) as needed. With a 600x800 mm footprint, it fits standard VX front openings and supports quick monitor frame integration if required. The supply includes cross member, hinges, lock components, and assembly parts to streamline on-site assembly.
Get a Quick Quote for a Rittal 9682168
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9682168?
Enquire Now
FAQs
Yes. The VX Partial Door is designed for VX enclosures with a 600x800 mm front opening. It ships with cross member, hinges, lock components, and assembly parts, and can be hinged on either the left or right. A top and bottom trim panel are required, and a monitor frame (2305.000) can be used for doors without viewing panels to support integration on heights 600–1000 mm.
Key specs include a 600x800 mm footprint, 2 mm sheet steel construction, textured paint finish in RAL 7035, and IP54 protection per IEC 60529. The door weighs 10.28 kg per pack and is supplied as a single unit with a cross member, hinges, and two locking components. The product is described as VX Partial door for enclosure front access.
This partial door is ideal for VX enclosures in manufacturing lines, electrical infrastructure cabinets, and service bays where technicians need frequent, selective access. It enables faster servicing without exposing the entire interior, supports quick retrofits on existing VX frames, and reduces downtime while maintaining enclosure integrity and IP protection.
The VX Partial Door provides IP54 protection per IEC 60529, suitable for dusty and damp environments typical of manufacturing floors. The enclosure uses 2 mm sheet steel with textured paint for durability. It also aligns with standard classification systems like ETIM 9 (EC000747) and ECLASS 8.0 (27182204) to assist with procurement and cross-system compatibility.
The door’s left/right hinge option, included hardware, and compatibility with VX frames streamline installation and retrofit projects, reducing downtime. Its robust steel construction and IP54 rating offer long-term protection in harsh environments. The pack includes all necessary components, and the 600x800 mm size fits common VX footprints, contributing to lower total cost of ownership.
