Rittal VX Partial Door SV 9682.169 - IP54
Part Number: 9682169
Manufacturer
Rittal
Part number
9682169
Alt Part Number
SV 9682.169
Quick Summary
Rittal VX Partial Door provides quick access for VX enclosures with a viewing window. This design addresses the common challenge of inspecting components and performing maintenance without exposing the entire cabinet to dust, moisture, or contaminants. The IP54 rating, along with ETIM EC000747 and ECLASS 27182204 data classifications, supports reliable performance and procurement consistency in demanding industrial environments. The solution uses 2 mm sheet steel with a 3 mm viewing pane and a textured paint finish in RAL 7035, offering durability and corrosion resistance. With right- or left-hand hinge options and trim-panel compatibility, installation flexibility translates into reduced downtime and safer, more efficient field servicing for systems integrators and OEMs.
Product Information
Extended Description

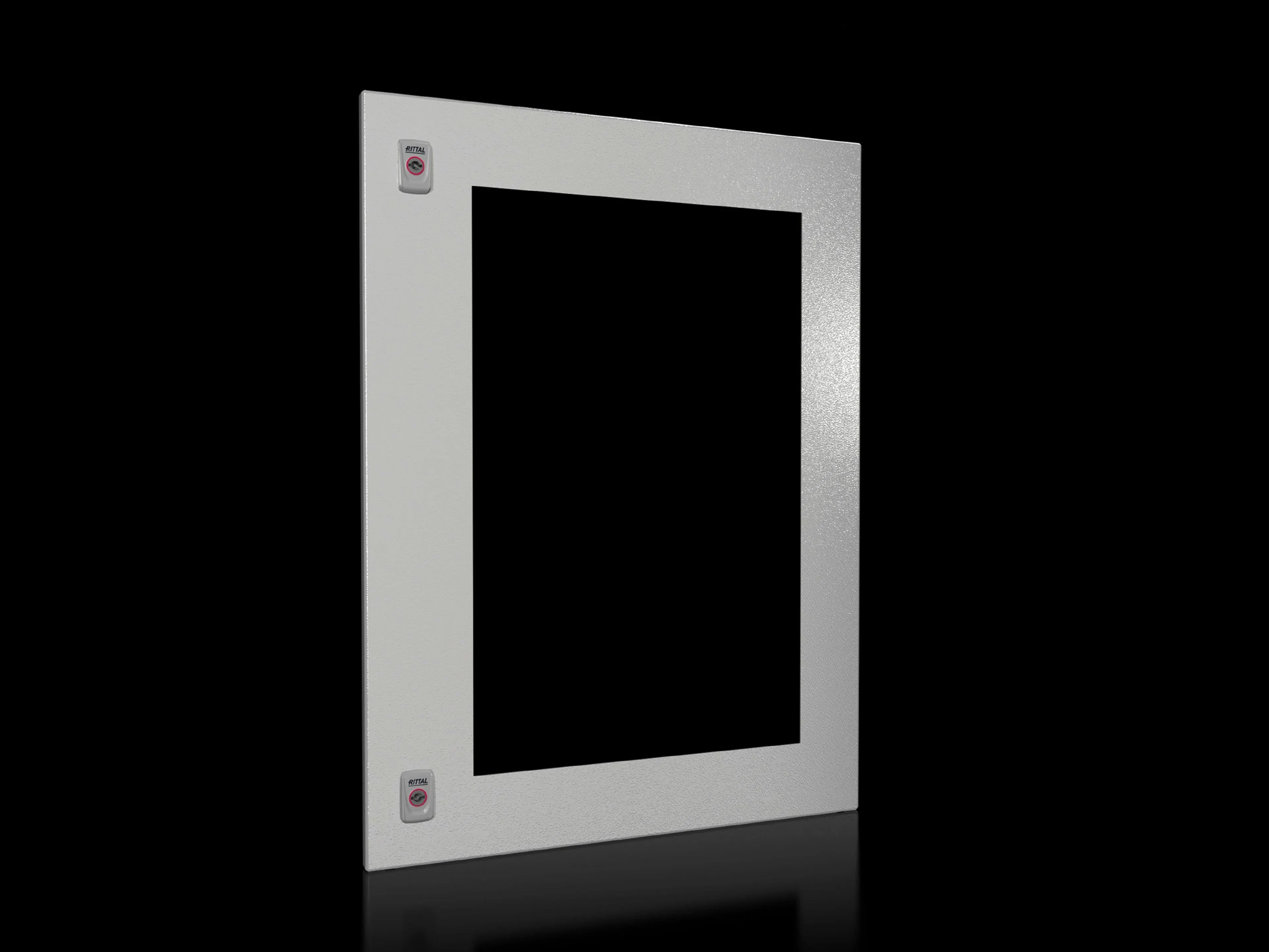

9682169 Rittal: VX Partial door, WH: 600x800 mm, with viewing window sheet steel
Article number
SV 9682.169
Design
with viewing window
Product description
Suitable for VX enclosures instead of a door or rear panel. The partial doors may be combined with one another as required. A trim panel is required at the top and bottom in each case. Door may be optionally hinged on the right or left. In the case of doors without viewing panel (height 600 – 1000 mm), monitor frame 2305.000 may be installed. Standard double-bit lock insert may be exchanged for lock inserts, type A.
Material
Sheet steel, 2 mm | Viewing window: Single-pane safety glass, 3 mm
Surface finish
Textured paint
Colour
RAL 7035
Supply includes
Partial door | Cross member | Hinges | Lock components | Assembly parts
Note
Opening angle of partial doors max. 130°
Lock
Number of locks: 2
Dimensions
Width: 600 mm | Height: 800 mm
To fit
Width: = 600 mm
IP protection category to IEC 60 529
IP 54
Packs of
1 pc(s).
Weight/pack
9.72 kg
PCF per pack (cradle-to-gate)
37 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177929180
ETIM 9
EC000747
ECLASS 8.0
27182204
Product description
VX Partial door, WH: 600x800 mm, with viewing window sheet steel
Feature: Viewing window and partial door design. Business Impact: Enables quick visual checks and targeted access without removing the full door, reducing maintenance downtime. Application: Control panels and distribution enclosures in automated manufacturing lines. Feature: Durable materials and glass. Business Impact: 2 mm sheet steel body with a 3 mm safety glass viewing pane delivers rugged protection while maintaining visibility, extending enclosure life in harsh environments. Application: Industrial cabinets in dusty or humid service areas. Feature: Precise footprint and fit. Business Impact: 600x800 mm dimensions ensure predictable integration with VX enclosures and retrofit projects, minimizing modification costs. Application: New builds and upgrades across automation installations. Feature: Security and locking. Business Impact: Two locks provide secure access control with upgrade options, reducing tampering risk and compliance concerns. Application: Power distribution and control panels in regulated facilities. Feature: Installation and compatibility. Business Impact: Hinges, cross member, and assembly parts are included, supporting rapid retrofit and scalable configurations within the VX family. Application: Modular expansion and maintenance-friendly cabinet design in evolving automation lines.
