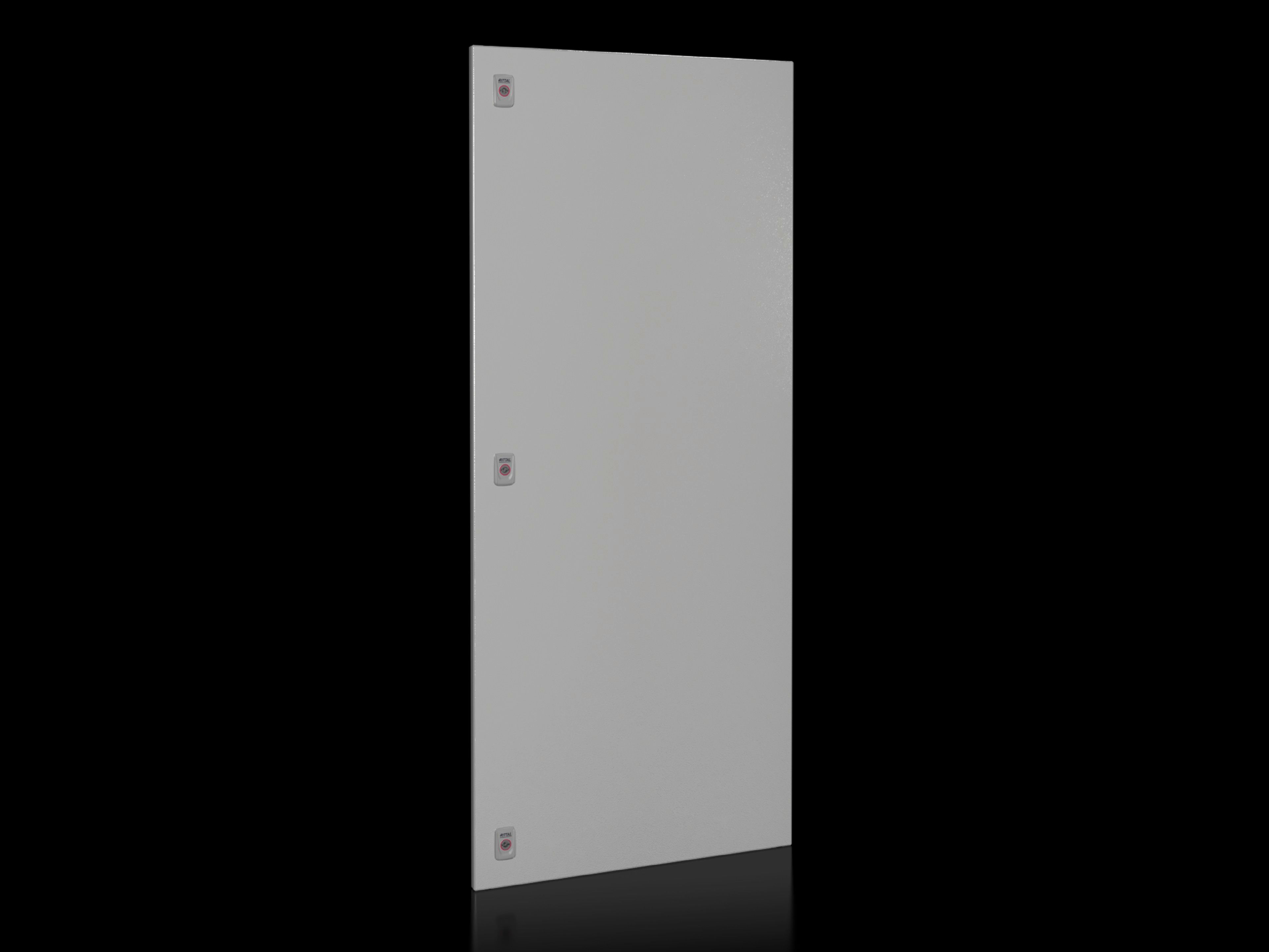

Rittal 9682174 VX Partial door - IP54 protection
Part Number: 9682174
Manufacturer
Rittal
Part number
9682174
Alt Part Number
SV 9682.174
Quick Summary
Rittal 9682174 VX Partial door enables flexible access for VX enclosure cabinets in industrial environments. This solution addresses common retrofit and space constraints by allowing selective door openings rather than full enclosure access, reducing downtime during maintenance. It carries IP54 protection and CE-compliant expectations, while ETIM EC000747 and ECLASS 27182204 classifications support reliable part numbering and procurement. For engineers and procurement teams, the VX Partial door combines modularity with predictable lifecycle costs. The combination of standard dimensions, robust sheet steel construction, and ready-to-install hardware helps streamline installation while maintaining enclosure integrity. This accessory complements VX enclosures and supports scalable, cost-efficient cabinet management in electrical infrastructure projects.
Product Information
Extended Description
9682174 Rittal: VX Partial door, WH: 600x1400 mm sheet steel
Article number
SV 9682.174
Product description
Suitable for VX enclosures instead of a door or rear panel. The partial doors may be combined with one another as required. A trim panel is required at the top and bottom in each case. Door may be optionally hinged on the right or left. In the case of doors without viewing panel (height 600 – 1000 mm), monitor frame 2305.000 may be installed. Standard double-bit lock insert may be exchanged for lock inserts, type A.
Material
Sheet steel, 2 mm
Surface finish
Textured paint
Colour
RAL 7035
Supply includes
Partial door | Cross member | Hinges | Lock components | Assembly parts
Note
Opening angle of partial doors max. 130°
Lock
Number of locks: 3
Dimensions
Width: 600 mm | Height: 1,400 mm
To fit
Width: = 600 mm
IP protection category to IEC 60 529
IP 54
Packs of
1 pc(s).
Weight/pack
19 kg
PCF per pack (cradle-to-gate)
72.4 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177928824
ETIM 7.0
EC000747
ECLASS 8.0
27182204
Product description
VX Partial door, WH: 600x1400 mm sheet steel
Feature: Right or left hinge option as standard. Business Impact: Installation flexibility in constrained or awkward spaces, reducing the need for multiple SKUs and enabling on-site adaptation. Application: Suitable for VX enclosures in diverse layouts. Feature: Dimensions Width 600 mm, Height 1400 mm. Business Impact: Consistent fit within VX cabinet footprints, enabling standardized wiring and panel alignment. Application: Enclosures requiring a partial door with exact opening geometry. Feature: Material and finish Sheet steel 2 mm thick with textured paint in RAL 7035. Business Impact: Durable protection against corrosion and physical impact, lowering maintenance costs over the product life. Application: Industrial environments with varying environmental exposure. Feature: IP protection IP 54. Business Impact: Controlled dust ingress and splash protection, ensuring equipment reliability in typical workshop or manufacturing settings. Application: Enclosures deployed in semi-dusty or damp areas. Feature: Supply includes Partial door, cross member, hinges, lock components, assembly parts. Business Impact: Simplified procurement and faster on-site assembly, reducing installation time by eliminating multiple component sourcing. Application: New builds and retrofit projects. Feature: Opening angle up to 130°. Business Impact: Maximized clearance without compromising enclosure integrity, enabling convenient access for maintenance. Application: Doors in tight cabinet spaces. Feature: Locking and security Three locks standard. Business Impact: Enhanced access control and security for critical equipment. Application: Data center or control panel areas. Feature: Weight per pack 19 kg; PCF 72.4 kg CO2 eq (Cat B). Business Impact: Manageable handling in field operations; sustainability considerations for green procurement. Application: Lifecycle assessment and eco-friendly project planning.
Get a Quick Quote for a Rittal 9682174
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9682174?
Enquire Now
FAQs
The 9682174 VX Partial door is designed specifically for VX enclosures, with a 600 mm width and 1400 mm height to match the standard VX footprint. It includes necessary cross member, hinges, and lock components for quick on-site assembly, and the top/bottom trim panels ensure secure, vibration-resistant mounting in typical industrial environments. Ensure the door opening angle does not exceed 130 degrees during installation.
The door carries IP54 protection, protecting against limited dust ingress and water splashes from all directions. It uses a 2 mm sheet steel construction with textured paint for durability, and comes with three locking points to enhance security for sensitive equipment. This combination supports reliable operation in workshops, assembly lines, and rugged facilities.
Yes. The partial door can be hinged on either the right or left side, accommodating space constraints and existing cabinet layouts. For retrofits, standard trim panels at the top and bottom are required, and the door can be combined with other partial doors as needed to create a modular enclosure solution without replacing the entire door assembly.
The VX Partial door aligns with ETIM 7.0 EC000747 and ECLASS 8.0 27182204 classifications, supporting standardized procurement. It is CE-compliant and contributes to sustainability metrics with a cradle-to-gate PCF of 72.4 kg CO2 eq (Cat B). This makes it suitable for projects emphasizing regulatory adherence and green procurement practices.
The door kit includes cross member, hinges, lock components, and assembly parts, reducing lead time and field sourcing. Its modular nature lowers inventory costs by eliminating the need for full-door variants, and the 130° opening angle facilitates faster maintenance access. Overall, expect reduced downtime and streamlined service workflows in production environments.
