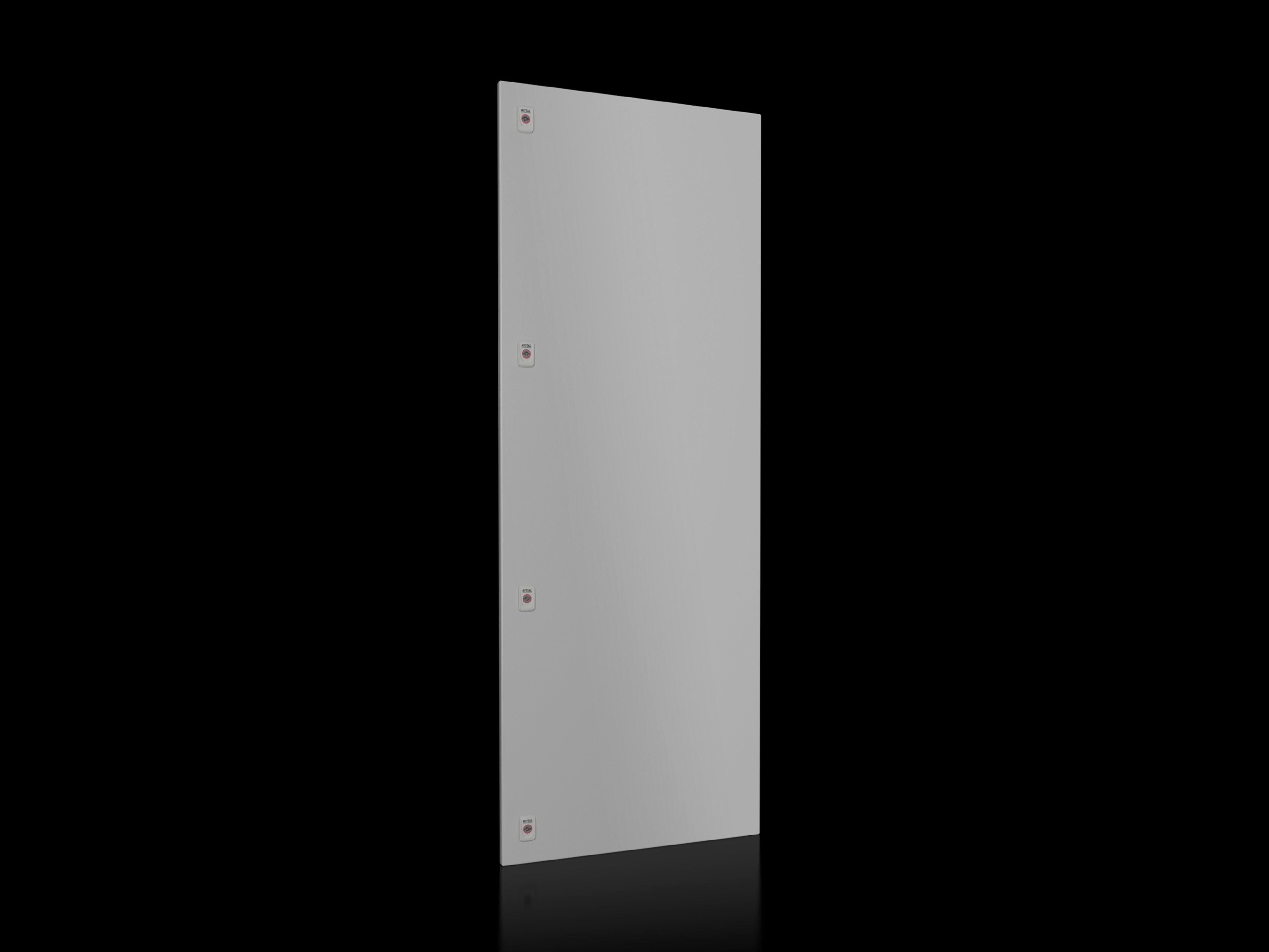

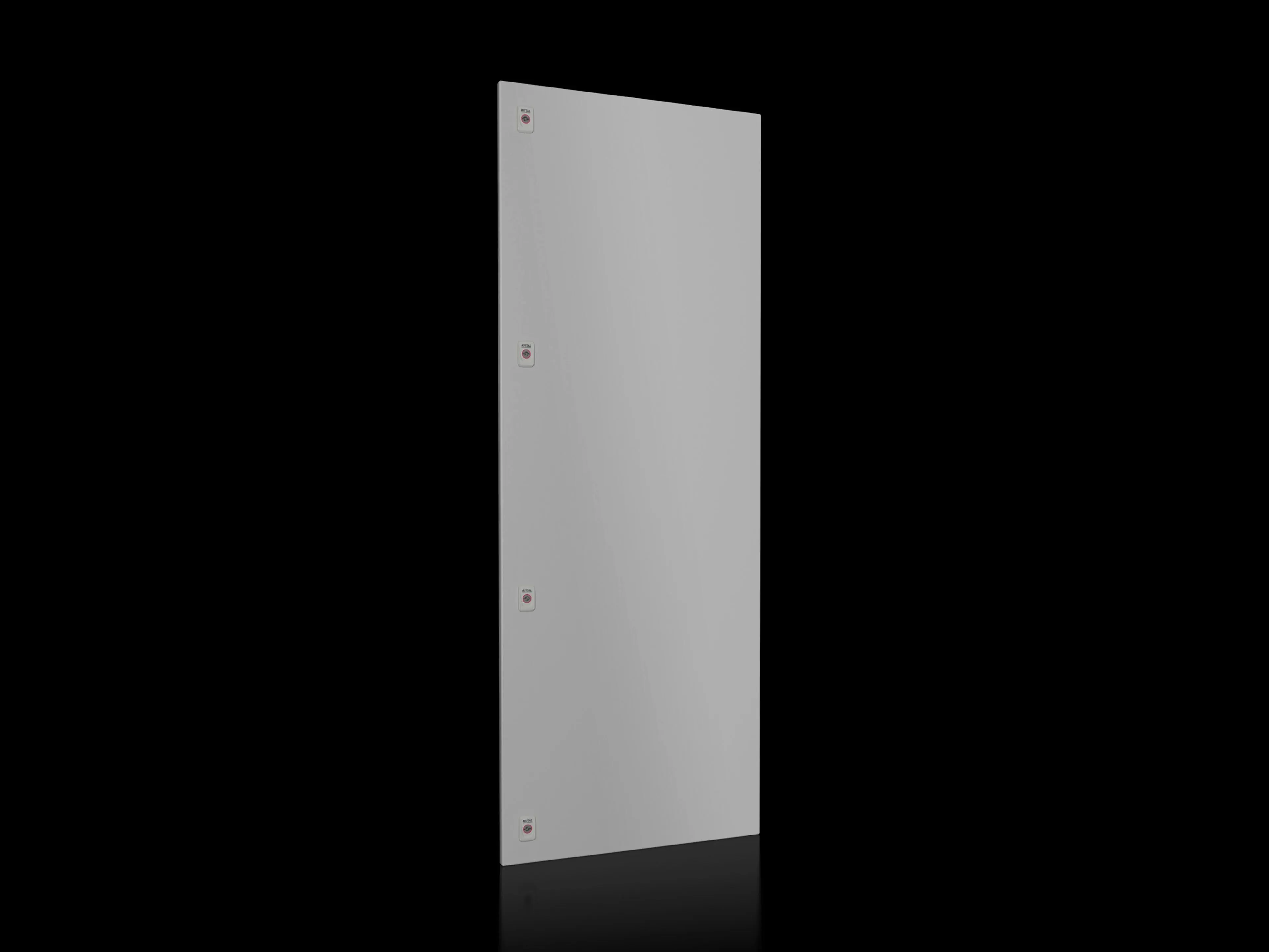

Rittal 9682176 VX Partial Door for Enclosures - IP54 Rating
Part Number: 9682176
Manufacturer
Rittal
Part number
9682176
Alt Part Number
SV 9682.176
Quick Summary
Rittal 9682176 VX Partial Door provides flexible access for VX enclosure cabinets used in industrial control rooms. Engineers often struggle to balance security with easy maintenance when doors are fixed, leading to downtime during servicing. The design delivers IP54 protection, a 2 mm sheet steel build, and a four-lock system to safeguard assets while enabling rapid servicing. With right- or left-hand hinge options and a textured paint finish in RAL 7035, it supports modular, compliant installations across diverse VX enclosure configurations. This combination reduces installation time, improves serviceability, and aligns with standard enclosure practices for robust industrial environments.
Product Information
Extended Description
9682176 Rittal: VX Partial door, WH: 600x1600 mm sheet steel
Article number
SV 9682.176
Product description
Suitable for VX enclosures instead of a door or rear panel. The partial doors may be combined with one another as required. A trim panel is required at the top and bottom in each case. Door may be optionally hinged on the right or left. In the case of doors without viewing panel (height 600 – 1000 mm), monitor frame 2305.000 may be installed. Standard double-bit lock insert may be exchanged for lock inserts, type A.
Material
Sheet steel, 2 mm
Surface finish
Textured paint
Colour
RAL 7035
Supply includes
Partial door | Cross member | Hinges | Lock components | Assembly parts
Note
Opening angle of partial doors max. 130°
Lock
Number of locks: 4
Dimensions
Width: 600 mm | Height: 1,600 mm
To fit
Width: = 600 mm
IP protection category to IEC 60 529
IP 54
Packs of
1 pc(s).
Weight/pack
21 kg
PCF per pack (cradle-to-gate)
80 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177929098
ETIM 9
EC000747
ECLASS 8.0
27182204
Product description
VX Partial door, WH: 600x1600 mm sheet steel
Feature → Business Impact → Application: The VX Partial Door is a modular, right- or left-hinged door that adapts to VX enclosures, reducing the number of door variants and speeding on-site installation in control panels. This flexibility translates to lower procurement and labor costs while improving maintenance access for scheduled and emergency servicing in manufacturing facilities. Feature → The door uses 2 mm sheet steel with a textured paint finish and a durable RAL 7035 color, delivering long‑lasting reliability in harsh factory floors and warehouse environments. Benefit is increased resistance to wear and simpler visual integration with existing enclosures. Application: Ideal for high‑duty automation lines requiring quick access without compromising security.
Get a Quick Quote for a Rittal 9682176
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9682176?
Enquire Now
FAQs
For installation, confirm width compatibility (600 mm) and choose hinge orientation (right or left). Attach the cross member, hinges, and lock components supplied with the door, then mount the partial door to the enclosure frame. If installing without a viewing panel, consider the monitor frame 2305.000. Ensure the top and bottom trim panels are in place to complete the fit and maintain IP54 integrity.
Key specs include a width of 600 mm and height of 1,600 mm, 2 mm sheet steel construction, textured paint surface, RAL 7035 color, IP54 protection, and four locking points. Weight per pack is 21 kg, with one unit per pack. The supply includes partial door, cross member, hinges, lock components, and assembly parts.
Yes. The door achieves IP54 protection per IEC 60529, providing dust and splash resistance suitable for workshop and factory conditions. The 2 mm sheet steel construction with a textured paint finish adds durability against impact and wear, while the four-lock system maintains security in dynamic environments.
The enclosure door carries an IP54 rating under IEC 60529. It is designed to align with standard enclosure practices and is catalogued under ETIM 9 EC000747 and ECLASS 8.0 27182204, aiding procurement systems and compatibility checks within industrial automation projects.
The door improves serviceability with easy access to internal components, reducing downtime during maintenance. Its modular design allows scalable openings by combining multiple partial doors. The included components streamline installation, while IP54 protection minimizes environmental risk, contributing to longer enclosure life and lower total cost of ownership.
