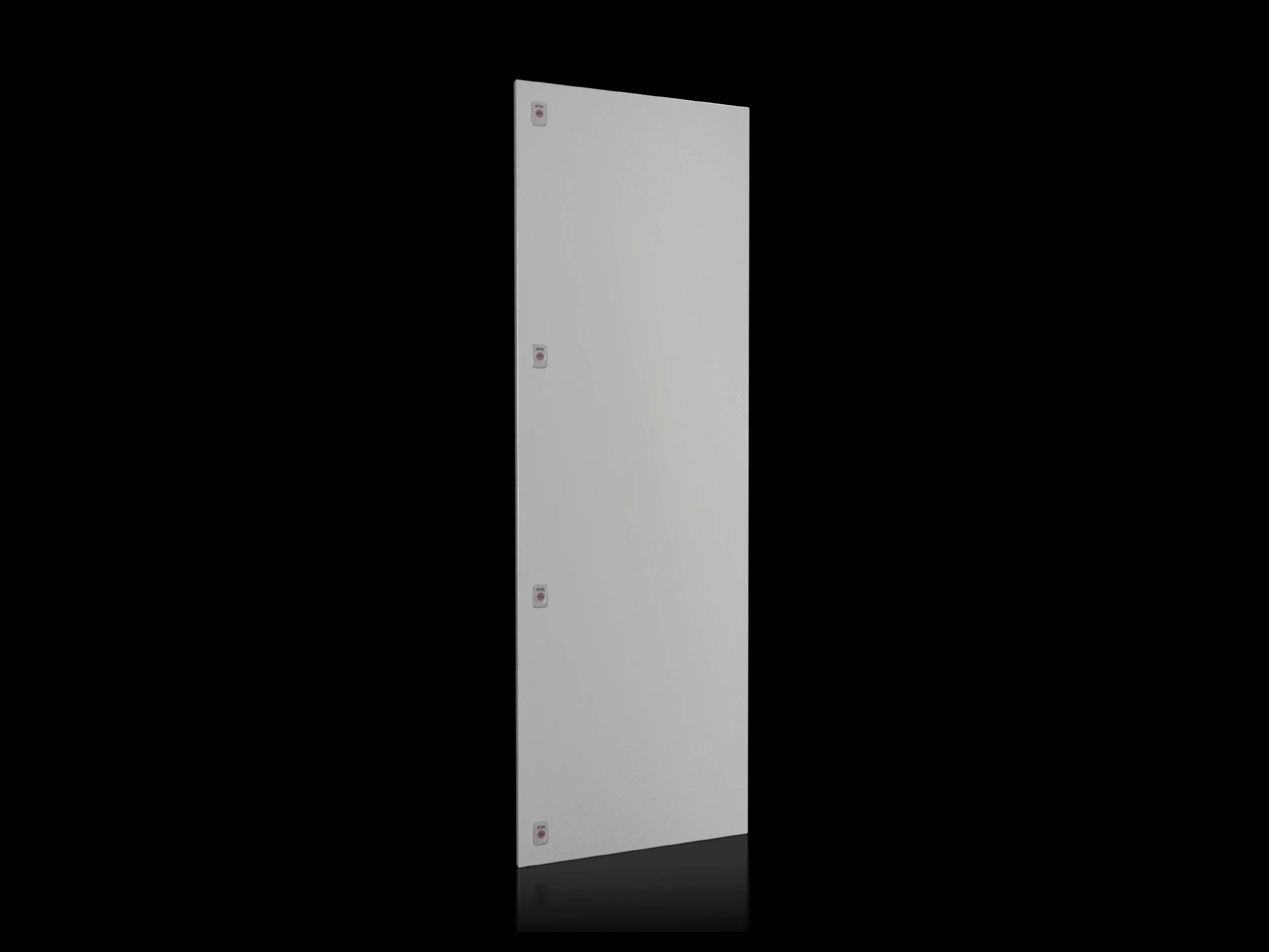

Rittal SV 9682.178 VX Partial Door - IP54, 600x1800
Part Number: 9682178
Manufacturer
Rittal
Part number
9682178
Alt Part Number
SV 9682.178
Quick Summary
Rittal SV 9682.178 VX Partial Door secures VX enclosures with flexible, partial door access. This design minimizes downtime by avoiding full door swaps when only section access is needed. It offers IP54 protection per IEC 60 529 and supports standard lock inserts for security, with the option to hinge the door on the right or left. The modular fit and textured finish suit demanding industrial environments, ensuring long service life in factory floors and data centers. As a trusted VX enclosure accessory, it enables installation efficiency, compatibility with monitor frame 2305.000 for doors without viewing panels, and lower lifecycle costs for maintenance-intensive electrical infrastructure.
Product Information
Extended Description
9682178 Rittal: VX Partial door, WH: 600x1800 mm sheet steel
Article number
SV 9682.178
Product description
Suitable for VX enclosures instead of a door or rear panel. The partial doors may be combined with one another as required. A trim panel is required at the top and bottom in each case. Door may be optionally hinged on the right or left. In the case of doors without viewing panel (height 600 – 1000 mm), monitor frame 2305.000 may be installed. Standard double-bit lock insert may be exchanged for lock inserts, type A.
Material
Sheet steel, 2 mm
Surface finish
Textured paint
Colour
RAL 7035
Supply includes
Partial door | Cross member | Hinges | Lock components | Assembly parts
Note
Opening angle of partial doors max. 130°
Lock
Number of locks: 4
Dimensions
Width: 600 mm | Height: 1,800 mm
To fit
Width: = 600 mm
IP protection category to IEC 60 529
IP 54
Packs of
1 pc(s).
Weight/pack
24.18 kg
PCF per pack (cradle-to-gate)
92.1 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177928978
ETIM 9
EC000747
ECLASS 8.0
27182204
Product description
VX Partial door, WH: 600x1800 mm sheet steel
Feature → Business Impact → Application: The 600 mm width by 1,800 mm height partial door uses 2 mm sheet steel, delivering robust mechanical strength while maintaining a lighter weight for easier handling on site. This translates to safer installation and extended cabinet integrity in harsh factory environments, ideal for VX enclosures in automation and electrical infrastructure projects. Feature → Business Impact → Application: IP54 protection safeguards internal components against dust and splashes, ensuring reliable operation in dusty production lines and moist environments typical of process industries. This reduces unplanned downtime and supports compliance with factory cleanliness standards. Feature → Business Impact → Application: Right or left hinge capability offers installation flexibility to accommodate tight spaces and adjacent equipment, accelerating on-site assembly and retrofits in control rooms and machine cells. Feature → Business Impact → Application: Supply includes the partial door, cross member, hinges, lock components, and assembly parts, enabling faster project timelines and consistent quality across installations in OEM and retrofit programs. Feature → Business Impact → Application: Compatibility with monitor frames like 2305.000 for doors without viewing panels extends use cases to monitoring and control panels in automation cabinets, data centers, and energy management enclosures. Feature → Business Impact → Application: Four-lock security and upgradeable lock inserts provide scalable protection for critical equipment, supporting security policies in manufacturing lines and utility installations. Feature → Business Impact → Application: The door’s textured paint in RAL 7035 delivers durable aesthetics and corrosion resistance, reducing repaint cycles and maintenance costs in outdoor or semi-exposed enclosures used in process industries.
Get a Quick Quote for a Rittal 9682178
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9682178?
Enquire Now
FAQs
Yes. The SV 9682.178 is designed specifically for VX enclosures with a 600 mm width and 1,800 mm height. Installation includes a cross member, hinges, and lock components, with the door capable of hinging on either side. For doors without viewing panels, monitor frame 2305.000 may be installed to preserve visibility where needed.
Key specs include 2 mm sheet steel construction, textured paint, and a U-class color of RAL 7035. The door provides IP54 protection per IEC 60 529 and uses four locking points. Packed as a single unit per pack, it weighs 24.18 kg and accepts standard lock inserts, making security upgrades straightforward in automation cabinets.
Ideal for industrial automation and electrical infrastructure applications, including control panels, machine enclosures, and process cabinets. It enables selective access for maintenance without fully removing doors, improving workflow on production lines, panel maintenance, and energy management installations in manufacturing and data-center environments.
The product complies with IP protection category IP54 per IEC 60 529. It is listed with ETIM 9 EC000747 and ECLASS 8.0 27182204, ensuring compatibility with standard industry classification and procurement workflows used in industrial automation and electrical infrastructure projects.
By enabling partial access, the door reduces downtime during routine servicing and panel inspections. The included hardware accelerates installation, while the option to reuse existing lock inserts and compatibility with frame 2305.000 lowers lifecycle costs. In turnkey VX projects, this translates to faster commissioning and longer cabinet life with lower maintenance overhead.
