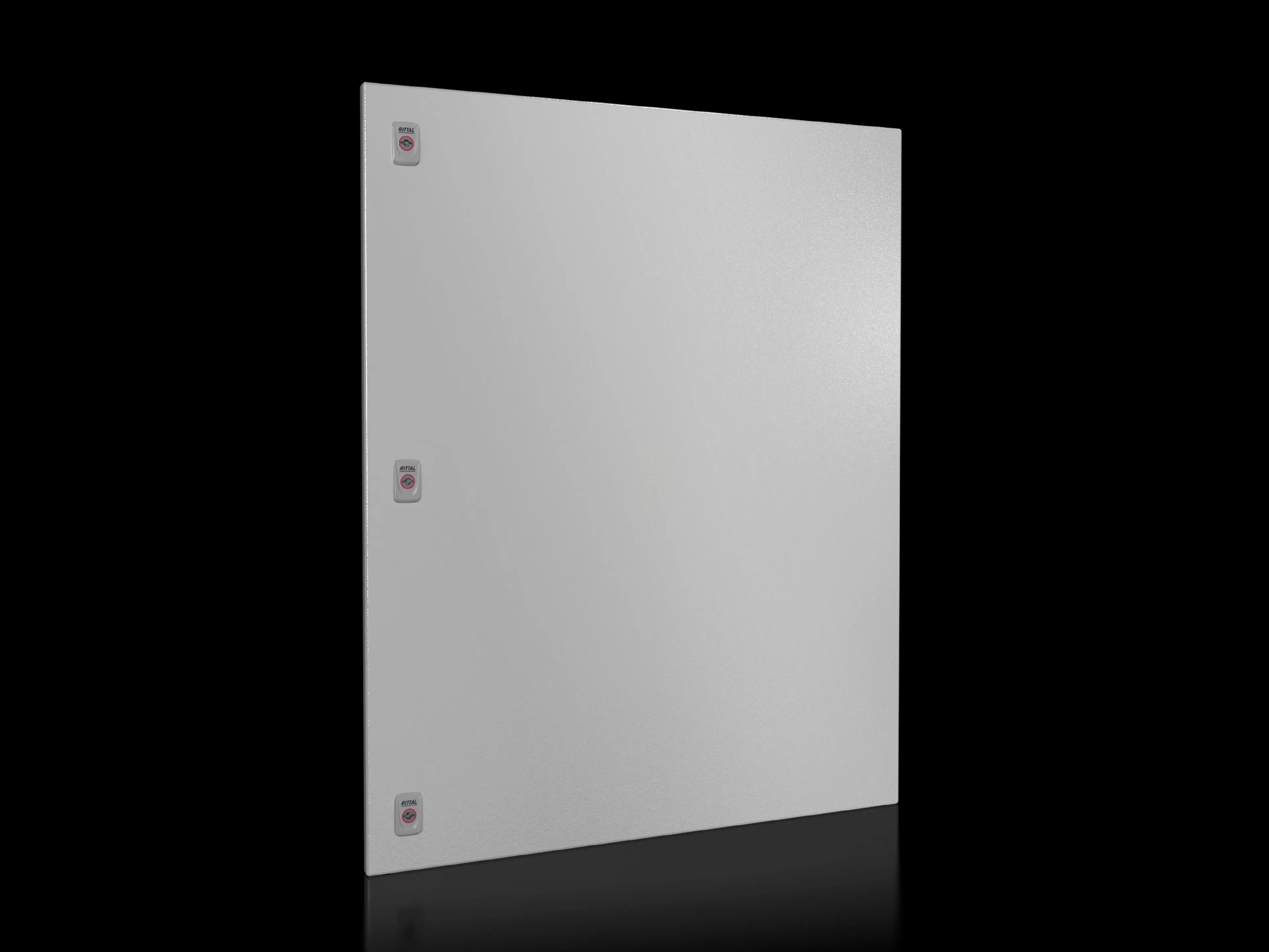

Rittal 9682180 VX Partial Door for VX Enclosures IP54
Part Number: 9682180
Manufacturer
Rittal
Part number
9682180
Alt Part Number
SV 9682.180
Quick Summary
Rittal 9682180 VX Partial Door is a configurable door solution for VX enclosures, providing flexible access in control cabinets. Engineers often struggle with rigid door configurations and time-consuming retrofits; this partial door supports modular trimming and easy pairing with other VX components. Its IP54 protection, three-lock security, and 800x1000 mm footprint meet demanding industrial standards while enabling fast service access and compliant installation. In practice, this translates to reduced downtime, predictable procurement, and improved lifecycle cost management through standardized components and reduced waste. This makes it easier for procurement to standardize parts across regional facilities and for engineering teams to specify a proven, mass-produced solution. Additionally, ETIM EC000747 and ECLASS 27182204 align with common ERP and PLM workflows, helping ensure accurate BOMs and faster sourcing.
Product Information
Extended Description
9682180 Rittal: VX Partial door, WH: 800x1000 mm sheet steel
Article number
SV 9682.180
Product description
Suitable for VX enclosures instead of a door or rear panel. The partial doors may be combined with one another as required. A trim panel is required at the top and bottom in each case. Door may be optionally hinged on the right or left. In the case of doors without viewing panel (height 600 – 1000 mm), monitor frame 2305.000 may be installed. Standard double-bit lock insert may be exchanged for lock inserts, type A.
Material
Sheet steel, 2 mm
Surface finish
Textured paint
Colour
RAL 7035
Supply includes
Partial door | Cross member | Hinges | Lock components | Assembly parts
Note
Opening angle of partial doors max. 130°
Lock
Number of locks: 3
Dimensions
Width: 800 mm | Height: 1,000 mm
To fit
Width: = 800 mm
IP protection category to IEC 60 529
IP 54
Packs of
1 pc(s).
Weight/pack
18.3 kg
PCF per pack (cradle-to-gate)
69.7 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177928909
ETIM 9
EC000747
ECLASS 8.0
27182204
Product description
VX Partial door, WH: 800x1000 mm sheet steel
Feature: Flexible hinge orientation and modular door combinations. Business Impact: Enables rapid adaptation to changing layouts and reduces retrofit costs. Application: VX enclosures in production lines where access must be tailored per cabinet position. Feature: Durable 2 mm sheet steel with textured paint in RAL 7035. Business Impact: Improves corrosion resistance and lowers ongoing maintenance. Application: harsh factory floors and outdoor-adjacent installations in the industrial enclosures market. Feature: IP54 protection and three-lock security. Business Impact: Minimizes dust ingress and enhances security, reducing downtime due to contamination and tampering. Application: data and control cabinets in automated systems. Feature: Included components and compatibility with monitor frame 2305.000 for height 600–1000 mm. Business Impact: Streamlines installation with fewer separate parts and faster commissioning. Application: control panels that integrate displays or monitoring devices. Feature: Exact dimensions 800x1000 mm and fit guidance Width: 800 mm. Business Impact: Clear procurement and compatibility across VX enclosures; supports standardization. Application: modular enclosures across multiple facilities. Feature: Sustainability and weight considerations (18.3 kg per pack; PCF 69.7 kg CO2 eq). Business Impact: Supports green procurement targets and lifecycle cost control; lowers carbon footprint. Application: mass-produced enclosure components for large-scale rollouts.
Get a Quick Quote for a Rittal 9682180
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9682180?
Enquire Now
FAQs
The partial door is designed for VX enclosures with an 800 mm width. It ships with a cross member, hinges, lock components, and assembly parts to simplify installation. For heights 600–1000 mm, consider the monitor frame 2305.000 to support integrated displays. Ensure the door’s opening angle is within the max 130° while aligning with the enclosure’s accessory mounting points.
Key specs include Article SV 9682.180, 800x1000 mm footprint, 2 mm sheet steel, textured paint in RAL 7035, and IP54 protection per IEC 60 529. It uses three locking points, supports right or left hinge orientation, and is intended to replace or supplement a door or rear panel on VX enclosures.
Yes. With an IP54 rating, textured paint finish, and durable 2 mm sheet steel, the door is well-suited for dusty/relatively damp factory floors and automated lines. The three-lock system adds security, while modular assembly reduces downtime during system evolution and cabinet upgrades.
The product references ETIM EC000747 and ECLASS 27182204 classifications, aiding procurement data accuracy and interoperability with ERP/PLM workflows. IP54 denotes ingress protection, aligning with common industrial enclosure requirements for control cabinets in varied environments.
The door ships with essential components for fast installation, reducing commissioning time. Its durable build and IP54 rating lower maintenance and replacement costs in dusty environments, while the 3-lock system enhances security. PCF data (69.7 kg CO2 eq per pack) supports sustainability reporting in green procurement programs.
