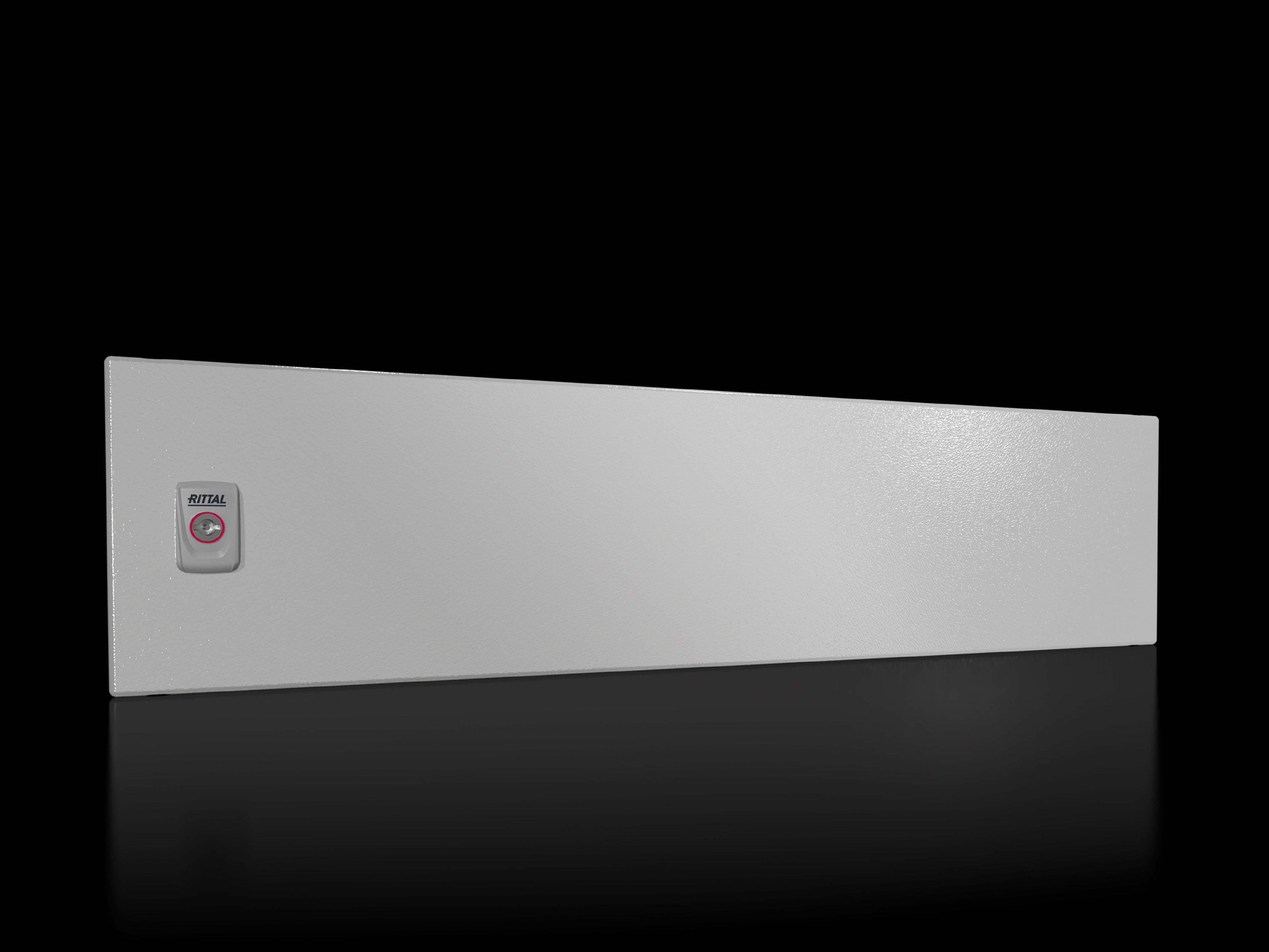

Rittal 9682182 VX Partial Door - IP54
Part Number: 9682182
Manufacturer
Rittal
Part number
9682182
Alt Part Number
SV 9682.182
Quick Summary
Rittal 9682182 VX Partial Door offers flexible enclosure front access for VX enclosures in electrical cabinets. It helps technicians avoid full-door replacements when partial access is required for maintenance, wiring, or monitoring. This solution aligns with IP54 protection, ETIM EC000747, and ECLASS 27182204 standards, supporting reliability in harsh environments and easy component sourcing. By enabling left or right hinge options and top/bottom trim integration, it speeds installation while reducing spare-parts inventory and commissioning time. The combination of textured paint finish in RAL 7035 and modular hardware improves long-term serviceability and cabinet aesthetics. This combination also supports future upgrades and simplifies spare part planning for industrial facilities.
Product Information
Extended Description
9682182 Rittal: VX Partial door, WH: 800x200 mm sheet steel
Article number
SV 9682.182
Product description
Suitable for VX enclosures instead of a door or rear panel. The partial doors may be combined with one another as required. A trim panel is required at the top and bottom in each case. Door may be optionally hinged on the right or left. In the case of doors without viewing panel (height 600 – 1000 mm), monitor frame 2305.000 may be installed. Standard double-bit lock insert may be exchanged for lock inserts, type A.
Material
Sheet steel, 2 mm
Surface finish
Textured paint
Colour
RAL 7035
Supply includes
Partial door | Cross member | Hinges | Lock components | Assembly parts
Note
Opening angle of partial doors max. 130°
Lock
Number of locks: 1
Dimensions
Width: 800 mm | Height: 200 mm
To fit
Width: = 800 mm
IP protection category to IEC 60 529
IP 54
Packs of
1 pc(s).
Weight/pack
4.5 kg
PCF per pack (cradle-to-gate)
17.1 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177928985
ETIM 9
EC000747
ECLASS 8.0
27182204
Product description
VX Partial door, WH: 800x200 mm sheet steel
The VX Partial Door is sized at 800 mm wide by 200 mm high to match VX enclosure openings, providing precise front access without a full door swap. This dimensional fit minimizes field adjustments and accelerates installation for standard 800 mm VX frames used in control cabinets. Construction uses sheet steel 2 mm and a textured paint finish in RAL 7035, delivering durability and easy cleaning in industrial environments. This combination reduces maintenance costs and maintains cabinet aesthetics under harsh conditions. Hinges can be mounted on the left or right, with an opening angle up to 130 degrees, enabling flexible access and efficient cable routing. This versatility supports both retrofit projects and new builds, reducing the need for different door variants. Each pack includes a partial door, cross member, hinges, lock components, and assembly parts, with a trim panel required at the top and bottom. Quick-install hardware accelerates site assembly and minimizes downtime during cabinet upgrades. The solution aligns with IP54 protection and is compatible with standard lock inserts (customizable with type A). It also provides quantified sustainability data, with a PCF of 17.1 kg CO2 eq per pack (Category B), aiding green procurement. Moreover, combining multiple partial doors is supported for larger front openings, supporting scalable enclosure configurations.
Get a Quick Quote for a Rittal 9682182
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9682182?
Enquire Now
FAQs
The partial door ships with a cross member, hinges, lock components, and assembly parts. Installers can hinge the door on the left or right, connect the hinges to the enclosure, and ensure the top and bottom trim panels are in place. The opening angle maxes at 130°, and for doors without a viewing panel, you may install monitor frame 2305.000.
The door carries an IP54 protection rating per IEC 60 529, ensuring reliable dust and splash protection in typical industrial environments.
The door is designed for VX enclosures with a width of 800 mm (WH: 800x200 mm), matching the specified width for a precise fit.
Each pack includes the partial door, cross member, hinges, lock components, and assembly parts. A top and bottom trim panel is required for each installation, and the kit can be combined with standard lock inserts or upgraded to type A.
The PCF per pack is 17.1 kg CO2 eq (Category B) cradle-to-gate, reflecting the product weight. This helps in green procurement planning and sustainability reporting.
