Rittal SV 9682.183 VX Partial Door System - IP54
Part Number: 9682183
Manufacturer
Rittal
Part number
9682183
Alt Part Number
SV 9682.183
Quick Summary
The Rittal SV 9682.183 VX Partial Door System provides configurable access for VX enclosures used in control cabinets. By swapping only the door rather than the entire cabinet, downtime is reduced and spare-parts management becomes predictable. Its IP54 protection, textured RAL 7035 finish, and 2 mm sheet-steel construction deliver rugged reliability in harsh industrial environments. This approach streamlines maintenance, improves security, and supports efficient procurement planning for automation and electrical infrastructure projects. The solution integrates smoothly with VX accessories and monitor-frame options to drive faster, safer service cycles while meeting common industry standards.
Product Information
Extended Description

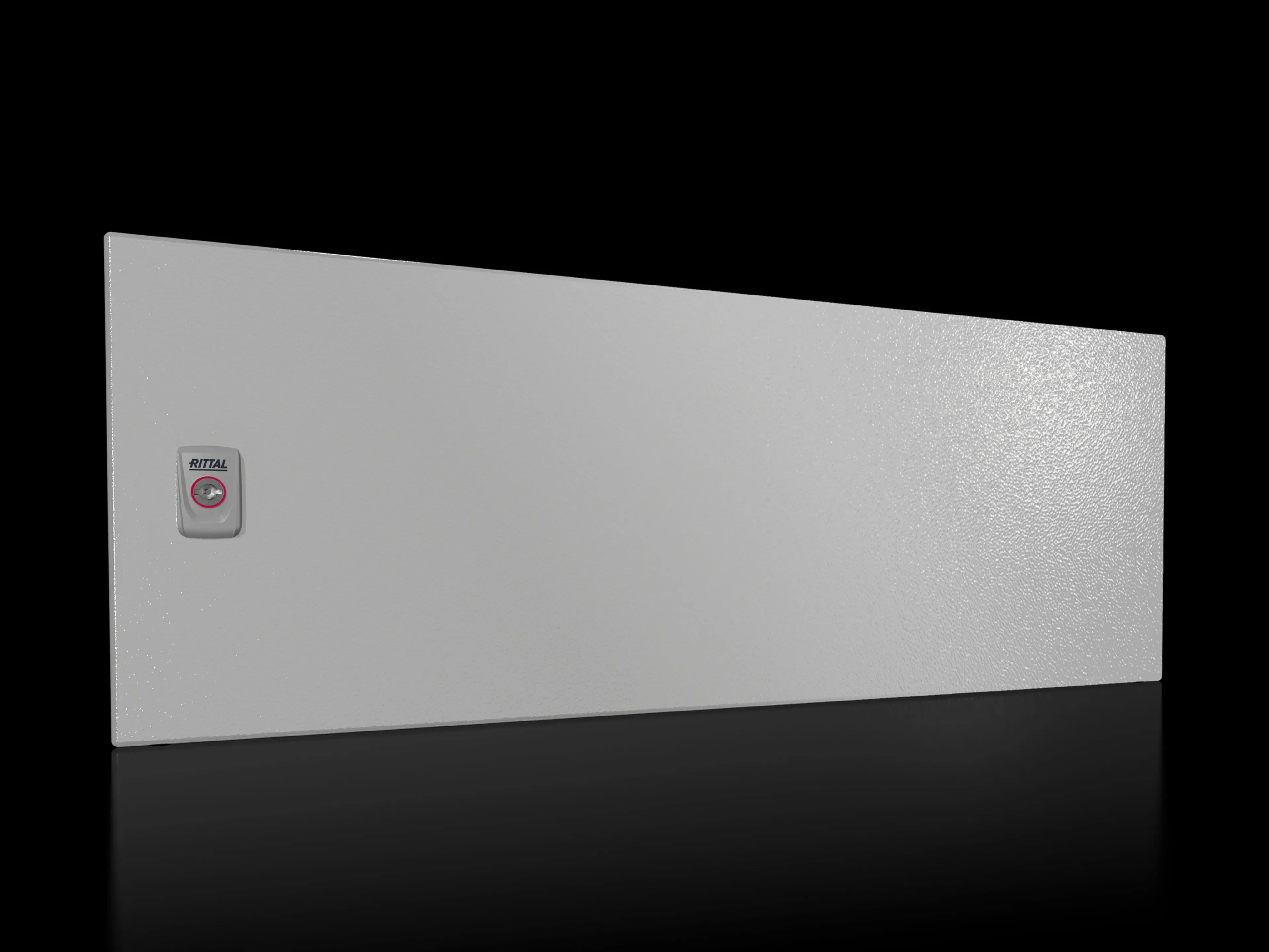

9682183 Rittal: VX Partial door, WH: 800x300 mm sheet steel
Article number
SV 9682.183
Product description
Suitable for VX enclosures instead of a door or rear panel. The partial doors may be combined with one another as required. A trim panel is required at the top and bottom in each case. Door may be optionally hinged on the right or left. In the case of doors without viewing panel (height 600 – 1000 mm), monitor frame 2305.000 may be installed. Standard double-bit lock insert may be exchanged for lock inserts, type A.
Material
Sheet steel, 2 mm
Surface finish
Textured paint
Colour
RAL 7035
Supply includes
Partial door | Cross member | Hinges | Lock components | Assembly parts
Note
Opening angle of partial doors max. 130°
Lock
Number of locks: 1
Dimensions
Width: 800 mm | Height: 300 mm
To fit
Width: = 800 mm
IP protection category to IEC 60 529
IP 54
Packs of
1 pc(s).
Weight/pack
5.98 kg
PCF per pack (cradle-to-gate)
22.8 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177928800
ETIM 9
EC000747
ECLASS 8.0
27182204
Product description
VX Partial door, WH: 800x300 mm sheet steel
Door can be hinged on the right or left, offering installation flexibility that reduces layout constraints and simplifies retrofits in existing VX enclosures. This flexibility translates into lower on-site labor costs and faster commissioning in control cabinets and electrical panels. The door uses 2 mm sheet steel with a textured finish in RAL 7035, delivering rugged durability and a consistent industrial look while resisting wear and corrosion. PCF per pack is 22.8 kg CO2 eq (Cat B), aligning with sustainability targets and responsible procurement practices. The partial door package includes a cross member, hinges, lock components, and assembly parts, speeding on-site installation and ensuring correct alignment for reliable long-term operation. The enclosure door supports a standard double-bit lock or an exchange to type A, enabling tailored security without compromising accessibility. With an opening angle up to 130°, technicians gain ample access while maintaining panel protection and safe handling during maintenance.
Get a Quick Quote for a Rittal 9682183
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9682183?
Enquire Now
FAQs
The installation starts with aligning the cross member and hinges to the VX enclosure frame, then attaching the door to the hinges so it can swing within the 130° limit. Use the provided assembly parts and lock components to secure the door, ensuring proper seal and alignment with the enclosure base and top panels for reliable IP54 protection.
Yes. The partial door is rated IP54, providing protection against limited dust ingress and splashing water. The 2 mm sheet-steel construction with textured RAL 7035 finish provides durable service in factory floors, electrical rooms, and automated lines, helping maintain internal component integrity and compliance with common safety standards.
Absolutely. The door is designed to hinge on either the right or left side, offering installation flexibility to fit varying layouts and retrofits. This capability reduces downtime during reconfiguration and enables easier access for maintenance teams without changing the enclosure footprint.
The package includes the partial door, cross member, hinges, lock components, and all necessary assembly parts. This complete kit simplifies procurement, ensures proper alignment during installation, and supports quick, repeatable mounting on VX enclosures with compatibility to monitor frames and related accessories.
The product has a cradle-to-gate PCF value of 22.8 kg CO2 eq (Category B). This footprint reflects the weight and material usage of the door and its components, supporting sustainability tracking and responsible procurement discussions in manufacturing and plant lifecycle planning.
