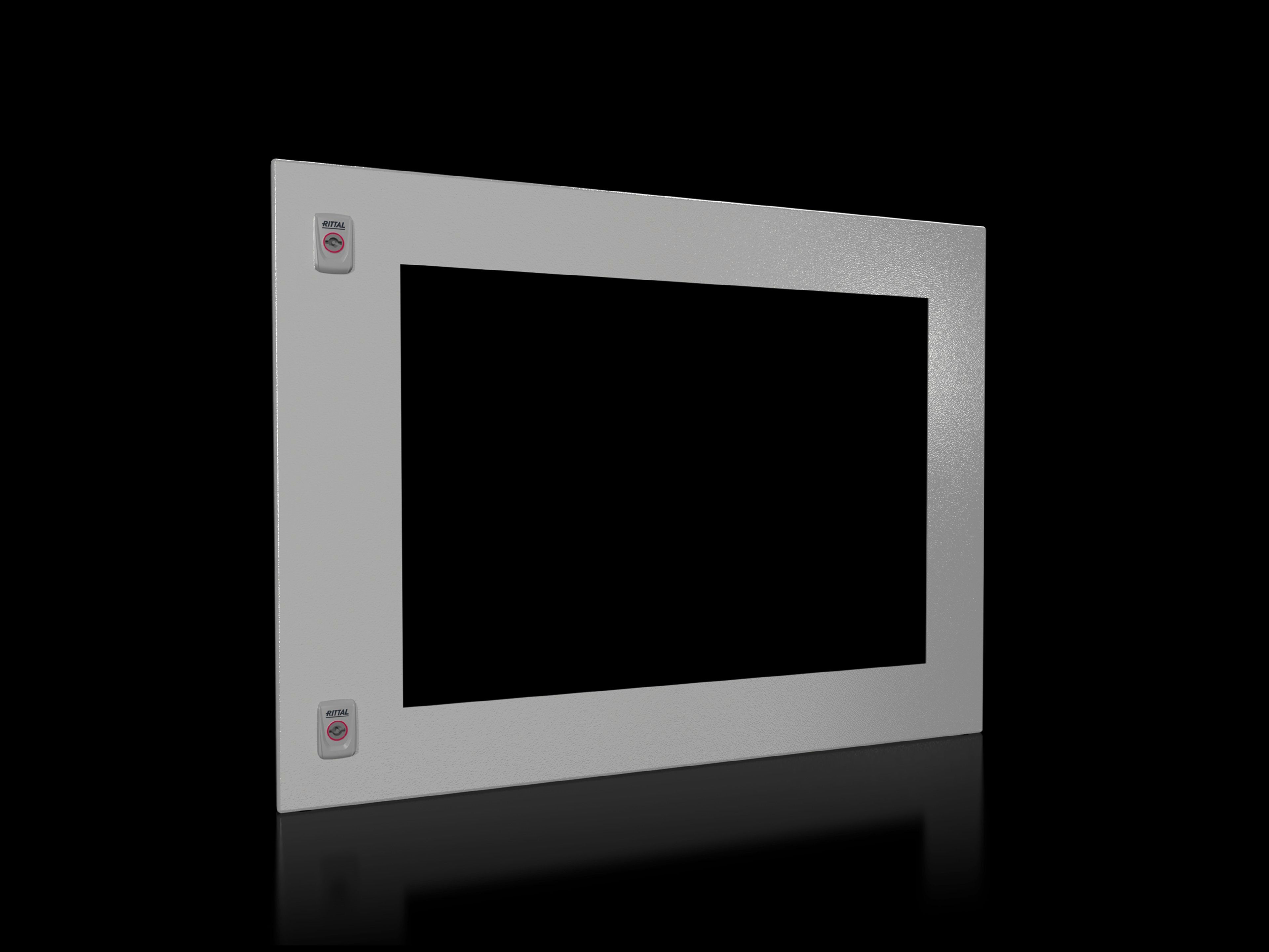

Rittal SV 9682.187 VX Partial Door - IP54
Part Number: 9682187
Manufacturer
Rittal
Part number
9682187
Alt Part Number
SV 9682.187
Quick Summary
The Rittal SV 9682.187 VX Partial Door provides a viewing-window solution for VX enclosure installations. When space is tight and you need quick visual checks, full-door access slows maintenance and can cause unnecessary downtime. It carries IP54 protection per IEC 60529, uses 2 mm sheet steel with a 3 mm viewing glass, and aligns with VX frames; its classifications include ETIM EC000747 and ECLASS 27182204. Designed for reliable visibility in electrical infrastructure projects, it integrates with existing hardware and trims while offering left or right hinge options to fit your installation. This combination delivers improved maintenance efficiency and predictable procurement costs.
Product Information
Extended Description
9682187 Rittal: VX Partial door, WH: 800x600 mm, with viewing window sheet steel
Article number
SV 9682.187
Design
with viewing window
Product description
Suitable for VX enclosures instead of a door or rear panel. The partial doors may be combined with one another as required. A trim panel is required at the top and bottom in each case. Door may be optionally hinged on the right or left. In the case of doors without viewing panel (height 600 – 1000 mm), monitor frame 2305.000 may be installed. Standard double-bit lock insert may be exchanged for lock inserts, type A.
Material
Sheet steel, 2 mm | Viewing window: Single-pane safety glass, 3 mm
Surface finish
Textured paint
Colour
RAL 7035
Supply includes
Partial door | Cross member | Hinges | Lock components | Assembly parts
Note
Opening angle of partial doors max. 130°
Lock
Number of locks:Â 2
Dimensions
Width:Â 800 mm | Height:Â 600 mm
To fit
Width:Â = 800 mm
IP protection category to IEC 60 529
IP 54
Packs of
1 pc(s).
Weight/pack
10.02 kg
PCF per pack (cradle-to-gate)
38.2Â kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177928756
ETIM 9
EC000747
ECLASS 8.0
27182204
Product description
VX Partial door, WH: 800x600 mm, with viewing window sheet steel
Feature viewing window with partial-door design enables continuous monitoring without full door exposure, reducing unplanned downtime and preserving enclosure integrity. Business impact faster visual checks translate to shorter maintenance windows and safer, more efficient operations. Application ideal for process lines, control panels, and electrical cabinets where visibility matters but full access is not required. The VX-compatible design ensures straightforward installation on VX enclosures, minimizing field customization and spare-part needs. Feature left or right hinge options provide installation flexibility in tight spaces and awkward layouts, reducing site rework. Business impact easier integration into existing layouts and energy-efficient maintenance routines. Application suitable for manufacturing floors, packaging lines, and automation kiosks with limited clearance. Feature rugged sheet steel with a 2 mm body and 3 mm safety-glass viewing window, IP54 protection, textured RAL 7035 finish, and two locks, delivering long-term durability and consistent performance. Business impact extended service life, easier compliance with plant standards, and improved asset reliability. Application supports quick door top and bottom trim-panel installation, reducing procurement steps since the supply includes cross member, hinges, lock components, and assembly parts. Feature pack includes all essential hardware, simplifying installation and reducing project lead times. Business impact faster project completion and lower on-site risk. Application suitable for retrofit projects and new builds alike. Feature sustainability data includes PCF 38.2 kg CO2 eq (Cat B) per pack, helping traceability and CSR goals across production sites. Business impact demonstrates a tangible reduction in cradle-to-gate environmental footprint while maintaining performance.
Get a Quick Quote for a Rittal 9682187
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9682187?
Enquire Now
FAQs
The partial door is designed for VX enclosures at 800x600 mm. It ships with a cross member, hinges, lock components, and assembly parts and can be hinged on either side. For detailed steps, refer to the 9682187_Instructions_DE_EN_FR downloads and ensure top and bottom trim panels are installed as required.
The door features IP54 protection per IEC 60529, constructed from 2 mm sheet steel with a 3 mm viewing glass. It uses a textured paint finish in RAL 7035, and weighs 10.02 kg per pack. It includes two locks and is designed to fit VX enclosures with 800x600 mm opening.
Yes. For heights between 600 and 1000 mm without a viewing panel, the monitor frame 2305.000 may be installed. The SV 9682.187 is designed to work with VX frames and trim panels, with opening angles up to 130 degrees.
The supply includes a partial door, cross member, hinges, lock components, and assembly parts. A top and bottom trim panel is required for each installation. The kit is designed for straightforward mounting on VX enclosures and supports left or right hinge configurations to suit site constraints.
The pack carries 38.2 kg CO2 equivalent (Cat B) cradle-to-gate PCF. It also has standard industry classifications such as ETIM EC000747 and ECLASS 27182204. Additional identifiers include Customs tariff 94039910 and EAN 4028177928756, supporting regulatory reporting and supplier data integration.
