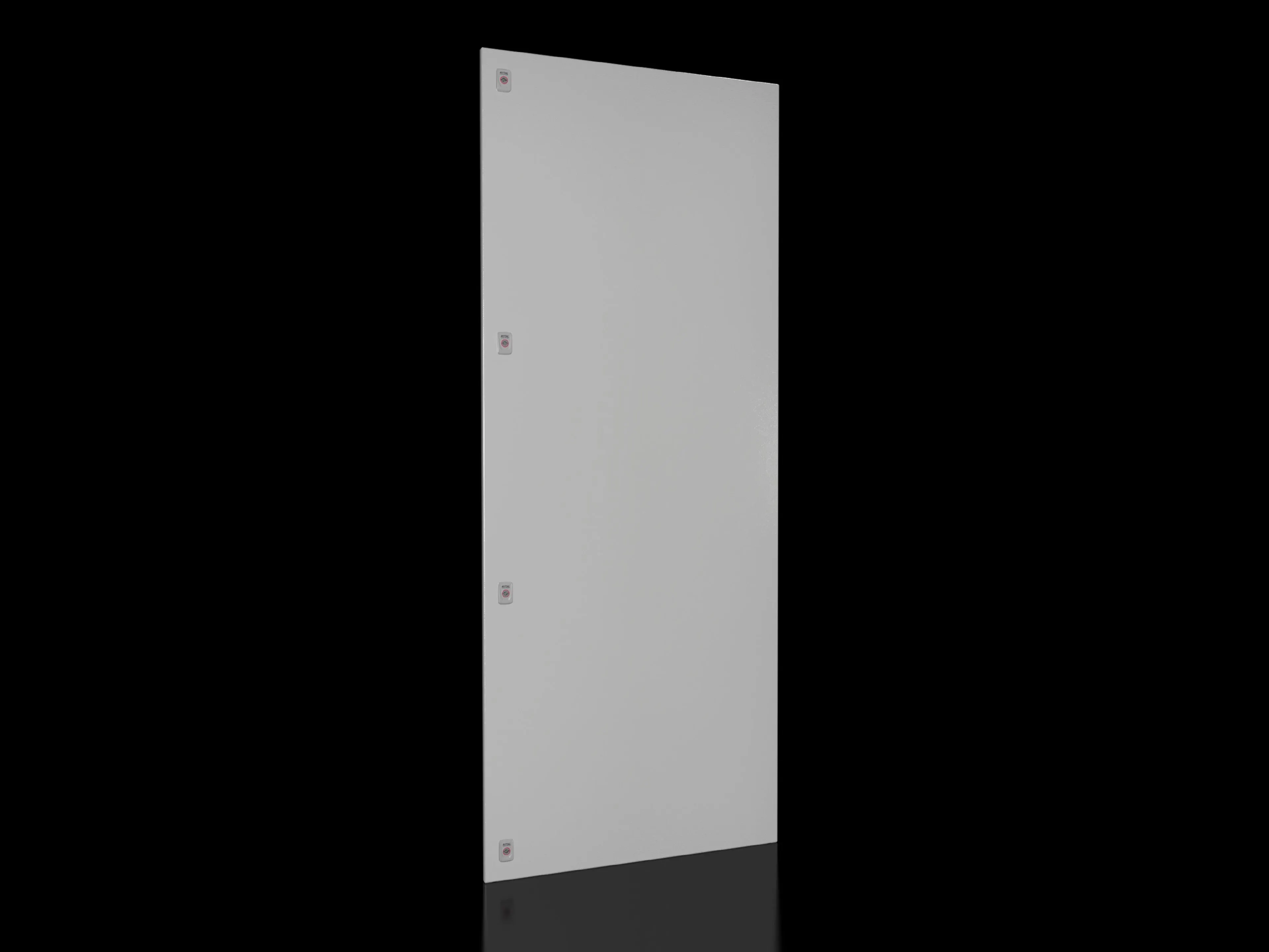

Rittal 9682190 VX Partial Door - 800x2000 mm IP54
Part Number: 9682190
Manufacturer
Rittal
Part number
9682190
Alt Part Number
SV 9682.190
Quick Summary
The Rittal 9682190 VX Partial Door provides a flexible enclosure front for VX cabinets in industrial control panels. Typical retrofits demand full doors or rear panels, wasting time on alignment and increasing installation costs. It supports IP54 protection and aligns with ETIM EC000747 and ECLASS 8.0 classifications, helping you maintain standardization across suppliers. This option reduces field wiring exposure and accelerates assembly by including hinges, lock components, and cross members, delivering measurable labor savings and safer access for maintenance teams. For procurement and maintenance teams, the VX partial door offers predictable total cost of ownership while preserving access flexibility and compliance in industrial automation environments.
Product Information
Extended Description
9682190 Rittal: VX Partial door, WH: 800x2000 mm sheet steel
Article number
SV 9682.190
Product description
Suitable for VX enclosures instead of a door or rear panel. The partial doors may be combined with one another as required. A trim panel is required at the top and bottom in each case. Door may be optionally hinged on the right or left. In the case of doors without viewing panel (height 600 – 1000 mm), monitor frame 2305.000 may be installed. Standard double-bit lock insert may be exchanged for lock inserts, type A.
Material
Sheet steel, 2 mm
Surface finish
Textured paint
Colour
RAL 7035
Supply includes
Partial door | Cross member | Hinges | Lock components | Assembly parts
Note
Opening angle of partial doors max. 130°
Lock
Number of locks: 4
Dimensions
Width: 800 mm | Height: 2,000 mm
To fit
Width: = 800 mm
IP protection category to IEC 60 529
IP 54
Packs of
1 pc(s).
Weight/pack
33.5 kg
PCF per pack (cradle-to-gate)
127.6 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177929128
ETIM 9
EC000747
ECLASS 8.0
27182204
Product description
VX Partial door, WH: 800x2000 mm sheet steel
IP54 protection with 2 mm sheet steel and textured paint finish in RAL 7035 provides durable dust and moisture resistance, reducing maintenance frequency and shielding sensitive controls in harsh environments. This translates to lower downtime and longer service life for VX enclosures in manufacturing floors and outdoor-adjacent installations; ideal for automated lines and process control where reliability matters. The door supports left or right hinge orientation and an opening angle up to 130°, enabling rapid reconfiguration during line changes or upgrades without procuring new door assemblies. This flexibility minimizes downtime during retrofits and expands access options for maintenance and component replacement. Included hardware—cross member, hinges, lock components, and assembly parts—reduces BOM complexity and accelerates on-site installation, delivering faster project cycles and consistent build quality across multiple sites. The 4-lock system enhances security for control panels, while the option to swap lock inserts (type A) supports evolving access policies and compliance requirements. Standardizing on SV 9682.190 simplifies procurement with a single, repeatable part for VX front-door solutions; weight and packaging (33.5 kg per pack, 1 pc per pack) aid in logistics planning and sustainability tracking, including PCF 127.6 kg CO2 eq (Cat B). These features align with modern industrial automation needs for safer, compliant, and cost-effective enclosure modernization.
Get a Quick Quote for a Rittal 9682190
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9682190?
Enquire Now
FAQs
SV 9682.190 is a VX Partial Door designed to fit VX enclosures with a width of 800 mm. It includes a cross member, hinges, lock components, and assembly parts, enabling a retrofit approach that preserves the existing frame while adding modular door access. Use it when a full door isn't required and you need flexible access with standardized components for consistent field installation.
IP54 indicates protection against limited dust ingress and water splashes from all directions. For VX enclosures, this means you can deploy the partial door in typical manufacturing and process environments without adding extra sealing stages. It supports safer operation and longer life for internal controls, while still allowing easy maintenance access through a 130° opening.
Begin by verifying the 800 mm width fit. Remove any existing door or rear panel if necessary, then attach the cross member and hinges as provided. Install the four-lock system, and insert a suitable lock insert if needed. Ensure the top and bottom trim panels are in place, and adjust the door to a 130° opening for full access while testing alignment and sealing against ingress protection.
The partial door provides four locking points for robust access control. It ships with a standard double-bit lock insert, and there is an option to exchange inserts to type A to meet evolving security requirements. These features support controlled access for electrical panels in industrial environments, helping protect critical assets and maintain compliance with internal security policies.
The door pack weighs 33.5 kg and is sold as a 1-piece pack, with a documented PCF of 127.6 kg CO2 eq (Cat B). This data supports sustainability reporting and lifecycle planning. Additionally, standardization reduces procurement complexity and installation time, yielding lower field labor costs and more predictable maintenance budgets across multiple VX installations.
