Rittal VX Partial Door SV 9682.192 - IP54
Part Number: 9682192
Manufacturer
Rittal
Part number
9682192
Alt Part Number
SV 9682.192
Quick Summary
Rittal VX Partial Door SV 9682.192 provides flexible access for VX enclosure installations in control panels. It addresses the pain point of rigid, fixed doors by offering left or right hinge options and modular partial-door configurations that simplify retrofits. With IP 54 protection and alignment with ETIM EC000747 and ECLASS 27182204, it supports standardized data and consistent procurement. Designed for industrial environments, it enhances serviceability and reduces maintenance time. When paired with standard lock inserts and trim panels, it speeds installation and improves overall enclosure integrity for scalable automation projects.
Product Information
Extended Description

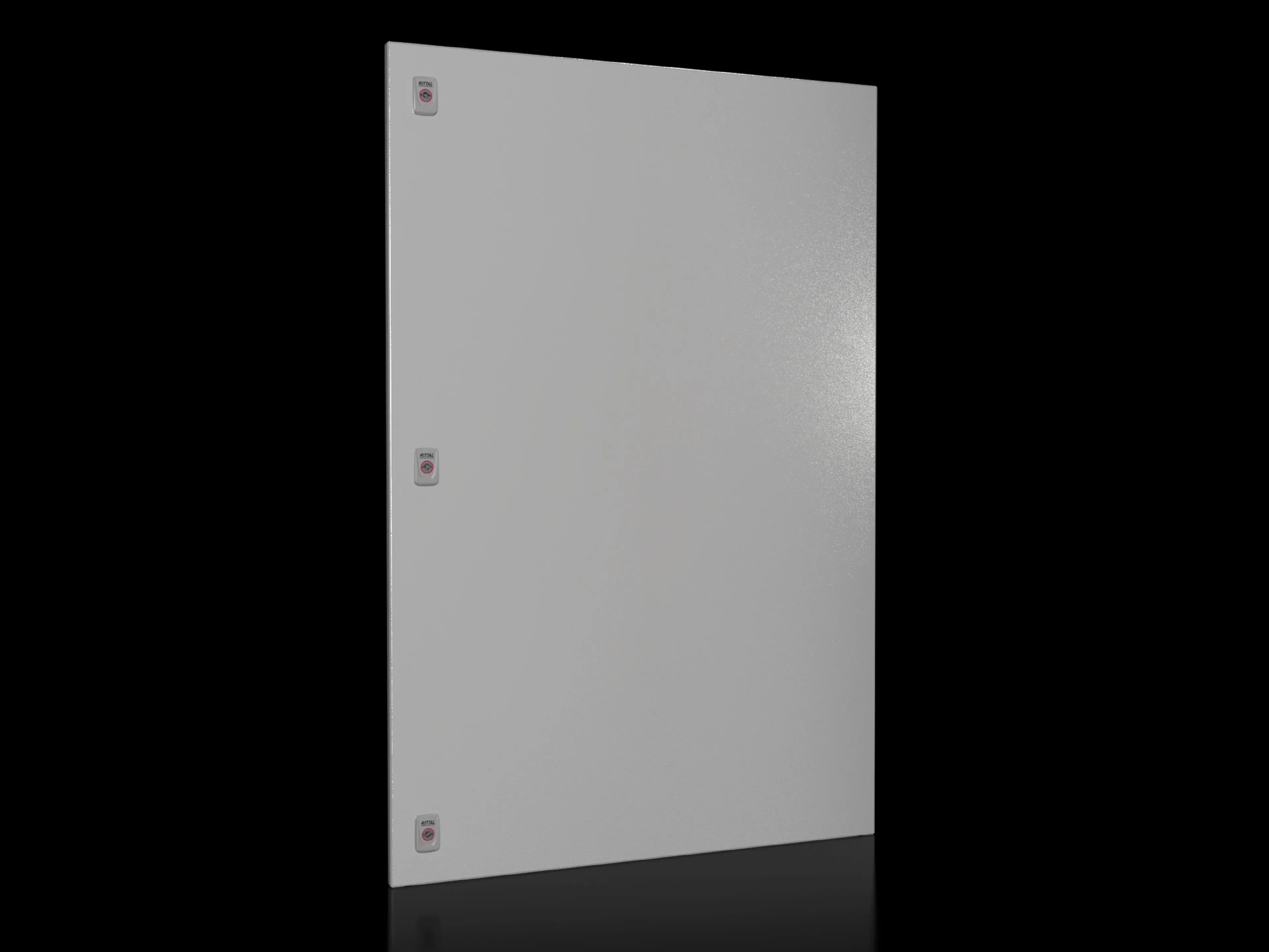

9682192 Rittal: VX Partial door, WH: 800x1200 mm sheet steel
Article number
SV 9682.192
Product description
Suitable for VX enclosures instead of a door or rear panel. The partial doors may be combined with one another as required. A trim panel is required at the top and bottom in each case. Door may be optionally hinged on the right or left. In the case of doors without viewing panel (height 600 – 1000 mm), monitor frame 2305.000 may be installed. Standard double-bit lock insert may be exchanged for lock inserts, type A.
Material
Sheet steel, 2 mm
Surface finish
Textured paint
Colour
RAL 7035
Supply includes
Partial door | Cross member | Hinges | Lock components | Assembly parts
Note
Opening angle of partial doors max. 130°
Lock
Number of locks: 3
Dimensions
Width: 800 mm | Height: 1,200 mm
To fit
Width: = 800 mm
IP protection category to IEC 60 529
IP 54
Packs of
1 pc(s).
Weight/pack
21.4 kg
PCF per pack (cradle-to-gate)
81.5 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177929135
ETIM 9
EC000747
ECLASS 8.0
27182204
Product description
VX Partial door, WH: 800x1200 mm sheet steel
Feature → Business Impact → Application: 800 x 1200 mm footprint and 2 mm sheet steel provide a robust, cost-efficient door solution that withstands industrial conditions, reducing replacement cycles and downtime in high-traffic control rooms. This contributes to measurable uptime gains in manufacturing lines and data-centre-like automation cabinets. Application: VX enclosures where modular access is required, enabling quicker door adaptation during expansions or retrofits. Feature → Business Impact → Application: Textured paint finish in RAL 7035 delivers durable aesthetics while minimizing maintenance repaint cycles, supporting long-term enclosure aesthetics in harsh environments. Application: Outdoor or semi-exposed installations where splash protection matters, aligning with IP 54 standards for dust and water spray resistance. Feature → Business Impact → Application: Hinges configurable to left or right and compatibility with standard lock inserts (type A) allows rapid reconfiguration, reducing commissioning time and inventory costs. This also improves compliance readiness for plant audits and quality programs. Feature → Business Impact → Application: Supplied components (partial door, cross member, hinges, lock components, assembly parts) streamline on-site assembly, lowering labour hours and risk of missing parts during installation.
Get a Quick Quote for a Rittal 9682192
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9682192?
Enquire Now
FAQs
The SV 9682.192 is designed to fit VX enclosures as a partial door and supports both left and right hinge configurations. It ships with cross member, hinges, lock components, and assembly parts, and requires trim panels at the top and bottom. This enables quick retrofits and flexible access without replacing the entire door set.
The door is manufactured from 2 mm sheet steel with a textured paint finish in RAL 7035, delivering robust mechanical protection. It achieves IP54 protection, guarding against dust ingress and water spray, which is suitable for many industrial environments and reduces maintenance frequency.
Yes, the door can be hinged on the left or right, depending on the installation layout. It includes a standard triple-lock insert, with the option to exchange for lock inserts of type A, offering flexibility to meet specific security requirements in manufacturing and process environments.
The product is specified with IP 54 protection, ETIM EC000747, and ECLASS 27182204 classifications, aligning with standardized data models for procurement and compatibility. The EAN is 4028177929135, and customs tariff is 94039910, supporting seamless regional compliance and logistics.
Choosing the SV 9682.192 reduces installation time through modular components and hinge versatility, lowers inventory costs with compatible lock inserts, and enhances uptime by providing durable IP54-rated protection. The cradle-to-gate PCF is documented at 81.5 kg CO2 eq, supporting sustainability reporting for industrial projects.
