Rittal SV 9682.194 VX Partial door - IP54
Part Number: 9682194
Manufacturer
Rittal
Part number
9682194
Alt Part Number
SV 9682.194
Quick Summary
Rittal SV 9682.194 VX Partial door provides flexible service access for VX enclosures, enabling targeted maintenance in control cabinets. Traditional fixed doors can hinder rapid servicing and force full cabinet access, increasing downtime and labor. This door features IP 54 protection and a robust 2 mm sheet steel body finished in textured RAL 7035, with left or right-hand hinge options to fit your line layout. It integrates with standard trims, cross members, and lock components, simplifying procurement and installation. For integrators and maintenance teams, the design supports modular configurations and catalog-friendly specifications (ETIM EC000747, ECLASS 27182204), delivering measurable efficiency without compromising security or compliance.
Product Information
Extended Description

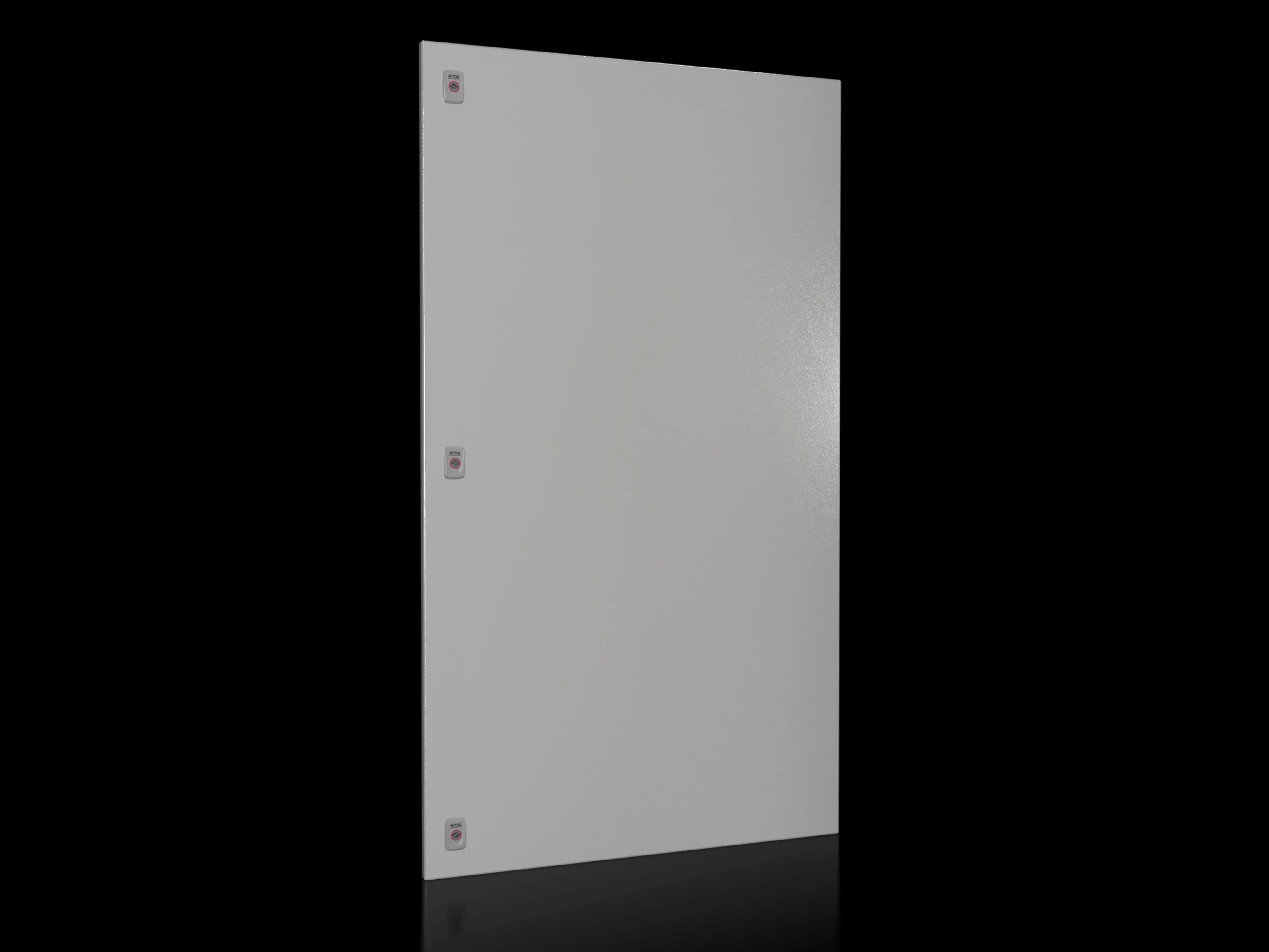

9682194 Rittal: VX Partial door, WH: 800x1400 mm sheet steel
Article number
SV 9682.194
Product description
Suitable for VX enclosures instead of a door or rear panel. The partial doors may be combined with one another as required. A trim panel is required at the top and bottom in each case. Door may be optionally hinged on the right or left. In the case of doors without viewing panel (height 600 – 1000 mm), monitor frame 2305.000 may be installed. Standard double-bit lock insert may be exchanged for lock inserts, type A.
Material
Sheet steel, 2 mm
Surface finish
Textured paint
Colour
RAL 7035
Supply includes
Partial door | Cross member | Hinges | Lock components | Assembly parts
Note
Opening angle of partial doors max. 130°
Lock
Number of locks: 3
Dimensions
Width: 800 mm | Height: 1,400 mm
To fit
Width: = 800 mm
IP protection category to IEC 60 529
IP 54
Packs of
1 pc(s).
Weight/pack
24.66 kg
PCF per pack (cradle-to-gate)
94 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177928794
ETIM 9
EC000747
ECLASS 8.0
27182204
Product description
VX Partial door, WH: 800x1400 mm sheet steel
Feature: VX Partial door for VX enclosures. Business Impact: Enables targeted access, reducing maintenance time and downtime on critical wiring and components. Application: Ideal for control panels in manufacturing lines where quick servicing is necessary. Feature: Hinges can be mounted on either the right or left side. Business Impact: Installation flexibility improves on-site ergonomics and reduces rework during cabinet updates. Application: Fits varied plant layouts and operator workflow. Feature: Material and finish—sheet steel, 2 mm with textured paint in RAL 7035. Business Impact: Durable, corrosion-resistant enclosure skin minimizes repaint cycles and maintenance costs. Application: Harsh industrial environments demanding robust surface finishes. Feature: IP protection IP 54. Business Impact: Protects sensitive electronics from dust ingress and light splashes, maintaining performance. Application: Enclosures in factory floors, electrical rooms, and outdoor-adjacent spaces. Feature: Includes cross member, hinges, lock components, and assembly parts. Business Impact: Streamlines on-site assembly, reduces sourcing time, and shortens project lead times. Application: Ready-to-fit from the box to final mounting. Feature: Opening angle max 130 degrees. Business Impact: Maximizes access while preserving enclosure integrity and internal airflow control. Application: Maintenance and inspection workflows requiring wide opening. Feature: To fit width 800 mm; weight per pack 24.66 kg; PCF 94 kg CO2 eq (Cat B). Business Impact: Predictable shipping and handling, with a quantified environmental footprint for sustainability reporting. Application: Procurement and lifecycle assessments. Feature: Monitor frame option for doors without viewing panel (2305.000). Business Impact: Extends compatibility for display or instrumentation integration. Application: Packages with optional viewing panels or instrumentation mounting.
