Rittal SV 9682.196 VX Partial Door - IP54 Protection
Part Number: 9682196
Manufacturer
Rittal
Part number
9682196
Alt Part Number
SV 9682.196
Quick Summary
Rittal SV 9682.196 VX Partial Door enables flexible access for VX enclosure applications. This configurable door system helps technicians adapt quickly to varied cabinet layouts, reducing installation time and field rework. The design embraces industry-standard protection with an IP54 rating and durable 2 mm sheet steel construction, finished in textured RAL 7035 to resist wear in production environments. While not every job requires a full-height door, partial doors offer modularity when space or airflow considerations demand tailored access. The solution aligns with common ETIM and ECLASS classifications, supporting efficient purchasing and parts cross-referencing while ensuring robust, long-term performance for control panels and automation cabinets.
Product Information
Extended Description

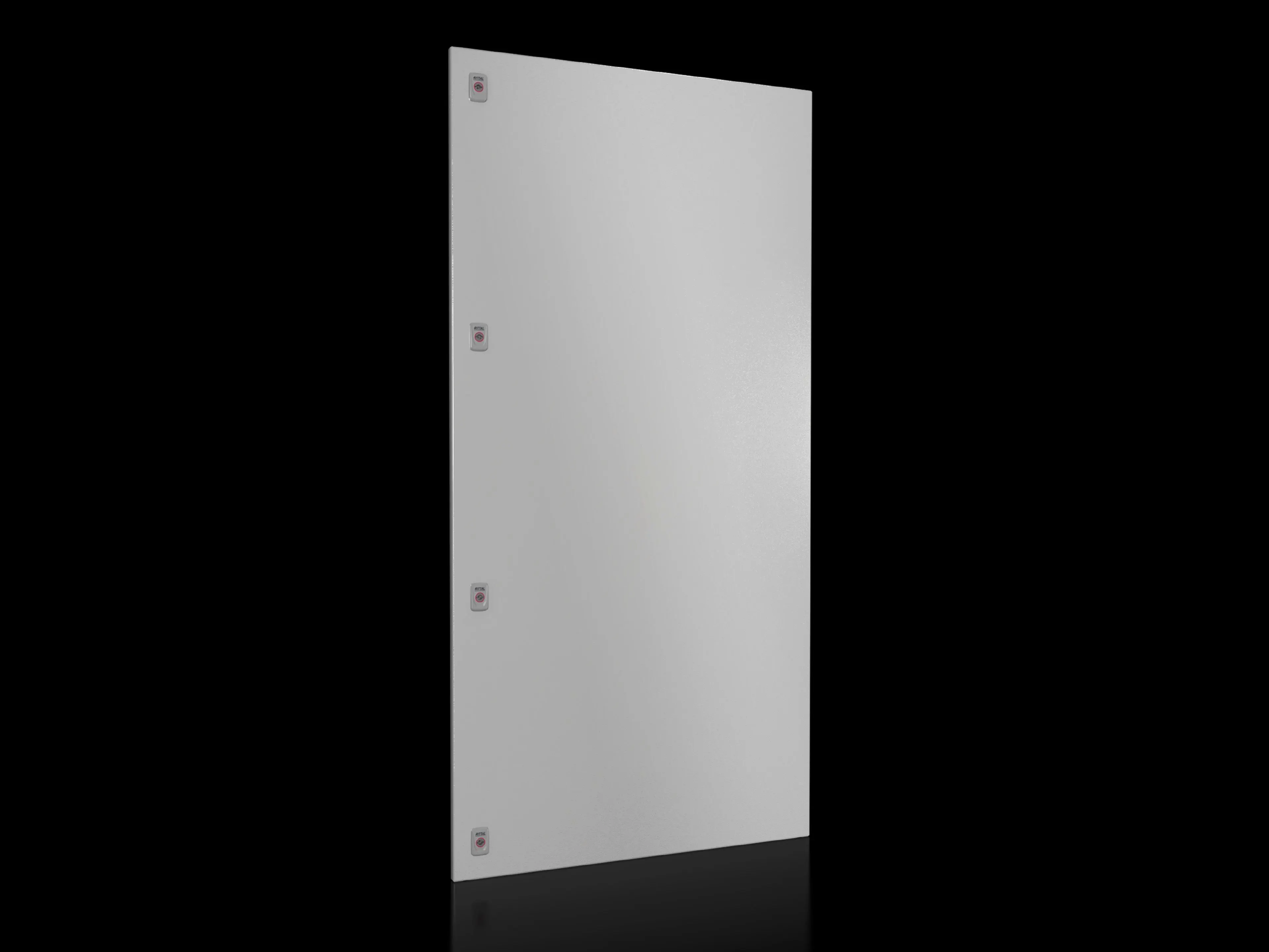

9682196 Rittal: VX Partial door, WH: 800x1600 mm sheet steel
Article number
SV 9682.196
Product description
Suitable for VX enclosures instead of a door or rear panel. The partial doors may be combined with one another as required. A trim panel is required at the top and bottom in each case. Door may be optionally hinged on the right or left. In the case of doors without viewing panel (height 600 – 1000 mm), monitor frame 2305.000 may be installed. Standard double-bit lock insert may be exchanged for lock inserts, type A.
Material
Sheet steel, 2 mm
Surface finish
Textured paint
Colour
RAL 7035
Supply includes
Partial door | Cross member | Hinges | Lock components | Assembly parts
Note
Opening angle of partial doors max. 130°
Lock
Number of locks: 4
Dimensions
Width: 800 mm | Height: 1,600 mm
To fit
Width: = 800 mm
IP protection category to IEC 60 529
IP 54
Packs of
1 pc(s).
Weight/pack
28 kg
PCF per pack (cradle-to-gate)
106.7 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177929050
ETIM 9
EC000747
ECLASS 8.0
27182204
Product description
VX Partial door, WH: 800x1600 mm sheet steel
Feature → Business Impact → Application: Hinged option on either the left or right side enables quick reconfiguration on VX enclosures, reducing downtime and enabling site-specific access layouts for maintenance and testing. This flexibility lowers service costs and shortens commissioning times for multi-bay installations. Feature → Business Impact → Application: 2 mm sheet steel with textured finish (RAL 7035) delivers durable, corrosion-resistant enclosure components suitable for factory floors, helping extend service intervals and lower repainting costs for harsh environments. Feature → Business Impact → Application: IP54 protection provides reliable dust and splash resistance, supporting compliance with typical industrial hygiene and safety standards in manufacturing and logistics settings. Feature → Business Impact → Application: Four-lock system enhances physical security against tampering, while compatibility with standard lock inserts (type A) offers upgrade options without full hardware replacement. Feature → Business Impact → Application: The inclusion of cross member, hinges, and assembly parts simplifies installation and ensures consistent alignment when combining partial doors with other VX modules. Feature → Business Impact → Application: Opening angle up to 130° improves front-end access for inspection and component replacement, reducing maintenance time in tight spaces. Feature → Business Impact → Application: Weight and pack configuration (28 kg per pack) support predictable handling and logistics planning, while cradle-to-gate PCF (106.7 kg CO2 eq) informs sustainability metrics for procurement.
