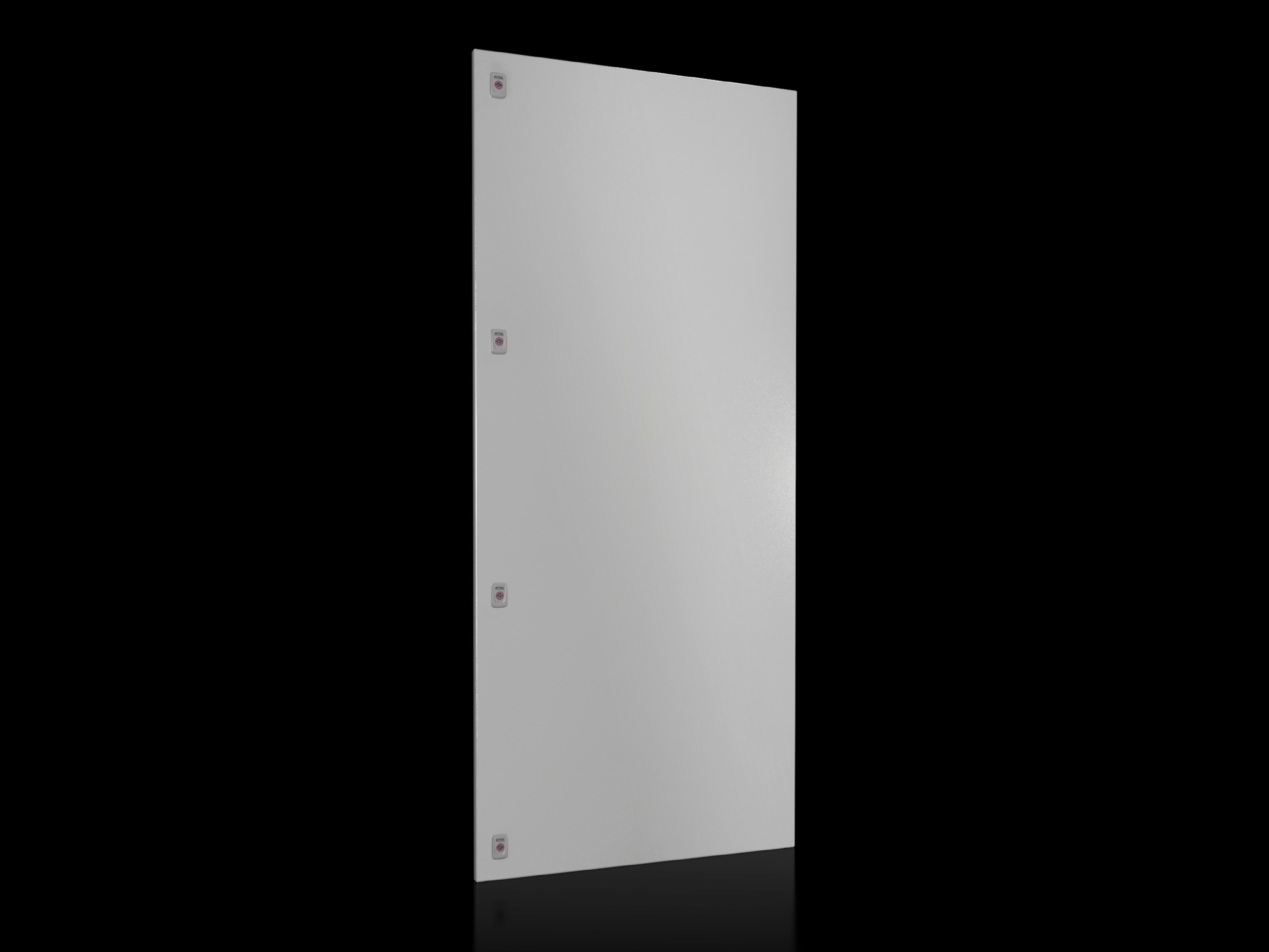

Rittal 9682198 VX Partial Door for VX Enclosures - IP54
Part Number: 9682198
Manufacturer
Rittal
Part number
9682198
Alt Part Number
SV 9682.198
Quick Summary
Rittal 9682198 VX Partial Door provides modular access for VX enclosures. Installing doors that fit varied trim setups and opening angles often causes costly downtime. The VX Partial Door carries IP54 protection, CE conformity, and ETIM/ECLASS classifications, ensuring compliance and interoperability across suppliers. Its 2 mm sheet steel construction with a textured RAL 7035 finish, a footprint of 800x1800 mm, the option for right or left hinge, and a robust four‑lock security system streamline maintenance and scale for future expansions in rugged industrial control cabinets.
Product Information
Extended Description
9682198 Rittal: VX Partial door, WH: 800x1800 mm sheet steel
Article number
SV 9682.198
Product description
Suitable for VX enclosures instead of a door or rear panel. The partial doors may be combined with one another as required. A trim panel is required at the top and bottom in each case. Door may be optionally hinged on the right or left. In the case of doors without viewing panel (height 600 – 1000 mm), monitor frame 2305.000 may be installed. Standard double-bit lock insert may be exchanged for lock inserts, type A.
Material
Sheet steel, 2 mm
Surface finish
Textured paint
Colour
RAL 7035
Supply includes
Partial door | Cross member | Hinges | Lock components | Assembly parts
Note
Opening angle of partial doors max. 130°
Lock
Number of locks: 4
Dimensions
Width: 800 mm | Height: 1,800 mm
To fit
Width: = 800 mm
IP protection category to IEC 60 529
IP 54
Packs of
1 pc(s).
Weight/pack
31 kg
PCF per pack (cradle-to-gate)
118.1 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177928763
ETIM 9
EC000747
ECLASS 8.0
27182204
Product description
VX Partial door, WH: 800x1800 mm sheet steel
Feature → Business Impact → Application: The 800x1800 mm footprint and 2 mm sheet steel construction deliver durable enclosure access in demanding environments, reducing maintenance frequency and enhancing cabinet integrity. This translates to lower downtime and longer service life for VX enclosures used in automation and electrical infrastructure. Application: Install as a partial door with top and bottom trim panels to achieve a clean, modular enclosure front that supports scalable configurations. Feature → Business Impact → Application: The textured paint in RAL 7035 provides corrosion resistance and consistent aesthetics across plants, aiding in regulatory audits and visual management. Application: Ideal for control panels and electrical cabinets requiring reliable yet adaptable access solutions. Feature → Business Impact → Application: Four locks and a 130° opening capability improve security and accessibility, enabling rapid maintenance while preserving enclosure integrity in production lines. Application: Use with standard lock inserts or upgrade to locking variants as needed. Feature → Business Impact → Application: IP54 protection guards against dust and moisture ingress, improving uptime in harsh manufacturing environments. Application: Particularly valuable in dusty or humid operation areas. Feature → Business Impact → Application: Supplied components—cross member, hinges, lock components, and assembly parts—reduce on‑site assembly time and total cost of ownership. Application: Accelerate commissioning and simplify field upgrades. Feature → Business Impact → Application: PCF 118.1 kg CO2 eq (Cat B) for cradle‑to‑gate accounting supports sustainability reporting. Application: Use in projects with environmental impact tracking and supplier carbon data requirements.
Get a Quick Quote for a Rittal 9682198
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9682198?
Enquire Now
FAQs
The SV 9682.198 is designed for VX enclosures and can replace a door or rear panel within the VX system. It supports right or left hinge configurations, comes with cross member, hinges, lock components, and assembly parts, and works with trim panels at top and bottom. For heights below 1000 mm you may need monitor frame 2305.000.
Key specs include width 800 mm, height 1,800 mm, 2 mm sheet steel construction, textured paint finish in RAL 7035, IP54 protection, weight 31 kg per pack, and 4 locks. The product description notes suitability for VX enclosures and 130° opening. It ships as a complete partial door package with necessary mounting hardware.
Yes. The door is designed for VX enclosures with IP54 protection, which guards against dust ingress and limited moisture. The 2 mm sheet steel construction and RAL 7035 finish provide durability and visibility in industrial settings. It also offers right or left hinge options and a 130° opening to ease maintenance access in tight spaces.
This VX Partial Door aligns with CE conformity and ETIM EC000747 and ECLASS 27182204 classifications, supporting interoperability and supplier data standardization. It carries an IP54 rating per IEC 60529, ensuring protective performance in dusty and damp environments, which helps meet industry and regulatory expectations for electrical enclosures.
The product has a cradle‑to‑gate PCF of 118.1 kg CO2 eq (Cat B), reflecting its environmental footprint based on weight and manufacturing processes. Each pack weighs 31 kg and includes complete assembly parts, enabling efficient packing and reduced logistics emissions. This data supports sustainability reporting and supplier qualification in modern automation projects.
