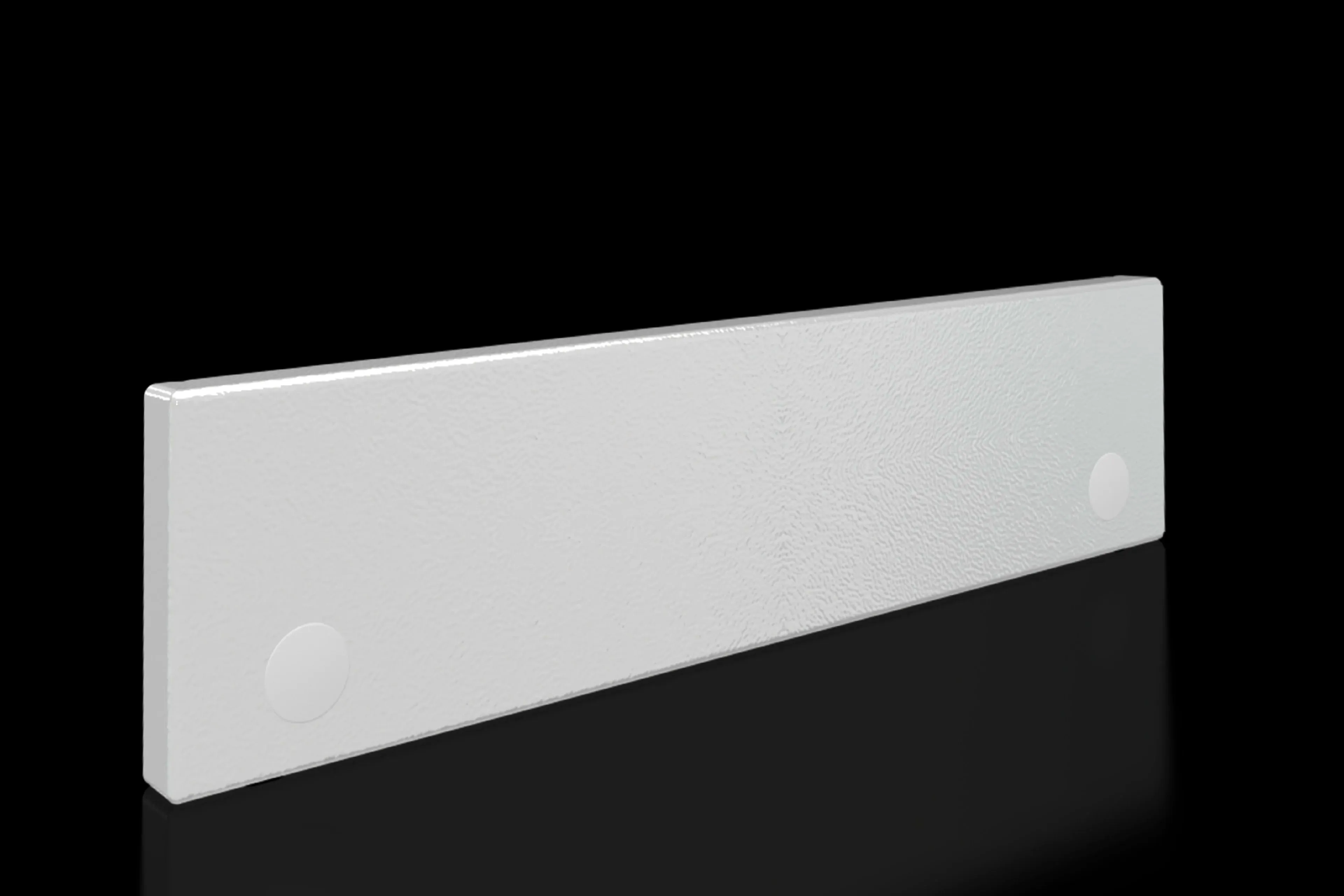

Rittal 9682314 VX Front trim - IP54
Part Number: 9682314
Manufacturer
Rittal
Part number
9682314
Alt Part Number
SV 9682.314
Quick Summary
Rittal 9682314 VX Front trim panel provides a top finishing solution for modular enclosures. When partial doors are used, exposed edges can compromise sealing and aesthetics; this trim panel conceals seams and preserves a clean, professional appearance. The design is IP54-rated and built from 1.5 mm sheet steel with textured paint in RAL 7035 to withstand harsh industrial environments. By integrating with the supplied cross member, it enables fast, repeatable installation while maintaining enclosure integrity. This solution aligns with ETIM EC000456 and ECLASS 27142423 classifications, supporting consistent data tagging and procurement workflows. For teams prioritizing durability, repeatable assembly, and a polished front, this part delivers tangible business value alongside standard enclosure infrastructure.
Product Information
Extended Description
9682314 Rittal: VX Front trim panel, top, IP 54, WH: 400x100 mm sheet steel
Article number
SV 9682.314
Design
solid
Product description
To finish off the modular front design at the top when using partial doors. The front trim panels may be removed from the outside by unscrewing. The cross member required for mounting is included with the supply of the mounted partial doors.
Material
Sheet steel, 1.5 mm
Surface finish
Textured paint
Colour
RAL 7035
Supply includes
Assembly parts
Dimensions
Height: 100 mm
To fit
Width: = 400 mm
Packs of
1 pc(s).
Weight/pack
1.01 kg
PCF per pack (cradle-to-gate)
3.8 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177929630
ETIM 9
EC000456
ECLASS 8.0
27142423
Product description
VX Front trim panel, top, IP 54, WH: 400x100 mm sheet steel
Feature: Top finishing for modular fronts. Benefit: Improves aesthetics and edge protection, reducing field corrosion and ingress risk, which translates to lower maintenance costs and longer service life in harsh environments. Application: Ideal for Rittal modular enclosures using partial doors where a seamless top line is required. Feature: Solid 1.5 mm sheet steel construction. Benefit: Robust, rigid framing that resists impact and vibration, delivering dependable performance in factory floors and data centers. Application: Suitable for vertical wall installs and top trims where mechanical resilience matters. Feature: Textured paint in RAL 7035. Benefit: Uniform appearance with easy cleaning and long-term color stability, supporting brand consistency across large installations. Application: Common in OEM production lines and automation cabinets. Feature: Removable from outside with included cross member. Benefit: Simplifies servicing and updates without dismantling entire front assemblies, reducing downtime. Application: Fits both new builds and retrofit projects with modular doors. Feature: Lightweight 1.01 kg per pack and compact footprint. Benefit: Reduces handling risk and shipping costs while enabling efficient packaging and storage. Application: Suitable for multi-site deployments and fleet rollouts. Feature: PCF 3.8 kg CO2 eq (Cat B). Benefit: Environmentally conscious design data supports sustainability reporting and green procurement initiatives. Application: Helps meet internal carbon footprint targets and supplier ESG requirements. Feature: Includes assembly parts and 1-piece packs. Benefit: Speeds procurement and reduces part-count surprises during installation. Application: Ideal for fast-tracked projects and standardization across multiple SKUs.
