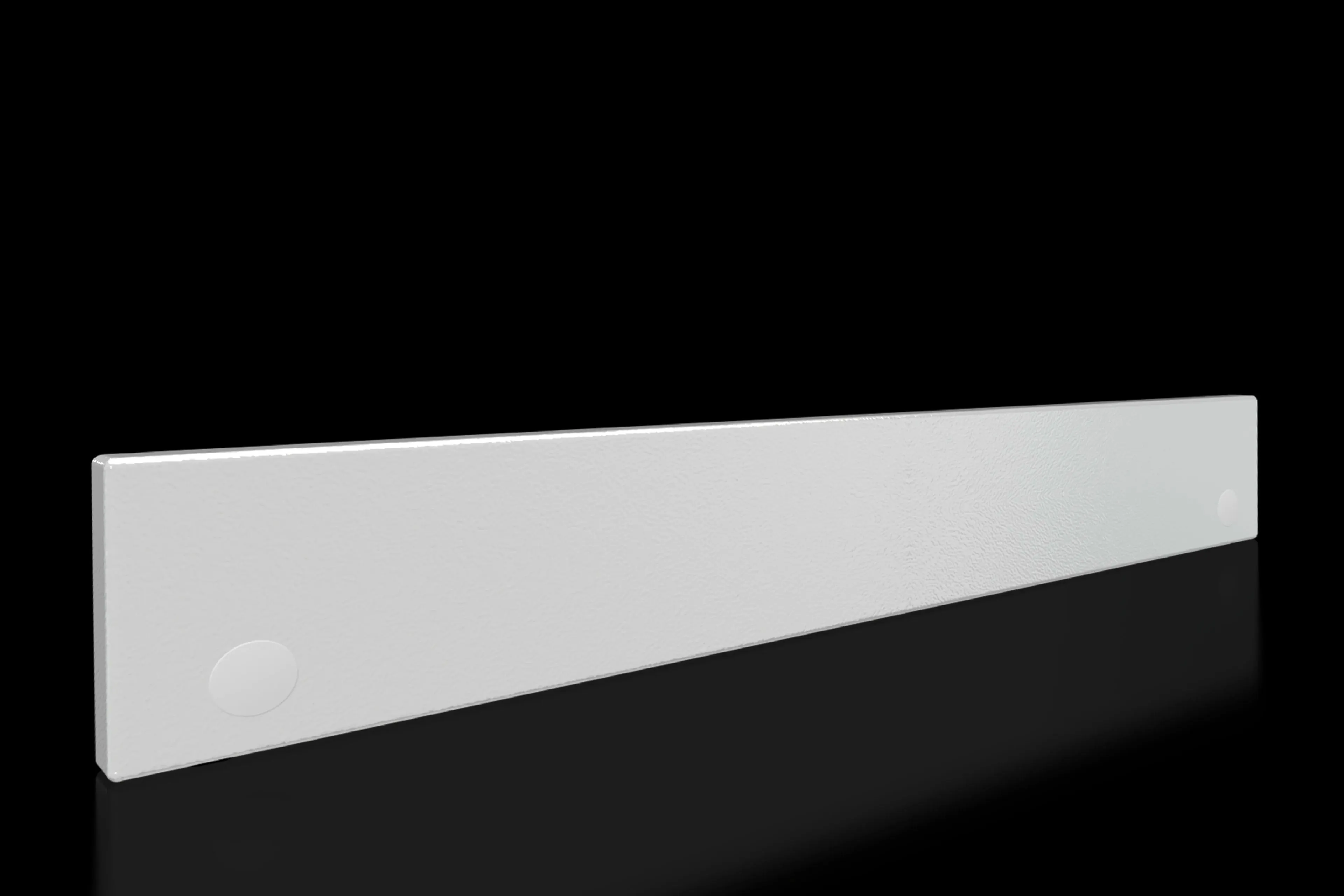

Rittal SV 9682.316 VX Front Trim Panel - IP54
Part Number: 9682316
Manufacturer
Rittal
Part number
9682316
Alt Part Number
SV 9682.316
Quick Summary
Rittal SV 9682.316 VX Front trim panel finishes the top when using partial doors. It addresses the common challenge of achieving a clean, gap-free top edge in partial-door configurations by providing a removable, exterior-access solution. With IP54 protection and classifications ETIM EC000456 and ECLASS 27142423, it supports reliable performance and precise procurement data. Designed for VX front systems with a textured RAL 7035 finish, it enables fast installation, consistent aesthetics, and helps reduce total cost of ownership through easier maintenance and standardized parts.
Product Information
Extended Description
9682316 Rittal: VX Front trim panel, top, IP 54, WH: 600x100 mm sheet steel
Article number
SV 9682.316
Design
solid
Product description
To finish off the modular front design at the top when using partial doors. The front trim panels may be removed from the outside by unscrewing. The cross member required for mounting is included with the supply of the mounted partial doors.
Material
Sheet steel, 1.5 mm
Surface finish
Textured paint
Colour
RAL 7035
Supply includes
Assembly parts
Dimensions
Height: 100 mm
To fit
Width: = 600 mm
Packs of
1 pc(s).
Weight/pack
1.42 kg
PCF per pack (cradle-to-gate)
5.4 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177929623
ETIM 9
EC000456
ECLASS 8.0
27142423
Product description
VX Front trim panel, top, IP 54, WH: 600x100 mm sheet steel
Feature: Top trim panel is 100 mm high and 600 mm wide, manufactured from 1.5 mm sheet steel with a textured paint finish in RAL 7035. Business Impact: Delivers a durable, corrosion-resistant top edge that maintains enclosure aesthetics while protecting internal components from dust and accidental contact. Application: Ideal for VX modular fronts on standard 600 mm wide enclosures. Feature: IP54 protection rating. Business Impact: Enables safe operation in dusty or splash-prone environments, reducing risk of contamination and downtime. Application: Suitable for industrial automation cabinets in manufacturing and process environments. Feature: Removable from the outside by unscrewing. Business Impact: Accelerates maintenance and front-panel access without disassembling doors or interior components. Application: Supports partial-door configurations where quick top-edge access is required. Feature: Supplied with assembly parts. Business Impact: Simplifies installation and ensures correct mounting geometry, reducing on-site assembly time. Application: Compatible with standard VX mounting cross members and front designs. Feature: Weight and sustainability data. Business Impact: Lightweight handling (1.42 kg per pack) with a measured PCF of 5.4 kg CO2 eq (Category B) supports greener procurement and easier handling. Application: Favorable for projects with sustainability reporting and lifecycle assessments. Feature: Additional specifications and compliance. Business Impact: Clear cataloging via ETIM EC000456 and ECLASS 27142423 improves procurement workflows and interoperability. Application: Streamlines sourcing in ERP/MIM systems and compliance documentation.
Get a Quick Quote for a Rittal 9682316
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9682316?
Enquire Now
FAQs
The trim panel is designed to be screwed in from the outside and includes the required cross member for mounting. It fits a 600 mm wide VX front and uses standard assembly parts, enabling a quick, tool-friendly installation without disassembling the cabinet.
Key specs include a 100 mm height, 600 mm width, 1.5 mm sheet steel construction, textured paint in RAL 7035, IP54 rating, weight about 1.42 kg per pack, and EAN 4028177929623. It is ETIM EC000456 and ECLASS 27142423 compliant.
Yes. The SV 9682.316 is specifically designed to finish the modular VX front top when partial doors are used, and it can be removed from outside by unscrewing for straightforward maintenance access.
The panel provides IP54 protection and is classified under ETIM EC000456 and ECLASS 27142423, supporting data consistency for procurement and compliance workflows.
The panel offers easy external removal, quick installation with included assembly parts, and a robust top-edge finish that reduces wear. It also contributes to sustainability with a PCF of 5.4 kg CO2 eq per pack and weighs only 1.42 kg, aiding handling and lifecycle assessments.
