Rittal 9682318 VX Front Trim Panel for Enclosures - IP54
Part Number: 9682318
Manufacturer
Rittal
Part number
9682318
Alt Part Number
SV 9682.318
Quick Summary
Rittal VX Front Trim Panel 9682318 finishes top fronts on modular enclosures, ensuring a clean, gap-free appearance. It addresses the common challenge of incomplete top finishes when using partial doors by providing a robust, removable exterior option. With IP54 protection, CE‑compliant construction, and a textured RAL 7035 finish, it withstands demanding industrial environments. The combination of fast installation, straightforward maintenance, and a consistent color and surface profile supports reliable, scalable plant builds and streamlined procurement.
Product Information
Extended Description

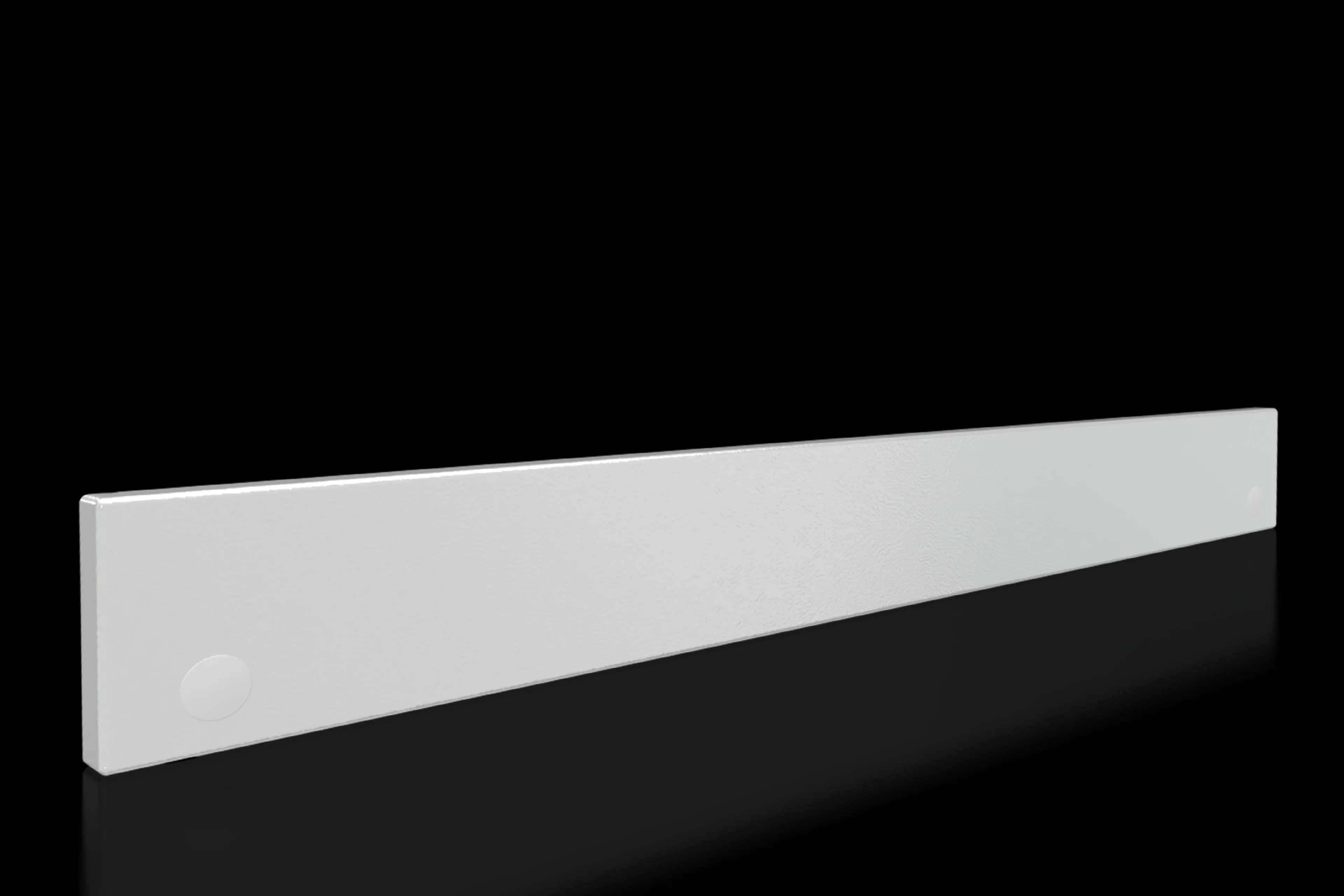

9682318 Rittal: VX Front trim panel, top, IP 54, WH: 800x100 mm sheet steel
Article number
SV 9682.318
Design
solid
Product description
To finish off the modular front design at the top when using partial doors. The front trim panels may be removed from the outside by unscrewing. The cross member required for mounting is included with the supply of the mounted partial doors.
Material
Sheet steel, 1.5 mm
Surface finish
Textured paint
Colour
RAL 7035
Supply includes
Assembly parts
Dimensions
Height: 100 mm
To fit
Width: = 800 mm
Packs of
1 pc(s).
Weight/pack
1.86 kg
PCF per pack (cradle-to-gate)
7.1 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177929654
ETIM 9
EC000456
ECLASS 8.0
27142423
Product description
VX Front trim panel, top, IP 54, WH: 800x100 mm sheet steel
Feature: Top trim panel in solid sheet steel 1.5 mm with IP54 rating. Business Impact: Delivers durable, dust- and water‑resistant top-edge finishing that reduces rework and protects internal components. Application: Ideal for modular enclosures using partial doors where top aesthetics and integrity matter. Feature: Front trim removal from outside by unscrewing. Business Impact: Facilitates rapid maintenance and quick access to internal components without disassembling doors. Application: Useful in field service, retrofits, and planned modifications of existing installations. Feature: Cross member included with mounted partial doors. Business Impact: Cuts installation time and eliminates separate hardware sourcing, improving installation certainty. Application: Retrofit or upgrade projects in high-change environments. Feature: Textured paint finish in RAL 7035. Business Impact: Provides a durable, easy‑to-clean surface that maintains appearance in harsh environments and simplifies color coding. Application: Factory floors, control rooms, and outdoor installations. Feature: Lightweight pack and ecological footprint (1.86 kg per pack; 7.1 kg CO2 eq PCF). Business Impact: Reduces transport weight and carbon footprint while preserving rigidity and service life. Application: Global supply chains and sustainability‑aware projects.
Get a Quick Quote for a Rittal 9682318
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9682318?
Enquire Now
FAQs
To install the SV 9682.318 trim panel, align the panel with the enclosure’s top edge, engage the panel with the existing mounting points, and secure it by unscrewing from the outside if needed. The supplied cross member simplifies mounting for partial doors, reducing install time and ensuring a rigid finish.
Key specifications include solid design in 1.5 mm sheet steel, IP54 protection, dimensions of 800x100 mm, textured paint in RAL 7035, and a weight of 1.86 kg per pack. It’s designed to finish the modular front top when partial doors are used and can be removed from the outside for maintenance, integrating with the mounted door cross member.
Yes, the panel is IP54 rated, ensuring dust and water ingress protection suitable for harsh environments. Maintenance is minimal: clean with mild detergents, inspect fasteners during routine service, and replace or reseat the panel if any screws loosen. The textured finish helps maintain aesthetics with minimal upkeep.
The product has a PCF (cradle-to-gate) value of 7.1 kg CO2 eq per pack (Category B). This supports lifecycle assessments and green procurement strategies. Its relatively light weight (1.86 kg per pack) also reduces transport emissions and logistics footprint in large deployments.
The supply includes assembly parts necessary to mount the top trim panel with the cross member for partial doors. The article SV 9682.318 corresponds to the VX Front trim panel, top, IP54. Replacement screws and mounting hardware can be ordered as needed, ensuring continued compatibility with Rittal enclosure systems.
