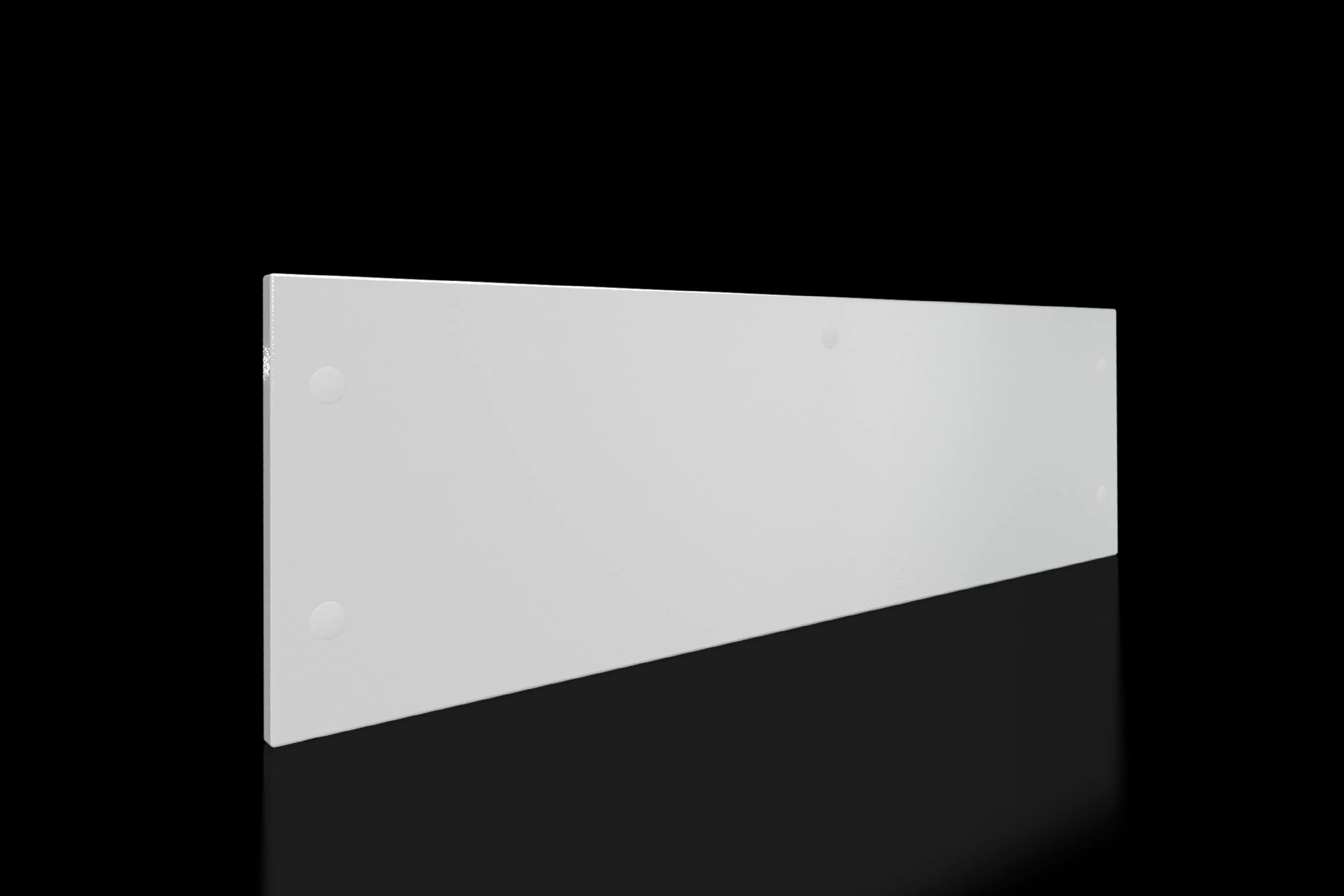

Rittal 9682320 VX Front Trim Panel - Top IP54
Part Number: 9682320
Manufacturer
Rittal
Part number
9682320
Alt Part Number
SV 9682.320
Quick Summary
Rittal VX Front Trim Panel provides a clean top finish for modular enclosures used in control cabinets. When using partial doors, misaligned edges can compromise IP protection and aesthetics. Key standards include IP54 environmental protection for exterior panels, ETIM EC000456 classification, and ECLASS 27142423 alignment to ensure interoperability. This trim panel is lightweight to install, integrates with the mounting cross member, and ships with assembly parts for faster deployment. By standardizing the top finish, it reduces rework, improves enclosure aesthetics, and supports durable, compliant installations. Users in industrial automation and data centers benefit from straightforward replacement and color-consistent visuals, aligning with common cabinet footprints and RAL 7035 color requirements.
Product Information
Extended Description
9682320 Rittal: VX Front trim panel, top, IP 54, WH: 1000x300 mm sheet steel
Article number
SV 9682.320
Design
solid
Product description
To finish off the modular front design at the top when using partial doors. The front trim panels may be removed from the outside by unscrewing. The cross member required for mounting is included with the supply of the mounted partial doors.
Material
Sheet steel, 1.5 mm
Surface finish
Textured paint
Colour
RAL 7035
Supply includes
Assembly parts
Dimensions
Height: 300 mm
To fit
Width: = 1,000 mm
Packs of
1 pc(s).
Weight/pack
4.8 kg
PCF per pack (cradle-to-gate)
18.3 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177929685
ETIM 9
EC000456
ECLASS 8.0
27142423
Product description
VX Front trim panel, top, IP 54, WH: 1000x300 mm sheet steel
Feature: Top-front trim design delivers a seamless, professional cabinet appearance. Business Impact: Improves visual integrity and protection at enclosure junctions, reducing rework and service calls. Application: Ideal for manufacturing floors and control rooms where aesthetics and protection matter. Feature: IP54 protection on the top trim panel. Business Impact: Shields internal components from dust and splash, extending component life and reducing downtime. Application: Environments with dust, humidity, or occasional water exposure. Feature: 1.5 mm sheet steel with textured paint in RAL 7035. Business Impact: Combines durability with easy-to-clean surfaces and color consistency, lowering maintenance costs. Application: Heavy-use enclosures in automotive, food & beverage, and automation installations. Feature: Supplied with assembly parts and removable from outside. Business Impact: Simplifies installation and maintenance, shortening downtime during door servicing. Application: Field upgrades and partial-door configurations. Feature: Cross member included for mounting stability. Business Impact: Ensures rigid alignment and secure mounting, reducing vibration and wear. Application: Standard 1000 mm wide enclosures to preserve front integrity. Feature: PCF and sustainability data. Business Impact: Supports LCAs and sustainability reporting, aiding procurement decisions. Application: Projects with green-compliance targets and supplier assessments.
Get a Quick Quote for a Rittal 9682320
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9682320?
Enquire Now
FAQs
To install, align the trim panel to the top edge of the enclosure, attach using the supplied assembly parts, and use the included cross member for mounting stability. The panel is designed to be removed from the outside by unscrewing, which simplifies maintenance when partial doors are in use. Ensure a clean, dry mounting surface and verify the 1.5 mm steel thickness is compatible with your cabinet depth.
The SV 9682.320 front trim panel provides IP54 protection, guarding against dust ingress and splashes from common workshop environments. It uses 1.5 mm sheet steel finished in textured paint (RAL 7035), offering durable surface protection and long-term color retention in demanding industrial settings.
Yes. The VX Front Trim Panel aligns with ETIM 9 EC000456 and ECLASS 8.0 27142423 classifications, ensuring consistent product data across procurement and specification systems. This compatibility supports smoother integrations with ERP/product catalogs and improves data accuracy for engineers and buyers.
The trim panel is designed for a 1000 mm width with a height of 300 mm. It ships as a single pack containing assembly parts and weighs approximately 4.8 kg per pack. The product is supplied as 1 piece per pack, suitable for standard 1000 mm wide enclosures and quick reorder in projects.
Using the VX Front Trim Panel delivers a clean, professional top finish that protects internal components and maintains enclosure integrity. It reduces installation time, supports compliance with standard data models (ETIM/ECLASS), and helps meet aesthetic and protective requirements in high-availability environments, contributing to lower maintenance costs and improved uptime.
