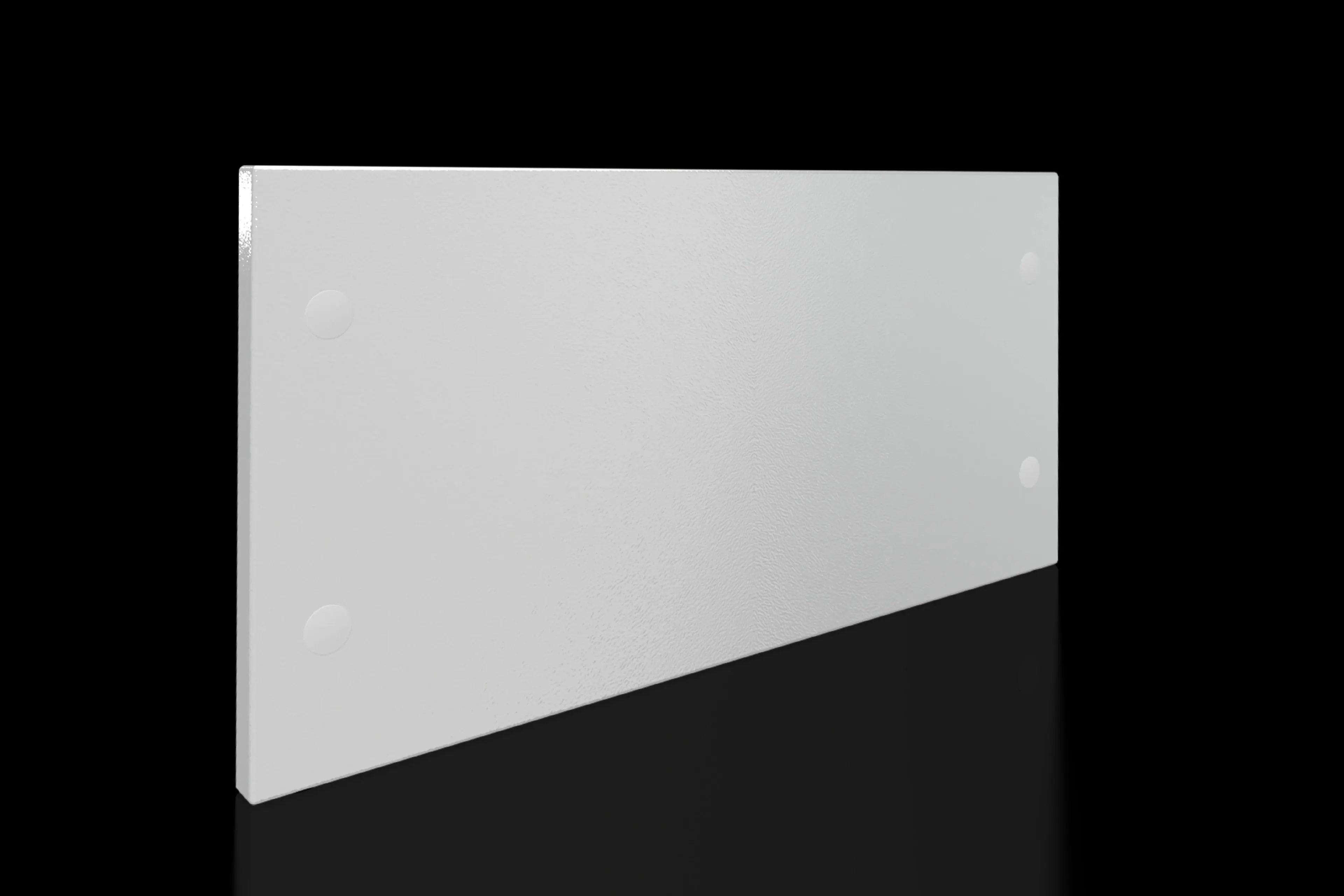

Rittal SV 9682.326 VX Front trim panel - IP 54
Part Number: 9682326
Manufacturer
Rittal
Part number
9682326
Alt Part Number
SV 9682.326
Quick Summary
VX Front trim panel finishes the top edge of modular enclosures, delivering a clean, professional look for installations with partial doors. It resolves the common challenge of exposed tops and uneven front lines by providing a precise, removable trim. The part carries IP 54 protection and fits a 600x300 mm footprint, with 1.5 mm sheet steel and a textured RAL 7035 finish. Certifications like IP rating support dust and splash protection, while ETIM 9 EC000456 and ECLASS 8.0 27142423 assist procurement alignment; CE or SIL declarations are not listed here and should be verified against local requirements. Overall, this trim improves aesthetics, reduces field rework, and supports faster, more reliable panel builds in industrial environments.
Product Information
Extended Description
9682326 Rittal: VX Front trim panel, top, IP 54, WH: 600x300 mm sheet steel
Article number
SV 9682.326
Design
solid
Product description
To finish off the modular front design at the top when using partial doors. The front trim panels may be removed from the outside by unscrewing. The cross member required for mounting is included with the supply of the mounted partial doors.
Material
Sheet steel, 1.5 mm
Surface finish
Textured paint
Colour
RAL 7035
Supply includes
Assembly parts
Dimensions
Height: 300 mm
To fit
Width: = 600 mm
Packs of
1 pc(s).
Weight/pack
3.14 kg
PCF per pack (cradle-to-gate)
12 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177929678
ETIM 9
EC000456
ECLASS 8.0
27142423
Product description
VX Front trim panel, top, IP 54, WH: 600x300 mm sheet steel
Top-edge finishing with partial doors improves aesthetics and seal continuity, reducing gaps and dust ingress while maintaining front integrity for harsh environments. This translates to fewer field touch-ups, lower maintenance costs, and a more professional appearance across multiple panels in data centers and industrial controls. The VX Front trim panel is designed to integrate seamlessly with existing Rittal enclosures, supporting standardized front designs and repeatable installations in high-volume production lines. The combination of form and function helps OEMs meet tight project timelines without sacrificing enclosure performance or aesthetic consistency. The 600x300 mm footprint and 1.5 mm sheet steel construction offer a robust, vibration-resistant interface that stands up to daily industrial use, with a textured paint finish that resists wear and weathering. In practice, engineers gain predictable fitment and faster commissioning with fewer retrofit adjustments.
Get a Quick Quote for a Rittal 9682326
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9682326?
Enquire Now
FAQs
The VX Front trim panel attaches to the top of the enclosure and is supplied with the necessary assembly parts. It can be installed from the outside by unscrewing, and includes the cross member required for mounting with mounted partial doors. The standard footprint is 600x300 mm, designed for compatibility with 600 mm wide sections.
Key specs include solid design, 1.5 mm sheet steel material, textured paint surface, and a 600x300 mm footprint. The product is finished in RAL 7035, weighs 3.14 kg per pack, and is designated as SV 9682.326 with EAN 4028177929678. It is IP54 rated and supplied with assembly parts.
The available data specifies IP54 protection and classification codes (ETIM EC000456, ECLASS 27142423). CE or SIL declarations are not listed here; verify with your compliance team or supplier to confirm regulatory certification for your specific use case.
Yes. The VX Front trim panel is designed to finish the modular front design at the top when partial doors are used. It includes a cross member for mounting and allows external removal by unscrewing, enabling quick retrofits without disassembling the enclosure interior.
PCF per pack is 12 kg CO2 eq (Cat B), based on cradle-to-gate assessment. The weight per pack is 3.14 kg, and the package includes assembly parts. This data aids lifecycle assessments and procurement planning within ETIM/ECLASS-aligned ERP workflows.
