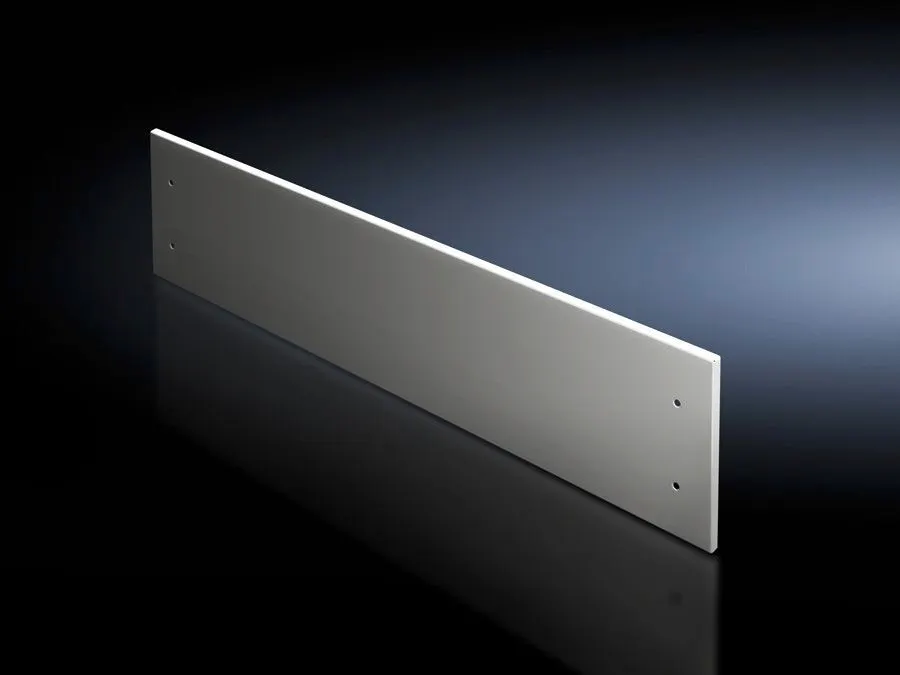

Rittal 9682328 VX Front Trim Panel - IP54
Part Number: 9682328
Manufacturer
Rittal
Part number
9682328
Alt Part Number
SV 9682.328
Quick Summary
Rittal 9682328 VX Front Trim Panel completes modular enclosure fronts when using partial doors. It eliminates gaps and unfinished edges, delivering a clean, professional look while simplifying maintenance in control rooms and manufacturing cells. With IP54 protection, solid sheet steel construction and a textured RAL 7035 finish, this accessory supports reliable operation in demanding environments. The product integrates smoothly with VX front designs and partial-door configurations, delivering installation efficiency and lifecycle value for panel builders and OEMs alike.
Product Information
Extended Description
9682328 Rittal: VX Front trim panel, top, IP 54, WH: 800x300 mm sheet steel
Article number
SV 9682.328
Design
solid
Product description
To finish off the modular front design at the top when using partial doors. The front trim panels may be removed from the outside by unscrewing. The cross member required for mounting is included with the supply of the mounted partial doors.
Material
Sheet steel, 1.5 mm
Surface finish
Textured paint
Colour
RAL 7035
Supply includes
Assembly parts
Dimensions
Height: 300 mm
To fit
Width: = 800 mm
Packs of
1 pc(s).
Weight/pack
4.08 kg
PCF per pack (cradle-to-gate)
15.5 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177929661
ETIM 9
EC000456
ECLASS 8.0
27142423
Product description
VX Front trim panel, top, IP 54, WH: 800x300 mm sheet steel
Feature → Business Impact → Application: The VX Front Trim Panel is built from sheet steel, 1.5 mm thick, delivering robust durability and IP54 protection for front-edge applications on modular enclosures. This translates to lower field rework and longer cabinet life in harsh environments, ideal for industrial control cabinets with partial doors. Feature → Business Impact → Application: Dimensions are 300 mm high and 800 mm wide, with a weight of 4.08 kg and packaging as a single unit, enabling straightforward handling and installation by a single technician on the factory floor. Feature → Business Impact → Application: Textured paint in RAL 7035 provides corrosion resistance and aesthetic consistency across industrial facilities, reducing repaint cycles and ensuring compliant appearance in maintenance windows. Feature → Business Impact → Application: Supplied with assembly parts and a cross member for mounting partial doors, which shortens setup time and eliminates the need for additional components, speeding up project timelines in control cabinet builds. Feature → Business Impact → Application: PCF per pack of 15.5 kg CO2 eq (Cat B) highlights sustainable design while offering predictable lifecycle impact for procurement teams; Fits 800 mm wide enclosures and supports 1-pack installation for low stock complexity. Feature → Business Impact → Application: To fit specifications confirm width = 800 mm; this predictable dimension ensures seamless compatibility with standard 800 mm VX enclosure frames, reducing design changes and warranty risk.
Get a Quick Quote for a Rittal 9682328
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9682328?
Enquire Now
FAQs
SV 9682.328 is designed for VX front designs and works seamlessly when using partial doors. It includes the cross member needed for mounting and comes with assembly parts, ensuring a straightforward installation on 800 mm wide frames without custom adapters.
The trim panel uses 1.5 mm sheet steel with a textured paint finish in RAL 7035, providing robust mechanical protection and corrosion resistance. The unit achieves IP54 protection, suitable for interior industrial environments where dust and moisture control are important.
Yes. The VX Front trim panel is specifically designed to be removable from the outside by unscrewing, allowing quick access to the mounted partial doors and cross member when service or upgrades are needed.
The product is associated with ETIM 9 EC000456 and ECLASS 8.0 27142423 classifications, ensuring compatibility with typical specification systems. It also carries a GTIN (4028177929661) for traceability and catalog consistency.
Installation is simplified by including assembly parts and a mounting cross member, reducing field time and component sourcing. The unit weighs 4.08 kg and has a PCF of 15.5 kg CO2 eq (Cat B), supporting sustainability goals while delivering faster project completion and lower lifecycle costs.
