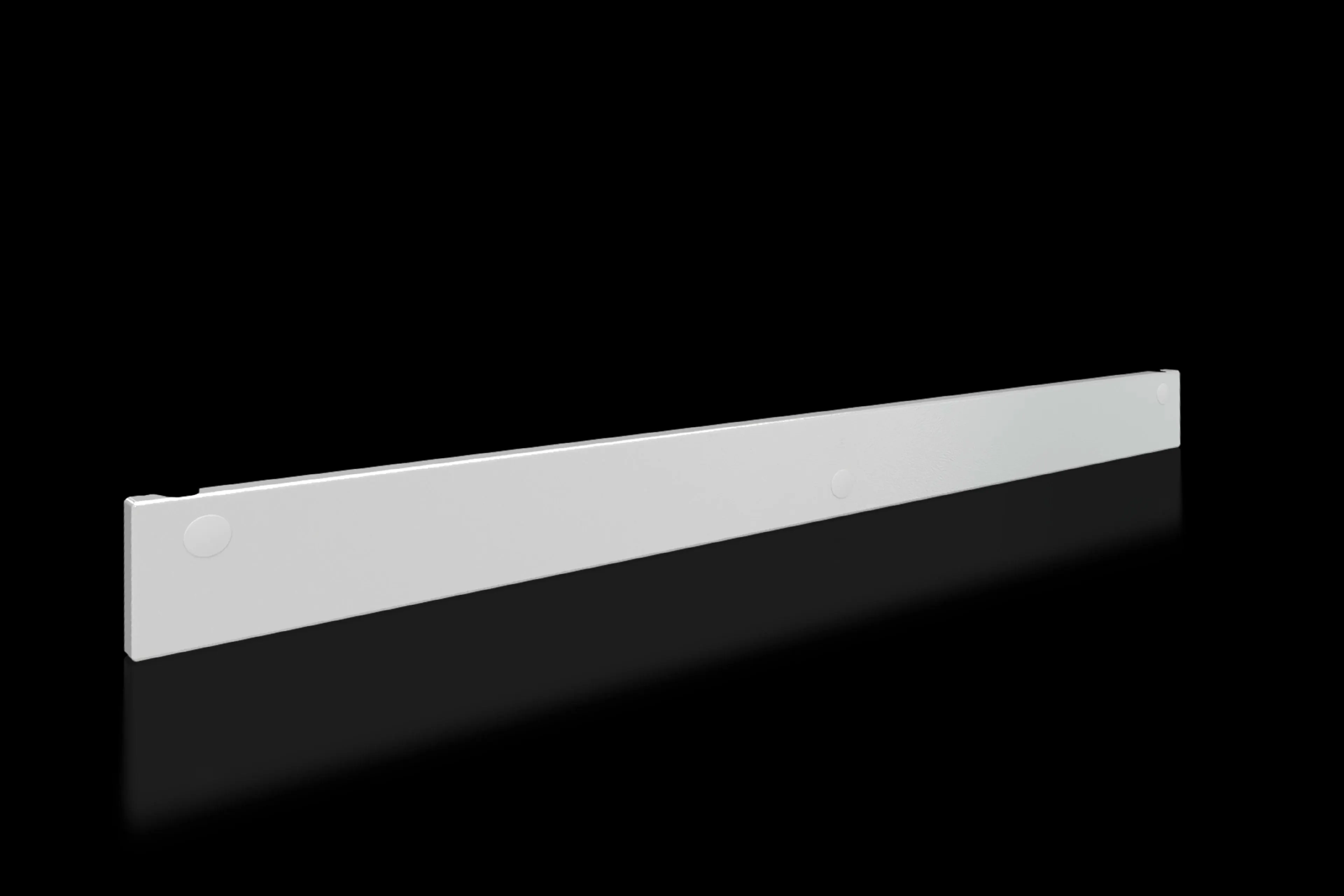

Rittal 9682330 VX Front Trim Panel - IP54, 1000x100 mm
Part Number: 9682330
Manufacturer
Rittal
Part number
9682330
Alt Part Number
SV 9682.330
Quick Summary
Rittal 9682330 VX Front Trim Panel is a bottom finishing accessory for modular enclosures. It closes gaps at the base when using partial doors, delivering a neat and secure enclosure. This accessory supports CE certification and IP54 protection, and aligns with ETIM EC000456 and ECLASS 27142423 classifications for dependable sourcing. By choosing this trim panel, installers gain faster service access and consistent finishes across projects, reducing rework and inventory miscounts. The included cross member and assembly parts streamline installation, while the 1.5 mm sheet steel construction provides durability in challenging industrial environments.
Product Information
Extended Description
9682330 Rittal: VX Front trim panel, bottom, IP 54, WH: 1000x100 mm sheet steel
Article number
SV 9682.330
Design
Solid
Product description
To finish off the modular front design at the bottom when using partial doors. The front trim panels may be removed from the outside by unscrewing.
Material
Sheet steel, 1.5 mm
Surface finish
Textured paint
Colour
RAL 7035
Supply includes
Front trim panel | Cross member | Assembly parts
Dimensions
Height: 100 mm
To fit
Width: = 1,000 mm
Packs of
1 pc(s).
Weight/pack
3.28 kg
PCF per pack (cradle-to-gate)
12.5 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177929913
ETIM 9
EC000456
ECLASS 8.0
27142423
Product description
VX Front trim panel, bottom, IP 54, WH: 1000x100 mm sheet steel
Solid sheet steel construction at 1.5 mm thickness delivers durable protection for cabinet bases, reducing wear and maintenance costs in harsh environments. The textured paint finish in RAL 7035 provides a robust, fade-resistant appearance that maintains a professional look across facilities, contributing to brand consistency and audit readiness. The bottom VX trim panel is designed to finish the modular front when using partial doors, with external unscrewing capability that minimizes downtime during service or reconfiguration. Supply includes a cross member and assembly parts, enabling quicker on-site installation and predictable assembly times, which lowers labor costs and project risk. With IP54 protection, the enclosure remains protected against dust ingress and splashing water, supporting reliable operation in dusty manufacturing floors. The pack weight of 3.28 kg facilitates straightforward handling and logistics, improving installation planning and inventory management. Overall, this accessory aligns with sustainability targets via a documented PCF of 12.5 kg CO2 eq per pack (Cat B), supporting greener procurement decisions. The 1000 mm width and 100 mm height ensure a consistent finish across standard VX front configurations, simplifying stocking and reducing the need for multiple SKUs.
Get a Quick Quote for a Rittal 9682330
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9682330?
Enquire Now
FAQs
The VX Front Trim Panel SV 9682.330 is designed for modular enclosures with VX fronts and partial-door configurations. It spans 1000 mm in width and 100 mm in height, and ships with a cross member and assembly parts for straightforward installation. The external removal capability allows service access without full door removal, reducing maintenance time and preserving enclosure integrity.
SV 9682.330 carries IP54 protection, ensuring ingress protection against dust and splashes. It is associated with CE compliance and industry classifications such as ETIM EC000456 and ECLASS 27142423, supporting standardized procurement and cross-component compatibility. The EAN 4028177929913 also aids in accurate product identification in supply chains.
Yes. The front trim panel is designed to be unscrewed from the outside, enabling maintenance, inspections, or door reconfiguration without disassembly of the entire enclosure. This feature minimizes downtime and simplifies routine servicing, especially in high-availability environments where space and access are critical.
Plan for a 1000 mm width and 100 mm height fit on VX front configurations. The bundle includes a cross member and assembly parts to streamline mounting, and the panel weighs 3.28 kg per pack for easy handling. Ensure surface finish remains intact by following the textured paint care guidelines, and verify color match to RAL 7035 during installation for visual consistency.
The package has a PCF of 12.5 kg CO2 eq per pack (Category B), cradle-to-gate. This metric supports greener procurement decisions by providing a quantified emissions footprint. When planning large deployments, aggregating these values helps compare enclosure accessories on total lifecycle impact, alongside price and performance.
