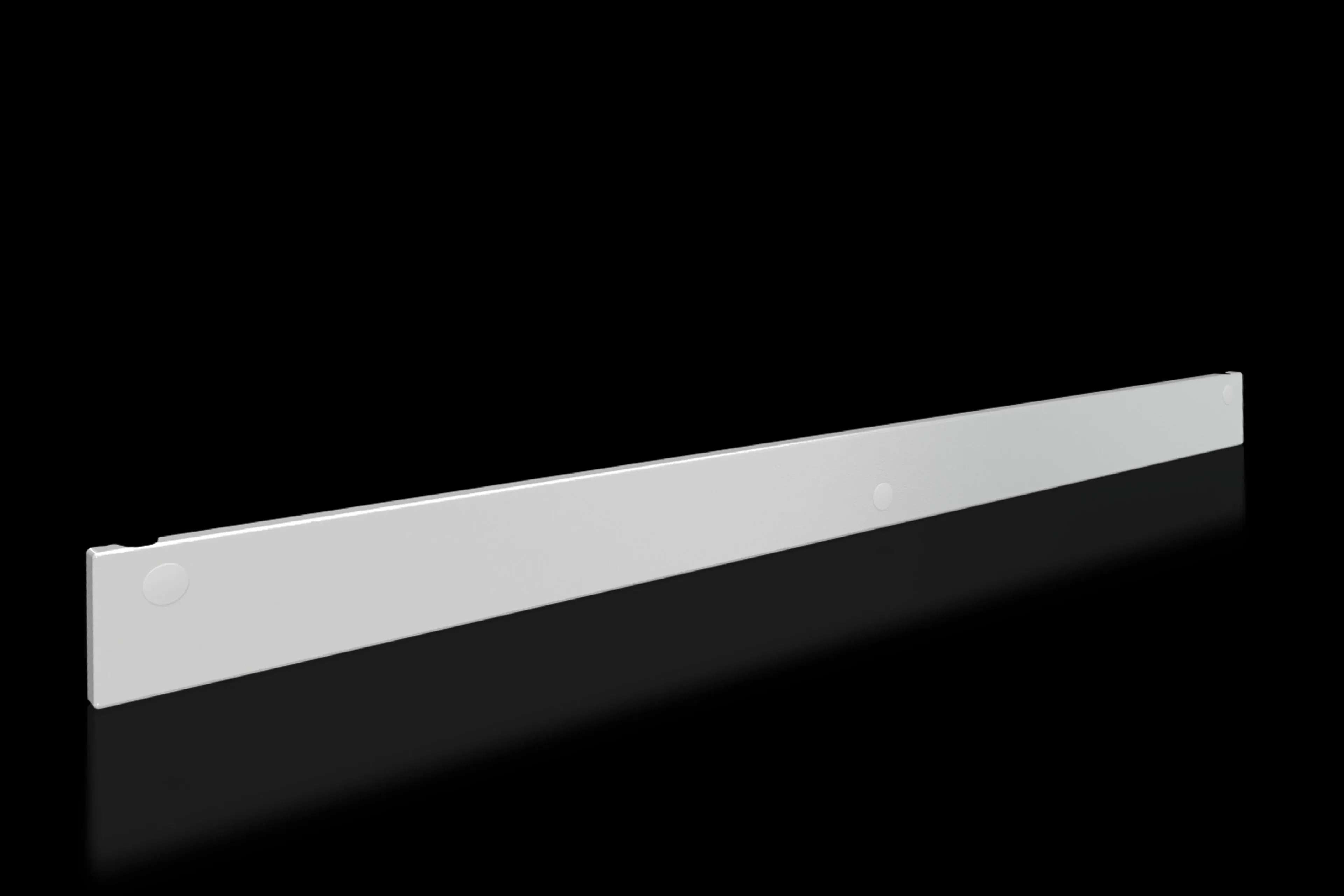

Rittal SV 9682.332 Front Trim Panel - IP54, 100 mm High
Part Number: 9682332
Manufacturer
Rittal
Part number
9682332
Alt Part Number
SV 9682.332
Quick Summary
The Rittal SV 9682.332 Front Trim Panel provides bottom finishing for modular enclosure fronts, ensuring a clean and professional appearance. For engineers and maintenance teams, partial doors can create gaps, complicating sealing and aesthetics; this trim panel delivers a consistent edge with minimal tool effort. It carries IP54 protection, is classified under ETIM EC000456 and ECLASS 27142423, and is sized for a 1200 mm wide front. The result is improved enclosure integrity, easier maintenance, and a more professional look across installations—reducing rework and warranty issues. In practice, this part also supports sustainable choices with compact packaging and a low CO2 footprint, aligning with responsible procurement while maintaining reliability.
Product Information
Extended Description
9682332 Rittal: VX Front trim panel, bottom, IP 54, WH: 1200x100 mm sheet steel
Article number
SV 9682.332
Design
Solid
Product description
To finish off the modular front design at the bottom when using partial doors. The front trim panels may be removed from the outside by unscrewing.
Material
Sheet steel, 1.5 mm
Surface finish
Textured paint
Colour
RAL 7035
Supply includes
Front trim panel | Cross member | Assembly parts
Dimensions
Height: 100 mm
To fit
Width: = 1,200 mm
Packs of
1 pc(s).
Weight/pack
3.24 kg
PCF per pack (cradle-to-gate)
12.3 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177929951
ETIM 9
EC000456
ECLASS 8.0
27142423
Product description
VX Front trim panel, bottom, IP 54, WH: 1200x100 mm sheet steel
Paragraph 1: Feature and Benefit — The panel is made from 1.5 mm sheet steel with textured paint in RAL 7035, delivering durability and a uniform finish that resists industrial wear. Business impact: Long service life reduces maintenance costs and repaint cycles. Application: Ideal for bottom finishes on 1200 mm wide VX fronts in harsh environments. Paragraph 2: Feature and Benefit — IP54 protection keeps dust and light water exposure at bay, supporting reliable operation in factory floors and outdoor areas. Business impact: Lower risk of ingress-related downtime and warranty claims. Application: Suitable for enclosures subject to splashes, humidity, or dusty air. Paragraph 3: Feature and Benefit — Easy outside installation and removal. The panel pairs with a cross member and assembly parts, and can be removed from outside by unscrewing. Impact: Faster onboarding and service, less door-opening downtime. Application: Quick replacements during upgrades or routine maintenance. Paragraph 4: Feature and Benefit — Complete supply kit. Includes front trim panel, cross member, and assembly parts, reducing sourcing steps and project lead times. Impact: Streamlined procurement and consistent quality. Application: Fits standard 1200 mm wide modular enclosures with partial doors. Paragraph 5: Feature and Benefit — Environmental and compliance data. PCF 12.3 kg CO2 eq (Cat B) per pack, weight 3.24 kg, EAN 4028177929951. Impact: Enables green procurement and lifecycle thinking. Application: Transparent sustainability metrics alongside robust mechanical specs. Paragraph 6: Additional note — The IP rating and material choices support OEM-grade finishes that stay legible and durable over time.
Get a Quick Quote for a Rittal 9682332
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9682332?
Enquire Now
FAQs
The SV 9682.332 is designed for Rittal VX front designs on 1200 mm wide modular enclosures with partial doors. It ships as a complete pack that includes the front trim panel, cross member, and assembly parts, allowing straightforward retrofit on compatible frames without additional hardware. This minimizes site work and reduces sourcing risk during enclosure upgrades.
Installation is straightforward: align the 1200 mm width with the enclosure front, attach using the included cross member and assembly parts, and secure with the supplied hardware. Removal from the outside is achieved by unscrewing the fasteners and sliding the trim panel away, without opening doors. This minimizes downtime and preserves interior protection during maintenance or part swaps.
Yes, it carries IP54 protection, defending against dust ingress and water splashes from non-immersive sources. Combined with 1.5 mm sheet steel and a textured finish in RAL 7035, the trim panel helps maintain enclosure integrity in industrial environments, including factory floors and outdoor installations.
The PCF per pack is 12.3 kg CO2 equivalent (Category B), based on cradle-to-gate assessments tied to a 3.24 kg pack. This metric supports sustainable procurement decisions and allows engineers to compare lifecycle impacts across enclosure accessories, helping projects meet carbon goals without compromising performance.
Packs per: 1; weight per pack: 3.24 kg; to fit: 1200 mm wide fronts; material: 1.5 mm sheet steel with textured paint in RAL 7035; supply includes front trim panel, cross member, and assembly parts; EAN 4028177929951. No additional parts are required for installation.
