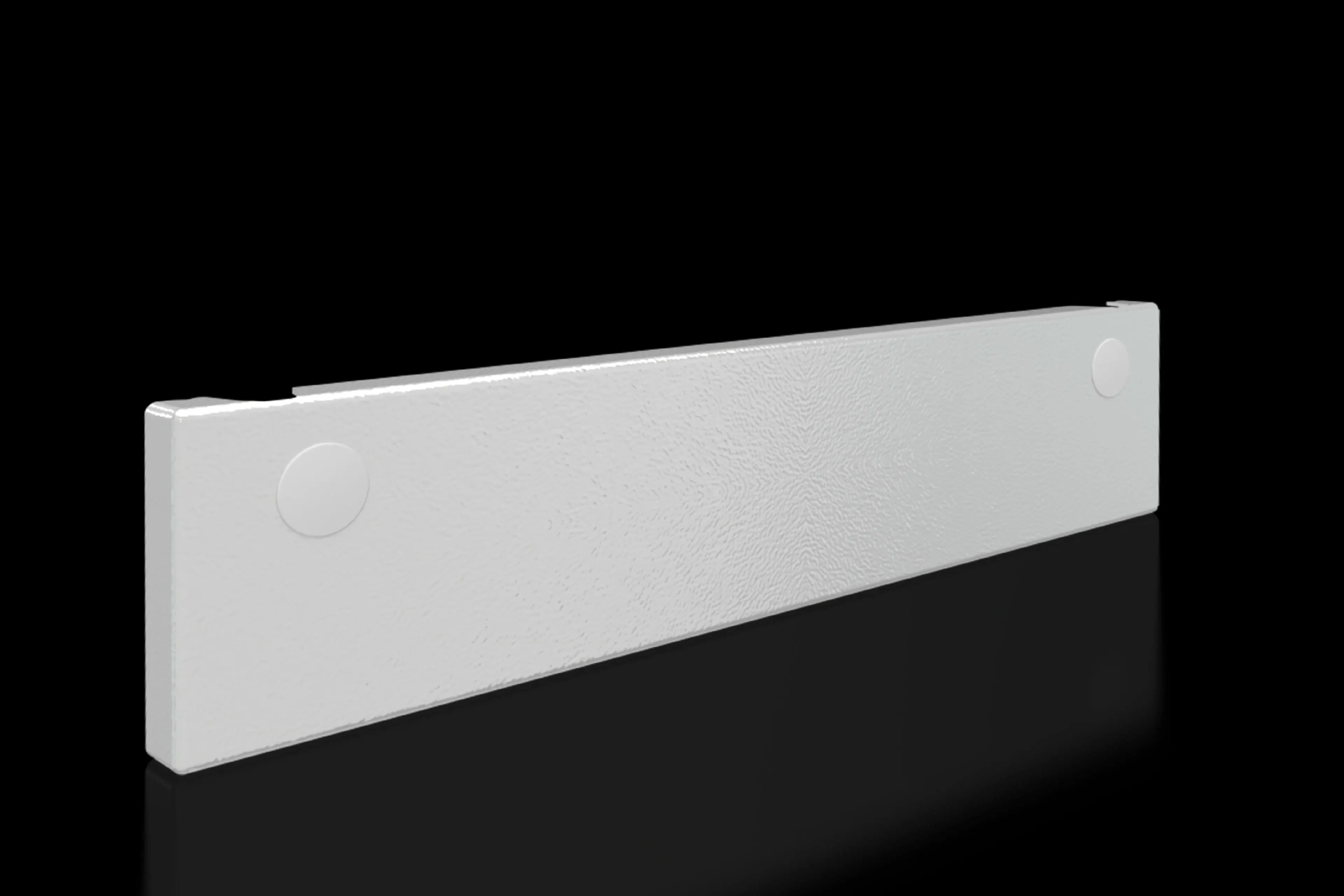

Rittal 9682334 VX Front trim panel - IP54
Part Number: 9682334
Manufacturer
Rittal
Part number
9682334
Alt Part Number
SV 9682.334
Quick Summary
The VX Front trim panel provides a clean bottom finish for modular enclosures used on control panels and industrial cabinets. It eliminates gaps and aesthetic mismatch when using partial doors, reducing exposure and intrusion risks. IP54 protection ensures dust and splash resistance, while ETIM EC000456 and ECLASS 27142423 classifications support procurement. For sustainability, the product lists a cradle-to-gate PCF of 5.2 kg CO2 eq and ships as a compact 1.362 kg pack. These features help panel builders meet deadlines, reduce rework, and source compatible accessories quickly.
Product Information
Extended Description
9682334 Rittal: VX Front trim panel, bottom, IP 54, WH: 400x100 mm sheet steel
Article number
SV 9682.334
Design
Solid
Product description
To finish off the modular front design at the bottom when using partial doors. The front trim panels may be removed from the outside by unscrewing.
Material
Sheet steel, 1.5 mm
Surface finish
Textured paint
Colour
RAL 7035
Supply includes
Front trim panel | Cross member | Assembly parts
Dimensions
Height: 100 mm
To fit
Width: = 400 mm
Packs of
1 pc(s).
Weight/pack
1.362 kg
PCF per pack (cradle-to-gate)
5.2 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177929791
ETIM 9
EC000456
ECLASS 8.0
27142423
Product description
VX Front trim panel, bottom, IP 54, WH: 400x100 mm sheet steel
Feature → Business Impact → Application: The solid 1.5 mm sheet steel construction with textured paint yields a durable finish that resists wear in harsh environments, extending service life in control cabinets and industrial housings. This translates to lower maintenance costs and fewer part replacements during a project. Application: Bottom finishing for modular fronts in Rittal enclosures, especially where partial doors are used. Feature → Business Impact → Application: IP54 protection guards against dust ingress and splash in wash-down or dusty settings, improving reliability and compliance in food, beverage, and manufacturing environments. Feature → Business Impact → Application: Supplied with front trim panel, cross member, and assembly parts, enabling faster on-site installation and reducing labor costs while ensuring correct alignment of the modular front. Feature → Business Impact → Application: 1.362 kg per pack supports single-operator handling and simplifies logistics, lowering installation time and crane/handling requirements on site. Feature → Business Impact → Application: PCF 5.2 kg CO2 eq (Cat B) demonstrates a measurable sustainability footprint, aiding ESG reporting and supplier diversity goals. Feature → Business Impact → Application: Compatibility with SV 9682.334 and standard ETIM/ECLASS classifications improves procurement traceability and reduces risk of part-number mismatches in multi-vendor projects.
Get a Quick Quote for a Rittal 9682334
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9682334?
Enquire Now
FAQs
To install, remove external screws, align the cross member with the enclosure face, attach the front trim panel bottom, and secure using the supplied assembly parts. The design allows removal from the outside, simplifying future servicing and partial-door configurations.
SV 9682.334 is a solid-design front trim panel bottom made from 1.5 mm sheet steel with a textured paint finish in RAL 7035. It measures 400x100 mm (HxW), weighs 1.362 kg per pack, and includes a front trim panel, cross member, and assembly parts for complete installation.
Yes. The VX Front trim panel bottom is specifically intended to finish the modular front at the bottom when partial doors are used. It can be removed from the outside by unscrewing, allowing flexible configurations without disassembly.
The product aligns with ETIM EC000456 and ECLASS 27142423 classifications. It also carries an IP54 protection rating and uses a 400x100 mm sheet steel construction, providing reliable particulate and splash resistance for industrial environments.
The PCF is 5.2 kg CO2 eq (Category B) per pack, reflecting its cradle-to-gate footprint. With a weight of 1.362 kg per pack and a straightforward install, the solution reduces on-site labor, speeds up assembly, and contributes to ESG goals without sacrificing enclosure integrity.
