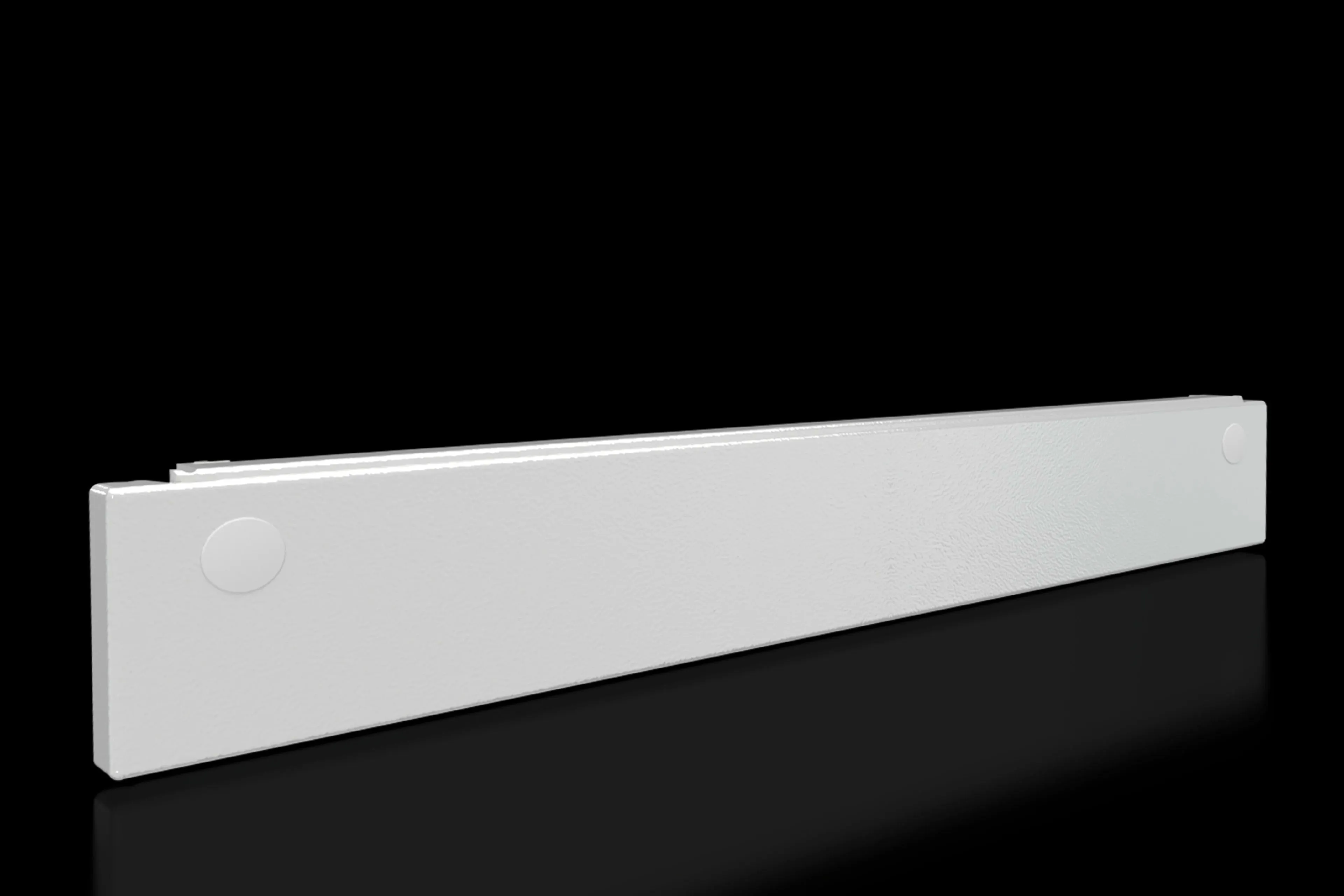

Rittal SV 9682.336 VX Front trim panel - IP54
Part Number: 9682336
Manufacturer
Rittal
Part number
9682336
Alt Part Number
SV 9682.336
Quick Summary
Rittal SV 9682.336 VX Front trim panel finishes the bottom of modular enclosures with partial doors. Without a proper bottom trim, gaps can invite moisture, dust and heat buildup that undermine enclosure integrity and asset performance. This component is CE-compliant and IP54-rated, with ETIM EC000456 and ECLASS 8.0 27142423 classifications that support procurement and cross-system compatibility. Easy installation with the supplied front trim panel, cross member and assembly parts helps protect your project timelines and improve lifecycle cost. In practice, the 600x100 mm footprint and 1.5 mm sheet steel construction deliver durable coverage, while the textured RAL 7035 finish maintains aesthetic uniformity across control panels. This helps maintenance teams protect uptime, align with IT and automation standards, and justify lifecycle budgets for cabinet infrastructure.
Product Information
Extended Description
9682336 Rittal: VX Front trim panel, bottom, IP 54, WH: 600x100 mm sheet steel
Article number
SV 9682.336
Design
Solid
Product description
To finish off the modular front design at the bottom when using partial doors. The front trim panels may be removed from the outside by unscrewing.
Material
Sheet steel, 1.5 mm
Surface finish
Textured paint
Colour
RAL 7035
Supply includes
Front trim panel | Cross member | Assembly parts
Dimensions
Height: 100 mm
To fit
Width: = 600 mm
Packs of
1 pc(s).
Weight/pack
1.9 kg
PCF per pack (cradle-to-gate)
7.2 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177929937
ETIM 9
EC000456
ECLASS 8.0
27142423
Product description
VX Front trim panel, bottom, IP 54, WH: 600x100 mm sheet steel
Feature: Solid sheet steel construction at 1.5 mm with a textured, RAL 7035 finish delivers durable protection in demanding factory environments. Business Impact: Reduces corrosion risk, minimizes upkeep, and extends cabinet life, lowering lifecycle costs. Application: Ideal for bottom trims on modular enclosures where the front design is visible, including applications with partial-door configurations across automation lines. Feature: The front trim panel can be removed from the outside by unscrewing, and the pack includes a cross member plus assembly parts. Business Impact: Simplifies on-site maintenance and rapid configuration changes without dismantling entire enclosures. Application: Fits standard 600 mm widths and 100 mm height segments, enabling quick retrofits on existing Rittal systems. Feature: Dimensions 600x100 mm, height 100 mm, weight 1.9 kg, with IP54 protection. Business Impact: Precise fit reduces gaps, improves ingress protection, and minimizes mounting tolerances in panel assemblies. Application: Compatible with modular frames designed for partial doors, maintaining clean, aligned front aesthetics. Feature: Supply includes front trim panel, cross member, and assembly parts for complete on-site installation. Business Impact: Streamlines procurement and logistics by delivering a ready-to-install kit from a single SKU. Application: Ideal for standard 1-pack configurations in control cabinet projects across manufacturing and data centers. Feature: PCF per pack is 7.2 kg CO2 eq (Cat B), with 1.9 kg weight per pack, aligning with sustainability goals. Business Impact: Supports carbon reporting and green procurement while keeping total cost of ownership predictable. Application: Suitable for long-life control panels where environmental metrics matter for audits. Feature: CE compliance, IP54 rating, and classifications ETIM EC000456 and ECLASS 8.0 27142423 underpin procurement accuracy. Business Impact: Ensures regulatory alignment and reliable vendor data across ERP and sourcing systems. Application: Use in industrial enclosures and electrical infrastructure projects requiring certified protection and standardized part data.
Get a Quick Quote for a Rittal 9682336
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9682336?
Enquire Now
FAQs
SV 9682.336 is designed for modular front designs with a 600 mm width and 100 mm height segment. It ships with a front trim panel, cross member, and assembly parts for a complete kit. The panel can be removed from the outside by unscrewing, enabling quick retrofits or upgrades without disassembling the full enclosure. Ensure alignment with existing mounting brackets and verify IP54 protection is preserved after installation.
The trim panel is made from 1.5 mm sheet steel with a textured paint finish in RAL 7035, providing robust mechanical protection and a durable aesthetic. It carries IP54 ingress protection and weighs 1.9 kg per pack. The dimensions are 600x100 mm, with a 100 mm height, making it a precise bottom-finishing solution for modular frames.
Ideal for automation, manufacturing and electrical infrastructure projects using modular Rittal enclosures with partial-door configurations. It preserves front aesthetics, protects against dust and splashes, and supports easy maintenance. The solution is well-suited for environments with frequent front-access needs, where quick service and consistent appearance are important.
The product is CE-compliant and IP54-rated, ensuring regulatory alignment and protection in harsh environments. It is classified under ETIM EC000456 and ECLASS 8.0 27142423, which helps with accurate procurement data and system-wide interoperability. The combination of these standards supports reliable sourcing and consistent data across ERP and purchasing systems.
By delivering a ready-to-install kit with essential components, the SV 9682.336 minimizes field downtime during upgrades or maintenance. The 1.9 kg weight and PCF of 7.2 kg CO2 eq (Cat B) per pack support sustainability reporting, while the durable 1.5 mm steel and IP54 protection reduce repair frequency, contributing to lower total cost of ownership over the cabinet lifespan.
