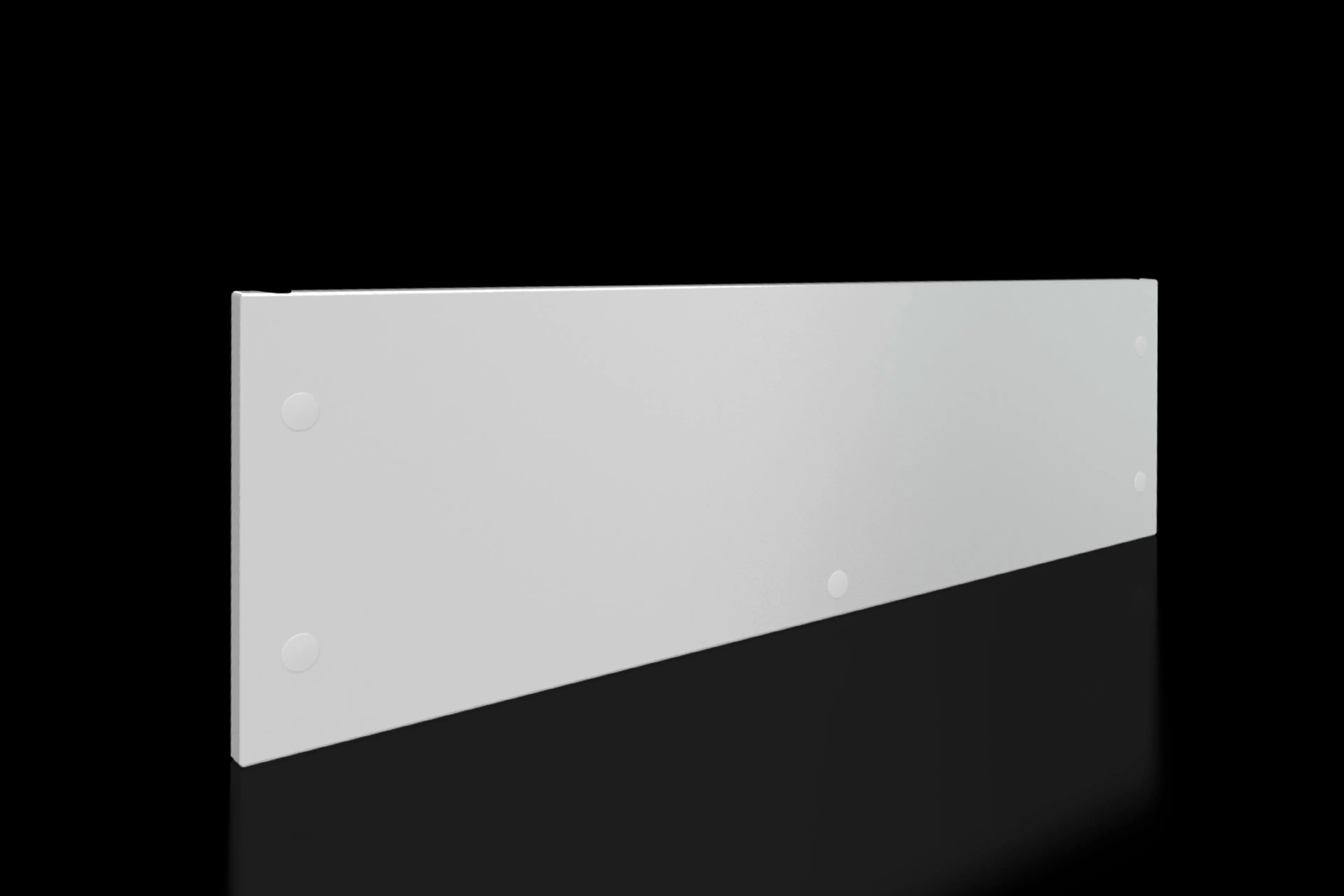

Rittal SV 9682.340 Front Trim Panel - IP54
Part Number: 9682340
Manufacturer
Rittal
Part number
9682340
Alt Part Number
SV 9682.340
Quick Summary
Rittal SV 9682.340 Front Trim Panel is a bottom finishing accessory for modular enclosures with partial doors. It delivers a clean, professional edge while preserving accessibility and serviceability. This solution helps prevent dust ingress at the lower edge and enhances enclosure aesthetics in demanding industrial environments. The panel features IP54 protection and is constructed from 1.5 mm sheet steel finished in textured paint, RAL 7035, aligning with ETIM EC000456 and ECLASS 27142423 standards for easy procurement. By standardizing this component, engineers reduce custom fabrication time and procurement risk, while maintenance teams enjoy consistent replacement parts and predictable lifecycle costs. Suitable for 1000 mm wide enclosures, it supports scalable industrial automation layouts and streamlined installation workflows.
Product Information
Extended Description
9682340 Rittal: VX Front trim panel, bottom, IP 54, WH: 1000x300 mm sheet steel
Article number
SV 9682.340
Design
Solid
Product description
To finish off the modular front design at the bottom when using partial doors. The front trim panels may be removed from the outside by unscrewing.
Material
Sheet steel, 1.5 mm
Surface finish
Textured paint
Colour
RAL 7035
Supply includes
Front trim panel | Cross member | Assembly parts
Dimensions
Height: 300 mm
To fit
Width: = 1,000 mm
Packs of
1 pc(s).
Weight/pack
5.86 kg
PCF per pack (cradle-to-gate)
22.3 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177929920
ETIM 9
EC000456
ECLASS 8.0
27142423
Product description
VX Front trim panel, bottom, IP 54, WH: 1000x300 mm sheet steel
The VX Front trim panel, bottom, is a purpose-built finishing component that completes the modular front for cabinets using partial doors, improving visual consistency and edge protection. This translates to faster project delivery and less post-install adjustment, particularly in tight plant environments where aesthetics and reliability matter. The 1.5 mm sheet steel with textured paint in RAL 7035 delivers durable corrosion resistance and a professional appearance, reducing repaint cycles and maintenance costs. The included cross member and assembly parts simplify on-site installation, shortening commissioning times and lowering labor intensity. With a 5.86 kg per-pack weight and a PCF of 22.3 kg CO2 eq (Cat B), this panel supports sustainable procurement and lifecycle accounting. Its 1000 mm width and 300 mm height ensure precise fitment on standard combination frames, enabling scalable enclosure designs and consistent field performance. Designed to detach from the outside by unscrewing, it minimizes downtime during retrofit projects and supports rapid reconfiguration of production lines.
Get a Quick Quote for a Rittal 9682340
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9682340?
Enquire Now
FAQs
The SV 9682.340 is designed to fit enclosures that are 1000 mm wide, providing a seamless bottom finish for modular front designs with partial doors. It includes a cross member and assembly parts to simplify mounting, ensuring a reliable alignment with standard 1000 mm frames and consistent panel gaps across multiple cabinet rows in automation and electrical infrastructure environments.
Installation is performed from the outside by unscrewing the panel to access the lowers edge, then attaching the trim with the included assembly parts and cross member. The process is designed to minimize downtime during retrofits or new installations, and its solid 1.5 mm sheet steel construction ensures long-term durability in demanding plant conditions.
The product carries IP54 protection for dust and splash resistance and aligns with industry classifications ETIM EC000456 and ECLASS 27142423 for standardized procurement. While CE marking is typical for European electrical components, the listing highlights IP rating and classification references, which support compliance checks and sourcing in European automation projects.
The trim panel is made from sheet steel 1.5 mm thick with a textured paint finish in RAL 7035, offering robust durability. It measures 300 mm in height and fits 1000 mm wide cabinets, ensuring a precise, aesthetically consistent bottom edge when used with partial-door configurations in modular enclosures.
Each pack weighs 5.86 kg and carries a PCF of 22.3 kg CO2 eq (Category B), reflecting an environmental footprint based on cradle-to-gate data. This enables lifecycle cost analyses and sustainability reporting for large-scale projects, while the compact weight supports easier handling and installation on site.
