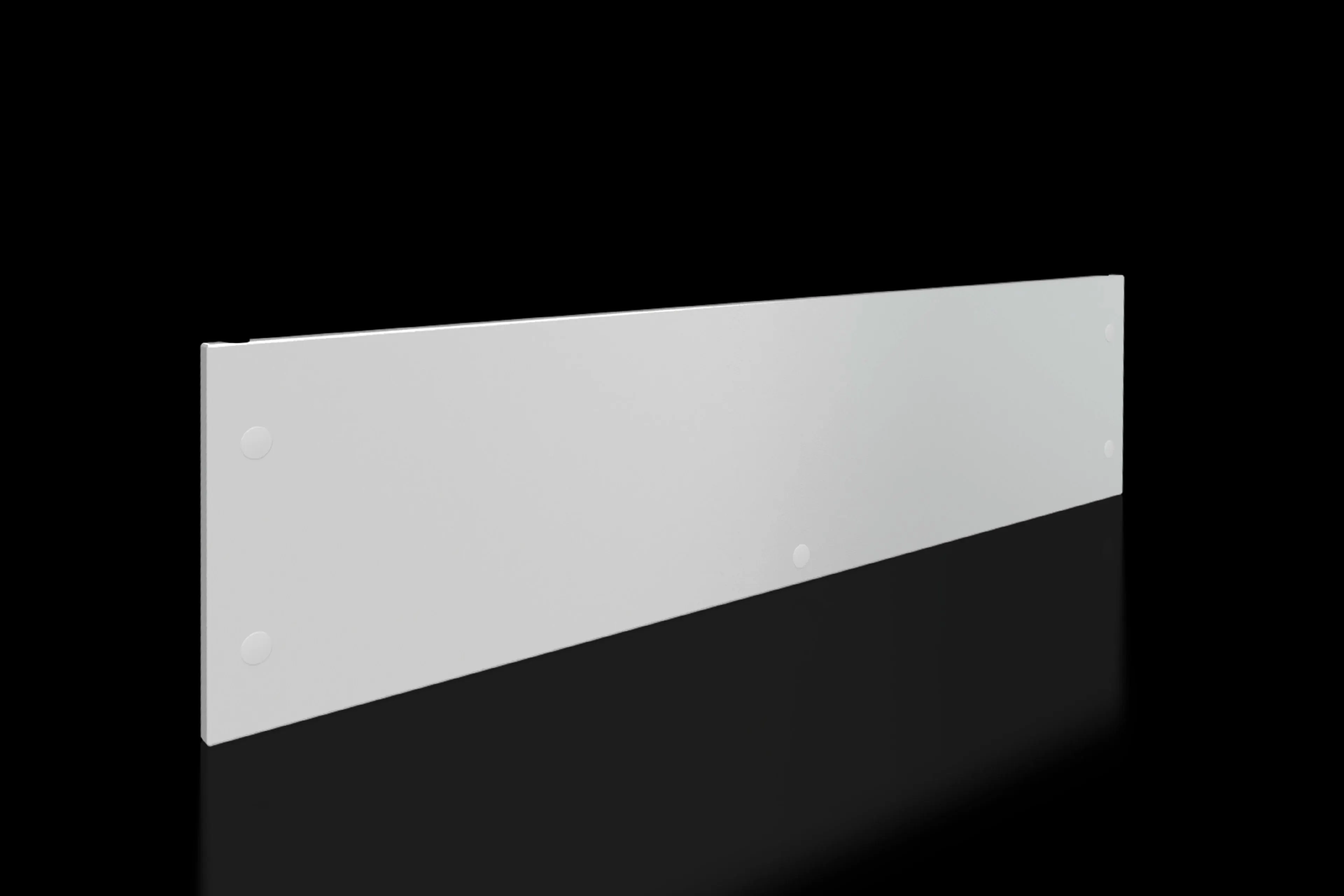

Rittal VX Front trim panel SV 9682.342 - IP54 Bottom
Part Number: 9682342
Manufacturer
Rittal
Part number
9682342
Alt Part Number
SV 9682.342
Quick Summary
VX Front trim panel is a bottom finishing accessory for modular enclosures with partial doors. This product eliminates gaps and unfinished edges when using partial doors, reducing rework and installation time. It supports CE compliance and IP54 protection, with ETIM EC000456 and ECLASS 27142423 identifiers. Used with a 1200x300 mm width, textured RAL 7035 finish, it ensures a durable, consistent exterior for industrial environments. Constructed from 1.5 mm sheet steel with textured paint in RAL 7035, it withstands industrial wear while maintaining a neat appearance. With a weight of about 6.9 kg per pack, it offers straightforward handling and faster installation on busy lines. For procurement teams, this means faster cabinet assembly, predictable part costs, and a cleaner lifecycle retrofit path.
Product Information
Extended Description
9682342 Rittal: VX Front trim panel, bottom, IP 54, WH: 1200x300 mm sheet steel
Article number
SV 9682.342
Design
Solid
Product description
To finish off the modular front design at the bottom when using partial doors. The front trim panels may be removed from the outside by unscrewing.
Material
Sheet steel, 1.5 mm
Surface finish
Textured paint
Colour
RAL 7035
Supply includes
Front trim panel | Cross member | Assembly parts
Dimensions
Height:Â 300 mm
To fit
Width:Â = 1,200 mm
Packs of
1 pc(s).
Weight/pack
6.9 kg
PCF per pack (cradle-to-gate)
26.3Â kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177929968
ETIM 9
EC000456
ECLASS 8.0
27142423
Product description
VX Front trim panel, bottom, IP 54, WH: 1200x300 mm sheet steel
Feature: Solid sheet steel construction (1.5 mm). Business Impact: Provides a robust bottom finish that resists impact and wear, reducing replacement cycles in harsh environments. Application: Ideal for 1200 mm wide enclosures in manufacturing lines. The improved durability translates to lower maintenance costs and longer service life. Feature: IP54 protected exterior. Business Impact: Guards against dust ingress and light moisture, enhancing reliability in demanding facilities. Application: Suitable for control cabinets in workshops and assembly floors. Feature: Complete supply with front trim, cross member, and assembly parts. Business Impact: Reduces sourcing steps and accelerates installation, leading to shorter project timelines. Application: Works with standard modular fronts during retrofits or new builds. Feature: Textured paint finish in RAL 7035. Business Impact: Delivers a consistent aesthetic and easier cleaning, supporting compliance with visual standards. Application: Matches industrial color codes across equipment fleets. Feature: Outside screw removal design. Business Impact: Facilitates quick maintenance and front-edge adjustments without cabinet dismantling. Application: Valuable for plants with frequent configuration changes. Insight: PCF per pack of 26.3 kg CO2 eq (Cat B) aligns with sustainability reporting and lower lifecycle impact.
Get a Quick Quote for a Rittal 9682342
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9682342?
Enquire Now
FAQs
SV 9682.342 is designed for 1200 mm wide modular enclosures with partial doors. It mounts at the bottom and includes a cross member and assembly parts for straightforward installation; the trim can be removed from the outside by unscrewing, enabling quick retrofits or configuration changes.
The trim panel is made from 1.5 mm sheet steel with a textured paint finish in RAL 7035 and carries an IP54 protection rating. It weighs about 6.9 kg per pack, making handling manageable on site while delivering durable exterior protection in industrial environments.
Yes. The VX Front trim panel is designed for outside removal by unscrewing, enabling maintenance access and front-edge adjustments without cabinet removal, which is especially beneficial during partial-door upgrades or reconfigurations.
The product aligns with ETIM 9 EC000456 and ECLASS 8.0 27142423 identifiers and has EAN 4028177929968. It is CE compliant and IP54 rated, supporting safe operation in standard industrial environments.
Using the trim panel reduces installation time and rework from misaligned edges, while providing a durable exterior that requires less repainting. The included mounting hardware and streamlined retrofit capability shorten project schedules and support lower lifecycle costs for modular enclosure projects.
