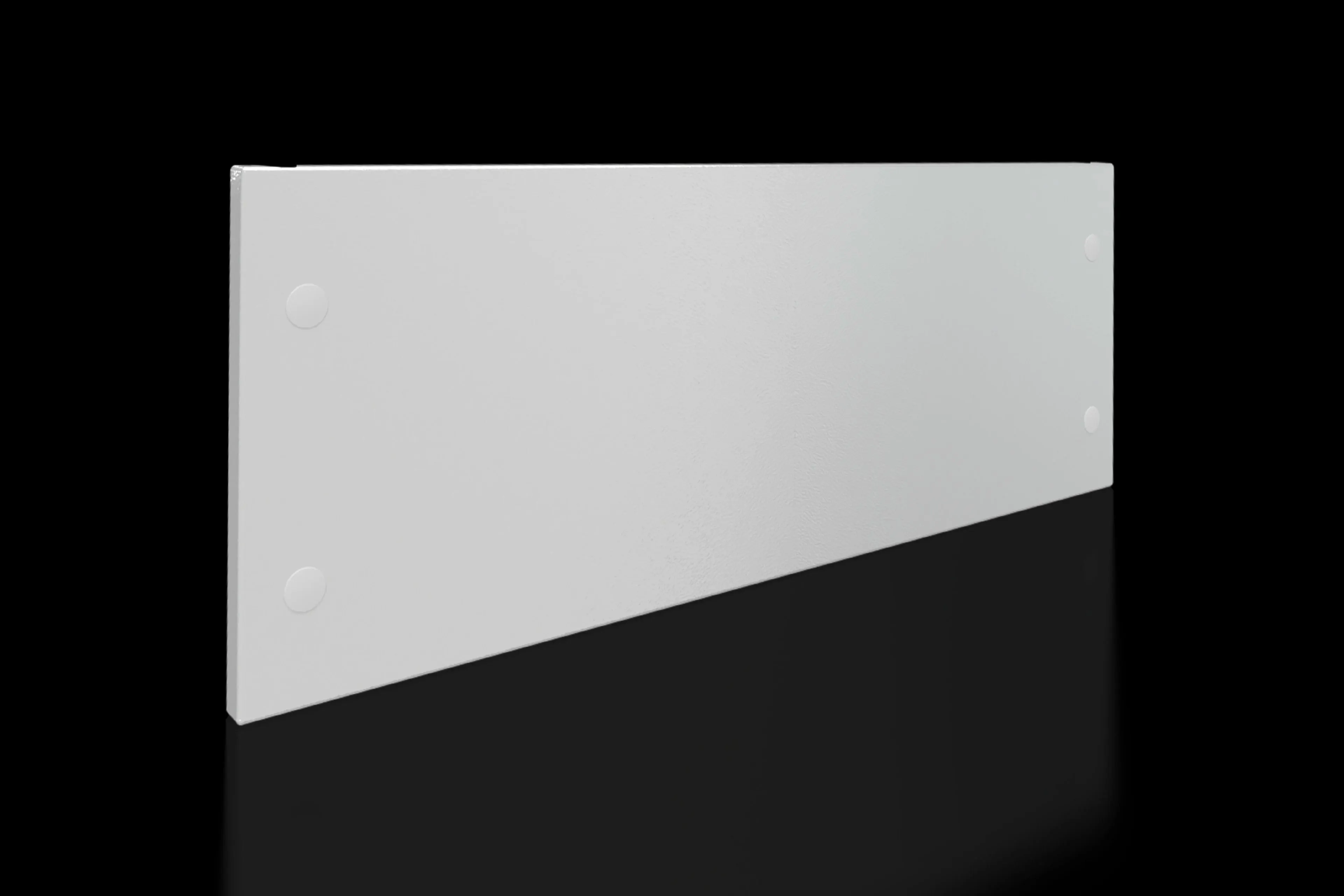

Rittal 9682348 VX Front Trim Panel - IP54, 800x300 mm
Part Number: 9682348
Manufacturer
Rittal
Part number
9682348
Alt Part Number
SV 9682.348
Quick Summary
Rittal VX Front trim panel for bottom finishing of modular enclosures protects the base of industrial cabinets while preserving a clean, continuous front. Many installations struggle with gaps at the base that invite dust, moisture and misalignment when using partial doors. It carries IP54 protection, a solid sheet steel construction, and a textured RAL 7035 finish, ensuring durability in harsh environments. Designed for 800x300 mm openings, it installs quickly from the outside with the included cross member and assembly parts, reducing service time. By standardizing the bottom edge, you gain predictable maintenance cycles, improved accessibility, and a consistent aesthetic across multiple enclosures.
Product Information
Extended Description
9682348 Rittal: VX Front trim panel, bottom, IP 54, WH: 800x300 mm sheet steel
Article number
SV 9682.348
Design
Solid
Product description
To finish off the modular front design at the bottom when using partial doors. The front trim panels may be removed from the outside by unscrewing.
Material
Sheet steel, 1.5 mm
Surface finish
Textured paint
Colour
RAL 7035
Supply includes
Front trim panel | Cross member | Assembly parts
Dimensions
Height: 300 mm
To fit
Width: = 800 mm
Packs of
1 pc(s).
Weight/pack
4.58 kg
PCF per pack (cradle-to-gate)
17.4 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177929845
ETIM 9
EC000456
ECLASS 8.0
27142423
Product description
VX Front trim panel, bottom, IP 54, WH: 800x300 mm sheet steel
Feature: Solid sheet steel construction at 1.5 mm provides robust durability in switchgear environments. Business Impact: Enhances enclosure integrity, reduces risk of damage from impact or corrosion, and lowers replacement costs over time. Application: Ideal for bottom finishing in 800 mm wide modular enclosures where long service intervals are critical. Feature: Textured paint finish in RAL 7035 delivers a durable, easy-to-clean surface that resists wear in harsh factory floors. Business Impact: Maintains appearance and minimizes maintenance labor while complying with visual standards across fleet deployments. Application: Suitable for high-traffic enclosures in production lines and control rooms. Feature: IP54 protection rating and bottom placement guard against dust and water ingress. Business Impact: Improves uptime by protecting sensitive components in challenging environments and supports compliance with enclosure best practices. Application: Essential for enclosures operating in semi-industrial or outdoor-adjacent spaces. Feature: External unscrew removal capability with supply includes front trim panel, cross member, and assembly parts. Business Impact: Speeds installation and service, reduces downtime, and simplifies field retrofits. Application: Compatible with partial-door configurations where bottom finishing is required without disassembling the entire front. Feature: Precise 800x300 mm footprint with Height 300 mm. Business Impact: Ensures a predictable fit, minimizes gaps, and streamlines cabinet customization. Application: Deployments across Rittal modular systems where standardization aids procurement. Feature: Environmental and packaging data: Weight per pack 4.58 kg; PCF 17.4 kg CO2 eq (Cat B). Business Impact: Supports sustainability reporting and cost-aware logistics. Application: Useful for BOMs and life-cycle analyses in sustainable manufacturing programs.
Get a Quick Quote for a Rittal 9682348
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9682348?
Enquire Now
FAQs
To install the SV 9682.348, align the 800 mm width with the enclosure opening and mount using the included cross member and assembly parts. The panel is designed for external removal, so you can access fasteners from the outside without disassembling the full front. Ensure a secure fit to maintain IP54 integrity and verify compatibility with partial-door configurations before finalizing.
Yes. The VX Front trim panel is specifically described for bottom finishing when using partial doors. Its 800x300 mm footprint and external-screw removal capability make it a convenient option for completing the modular front design while preserving door functionality and alignment.
Key specs include article number SV 9682.348, material sheet steel 1.5 mm, surface textured paint in RAL 7035, dimensions height 300 mm and width 800 mm, IP54 protection, and supplied with front trim panel, cross member, and assembly parts. It fits 800 mm wide openings and weighs 4.58 kg per pack.
IP54 rating indicates protection against limited dust ingress and water splashing from any direction, which reduces contamination risk inside the cabinet and extends component life. Combined with external removal for quick maintenance, this packaging minimizes downtime and keeps critical controls accessible for service without disassembly.
The product ships in a 4.58 kg pack with a cradle-to-gate PCF value of 17.4 kg CO2 eq (Cat B). The datasheet also lists the EAN, tariff code, and standard classifications (ETIM EC000456, ECLASS 27142423), helping with life-cycle assessments, compliance reporting, and sustainable procurement workflows.
