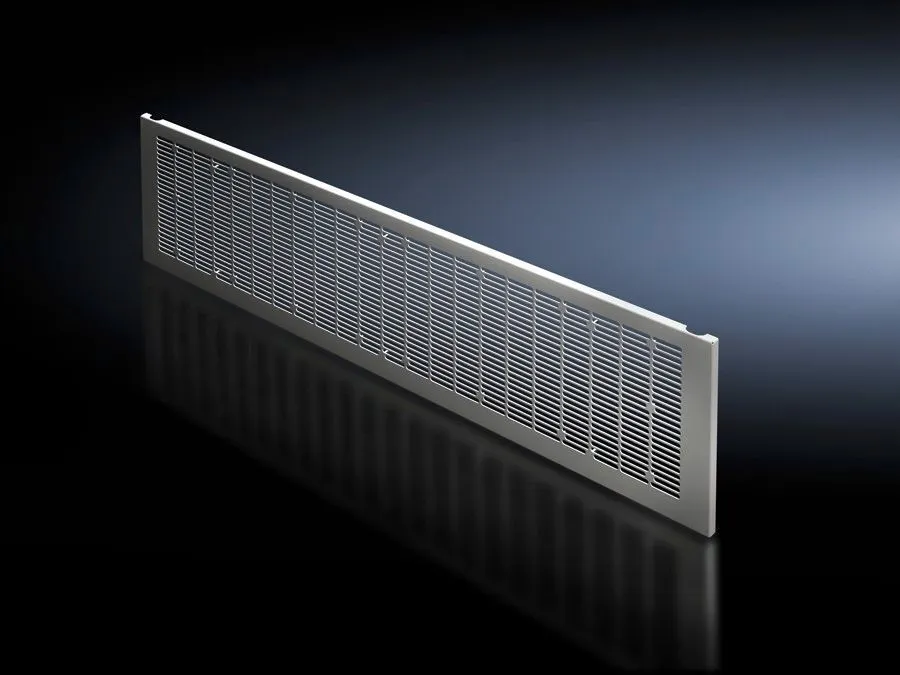

Rittal VX 9682.350 Front Trim Panel Bottom - IP 2X
Part Number: 9682350
Manufacturer
Rittal
Part number
9682350
Category
Alt Part Number
VX 9682.350
Quick Summary
Rittal VX 9682.350 Front Trim Panel Bottom is a finishing solution for modular enclosures at the base. Engineers use it to create clean, professional bottom edges when employing partial doors. The design supports IP 2X protection and aligns with industry classifications such as ETIM EC000456 and ECLASS 27142423, aiding procurement and interoperability. This panel also complements the 1000x300 mm footprint with textured paint in RAL 7035, delivering a visually consistent and durable enclosure solution while supporting efficient installation and maintenance workflows.
Product Information
Extended Description
9682350 Rittal: VX Front trim panel, bottom, IP 2X, WH: 1000x300 mm sheet steel
Article number
VX 9682.350
Design
with vents
Product description
To finish off the modular front design at the bottom when using partial doors. The front trim panels may be removed from the outside by unscrewing.
Material
Sheet steel, 1.5 mm
Surface finish
Textured paint
Colour
RAL 7035
Supply includes
Front trim panel | Cross member | Assembly parts
Note
When using front trim panels IP 2X, select a roof plate with protection category IP 2X for the top ventilation.
Dimensions
Height: 300 mm
To fit
Width: = 1,000 mm
Packs of
1 pc(s).
Weight/pack
4.28 kg
PCF per pack (cradle-to-gate)
16.3 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177929838
ETIM 9
EC000456
ECLASS 8.0
27142423
Product description
VX Front trim panel, bottom, IP 2X, WH: 1000x300 mm sheet steel
Feature: Durable construction with sheet steel 1.5 mm and textured paint finish. Benefit: Long-lasting bottom edge protection reduces wear and scuffing in demanding environments, lowering maintenance costs over time. Application: Ideal for finish at the bottom of modular enclosures with 1000x300 mm openings in industrial control cabinets. Feature: Design with vents. Benefit: Maintains airflow where vents are required, supporting cooling efficiency and device reliability in enclosure bays. Application: Use when combining with front trim panels IP 2X to preserve ventilation paths in partial door configurations. Feature: Complete installation package. Benefit: Front trim panel comes with cross member and assembly parts for a faster, error-free fit, reducing field labor and downtime. Application: Install during cabinet assembly or retrofits in plant automation lines. Feature: Clear specifications and sustainability data. Benefit: Precise dimensions (Height 300 mm, Width 1000 mm) and weight (4.28 kg per pack) support accurate BOMs and planning; PCF 16.3 kg CO2 eq per pack (Cat B) helps with carbon accounting. Application: Used by procurement teams for lifecycle planning and ESG reporting. Feature: Compliance-ready and traceable. Benefit: Certified under ETIM 9 EC000456 and ECLASS 8.0 27142423, with EAN 4028177929838 and tariff code 94039910, ensuring consistent cataloging and regulatory alignment. Application: Global sourcing and cross-border logistics for modular enclosures.
Get a Quick Quote for a Rittal 9682350
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9682350?
Enquire Now
FAQs
To install VX 9682.350, align the panel with the cabinet width of 1000 mm, attach the supplied cross member, and fasten using the included assembly parts. The front trim can be removed from the outside by unscrewing, enabling quick access for maintenance or upgrading without exposing interior components.
Yes. The panel is designed to finish the modular front at the bottom when partial doors are used. It supports airflow with vents and, when paired with IP 2X front trim panels, preserves ventilation paths while maintaining a clean exterior finish.
Key specs include material: sheet steel, 1.5 mm; dimensions: height 300 mm and width 1000 mm; color: RAL 7035 with textured paint; weight per pack: 4.28 kg; and packaging: 1 piece per pack. The supply includes the front trim panel, cross member, and assembly parts for straightforward installation.
The product carries IP 2X protection for enhanced safety and airflow. It is referenced with ETIM 9 EC000456 and ECLASS 8.0 27142423 for standardized cataloging. Additional identifiers include EAN 4028177929838 and customs tariff code 94039910, supporting global procurement and compliance workflows.
The 4.28 kg panel is designed for easy outside access, reducing maintenance time and downtime. With a PCF of 16.3 kg CO2 eq per pack (Cat B), it provides a measurable sustainability footprint. The included assembly parts and removable design help lower field labor costs during maintenance and upgrades.
