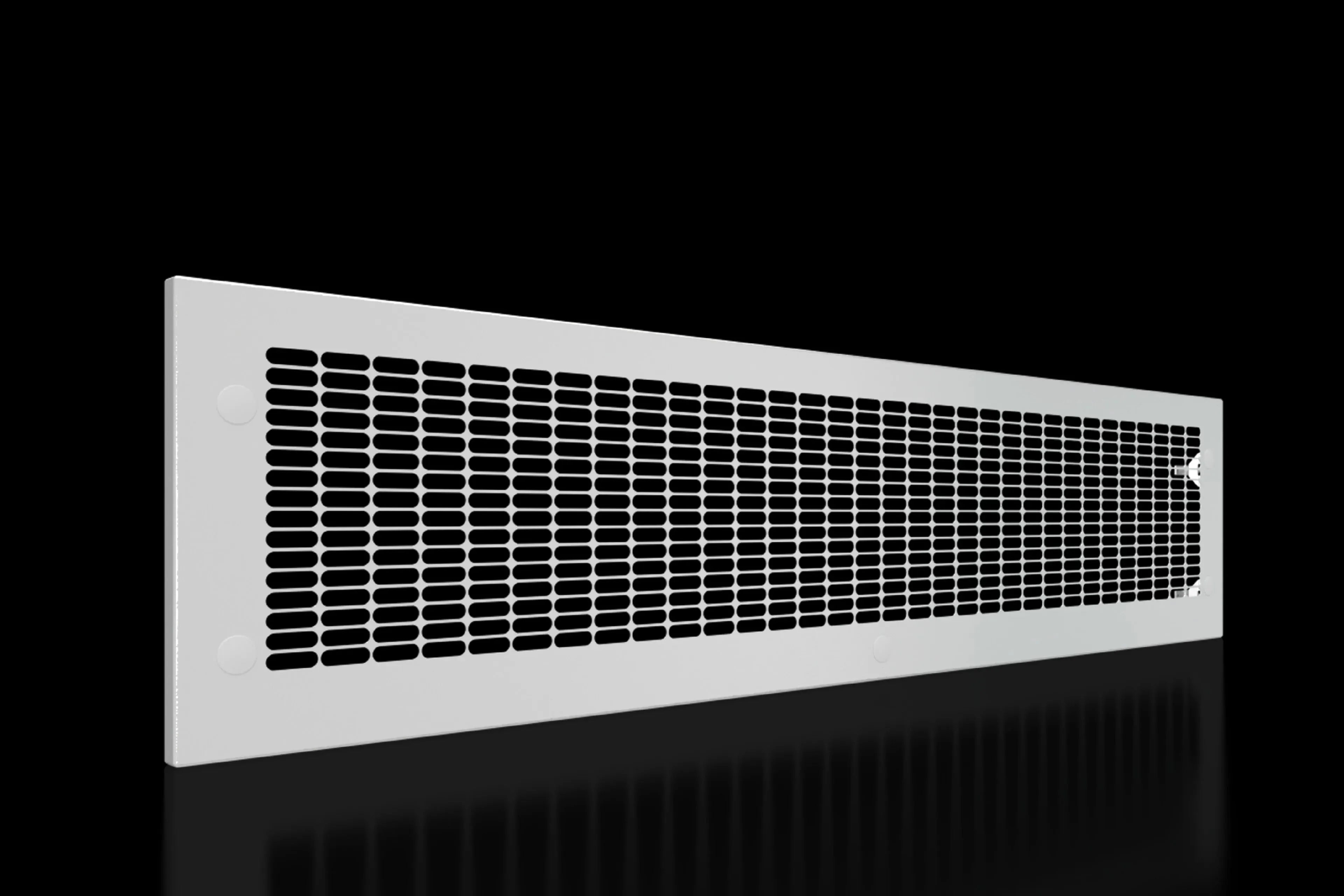

Rittal VX 9682.352 Front Trim Panel IP 2X 1200x300
Part Number: 9682352
Manufacturer
Rittal
Part number
9682352
Category
Alt Part Number
VX 9682.352
Quick Summary
Rittal VX 9682.352 Front Trim Panel is designed to finish the modular front of cabinet enclosures. This helps address the common challenge of gaps and exposure at the bottom when partial doors are used, delivering a clean, consistent appearance and improved sealing. The product carries IP 2X protection, with ETIM EC000456 and ECLASS 27142423 classifications that support procurement and compatibility across packaging and maintenance workflows. With a 1200x300 mm footprint and textured paint in RAL 7035, it blends with standard industrial panels while reducing field labor and rework, enabling faster commissioning and longer service life for data centers and manufacturing lines. This aligns with modular front design strategies for scalable control panel builds.
Product Information
Extended Description
9682352 Rittal: VX Front trim panel, bottom, IP 2X, WH: 1200x300 mm sheet steel
Article number
VX 9682.352
Design
with vents
Product description
To finish off the modular front design at the bottom when using partial doors. The front trim panels may be removed from the outside by unscrewing.
Material
Sheet steel, 1.5 mm
Surface finish
Textured paint
Colour
RAL 7035
Supply includes
Front trim panel | Cross member | Assembly parts
Note
When using front trim panels IP 2X, select a roof plate with protection category IP 2X for the top ventilation.
Dimensions
Height: 300 mm
To fit
Width: = 1,200 mm
Packs of
1 pc(s).
Weight/pack
4 kg
PCF per pack (cradle-to-gate)
15.2 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177929944
ETIM 9
EC000456
ECLASS 8.0
27142423
Product description
VX Front trim panel, bottom, IP 2X, WH: 1200x300 mm sheet steel
Material and finish provide durability in harsh environments; the panel is sheet steel 1.5 mm with textured paint in RAL 7035, delivering resistance to wear, cleaning solvents, and corrosion. In practice, it's ideal for outdoor or factory floor cabinets, reducing maintenance cycles and ensuring a professional aesthetic. The design includes vents and IP 2X protection, offering reliable protection while allowing controlled airflow in enclosed systems. This supports safe operation in environments with demanding ventilation requirements and helps maintain electronics temperature and reliability. Installation is straightforward, with a 1200 mm width and a bottom-front finish that integrates into existing modular frames, enabling faster line changeovers and consistent appearance across multiple enclosures. The supply includes a cross member and assembly parts, reducing purchase friction and enabling complete on-site assembly. The product’s light 4 kg pack weight aids handling and reduces crane or lifting needs during expansion or refurbishment. In addition, lifecycle considerations are supported by a cradle-to-gate PCF of 15.2 kg CO2 eq (Cat B), aligning with sustainability programs and procurement targets. The note on IP 2X ventilation requires selecting a roof plate with IP 2X protection for top ventilation when used together, ensuring compliant airflow and enclosure integrity.
Get a Quick Quote for a Rittal 9682352
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9682352?
Enquire Now
FAQs
The VX 9682.352 is designed for exterior mounting, using the supplied cross member and assembly parts to align with a 1200 mm wide cabinet. It can be removed from outside by unscrewing, simplifying maintenance. When using IP 2X front trim panels, ensure a roof plate with IP 2X protection for top ventilation to maintain compliant airflow.
Key specs include article number VX 9682.352, material sheet steel 1.5 mm, textured paint finish in RAL 7035, height 300 mm and width 1200 mm. Supply includes the front trim panel, cross member, and assembly parts; weight per pack is 4 kg. Packaging and classification align with ETIM EC000456 and ECLASS 27142423.
Yes. The bottom front trim panel completes the modular front design when partial doors are used, delivering a seamless finish and improved sealing. IP 2X protection adds environmental resilience, while the 1200x300 mm footprint ensures compatibility with standard 1,200 mm wide enclosures common in data centers and industrial control rooms.
The panel carries an IP 2X protection rating and is classified under ETIM EC000456 and ECLASS 27142423, supporting procurement and cross-system compatibility. The product also has associated EAN 4028177929944 and customs tariff 94039910. For ventilation considerations, if using IP 2X front trim panels, pair with a roof plate rated IP 2X to maintain airflow safety.
The panel’s external removal capability reduces field service time and downtime during maintenance. Durable 1.5 mm sheet steel with textured paint minimizes repainting and corrosion, while the included assembly parts shorten installation time. A 4 kg per-pack weight and 15.2 kg CO2 eq PCF per pack (Cat B) support lower logistical costs and sustainability targets across multiple enclosures.
