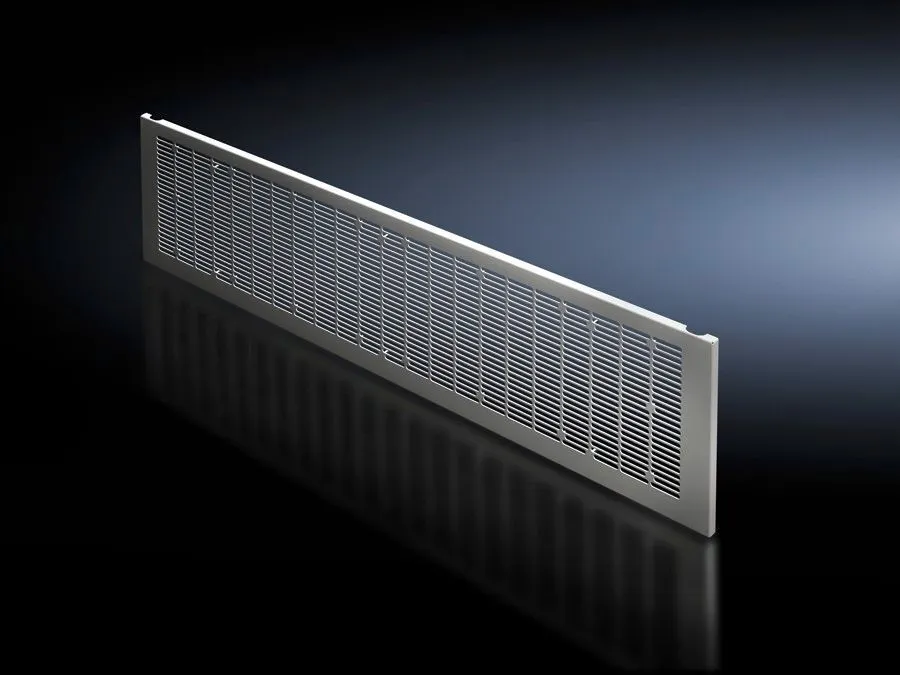

Rittal VX 9682.354 Front Trim Panel - IP 2X Ventilated
Part Number: 9682354
Manufacturer
Rittal
Part number
9682354
Category
Alt Part Number
VX 9682.354
Quick Summary
Rittal VX 9682.354 Front Trim Panel finishes modular front designs at the bottom of equipment enclosures. Without a proper bottom trim, gaps can collect dust and compromise aesthetics, ventilation, and enclosure integrity. It complies with IP 2X protection and aligns with ETIM EC000456 and ECLASS 27142423 classifications for reliable procurement and integration. This accessory is ideal for Rittal modular cabinets, offering quick external removal by unscrewing and enabling efficient maintenance. In addition to fitting seamlessly with partial doors, it supports consistent color and finish in RAL 7035 for a professional, durable enclosure appearance.
Product Information
Extended Description
9682354 Rittal: VX Front trim panel, bottom, IP 2X, WH: 400x300 mm sheet steel
Article number
VX 9682.354
Design
with vents
Product description
To finish off the modular front design at the bottom when using partial doors. The front trim panels may be removed from the outside by unscrewing.
Material
Sheet steel, 1.5 mm
Surface finish
Textured paint
Colour
RAL 7035
Supply includes
Front trim panel | Cross member | Assembly parts
Note
When using front trim panels IP 2X, select a roof plate with protection category IP 2X for the top ventilation.
Dimensions
Height: 300 mm
To fit
Width: = 400 mm
Packs of
1 pc(s).
Weight/pack
2.04 kg
PCF per pack (cradle-to-gate)
7.8 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
94039910
EAN
4028177929852
ETIM 9
EC000456
ECLASS 8.0
27142423
Product description
VX Front trim panel, bottom, IP 2X, WH: 400x300 mm sheet steel
Crafted from 1.5 mm sheet steel with a textured paint finish, the VX Front trim panel delivers a durable bottom finish for Rittal enclosures. The 300 mm high by 400 mm wide footprint ensures a precise fit for standard modular fronts, while the IP 2X protection designation helps maintain enclosure integrity in environments with enhanced dust and moisture concerns. This combination translates into longer service life, lower repaint and repair costs, and predictable field performance in factory and data center settings. The panel ships with the cross member and assembly parts needed for straightforward installation, and its 2.04 kg weight per pack supports ergonomic handling during upgrades or replacements. Cradle-to-gate PCF of 7.8 kg CO2 eq (Cat B) informs sustainability diligence for procurement teams. All components align with ETIM EC000456 and ECLASS 27142423 for seamless cataloging.
Get a Quick Quote for a Rittal 9682354
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9682354?
Enquire Now
FAQs
The VX 9682.354 is designed for external installation and can be removed from outside by unscrewing. It fits a 400x300 mm opening on modular enclosures and includes a cross member and assembly parts, simplifying retrofit or upgrades. Ensure the enclosure is compatible with the bottom trim dimensions and verify that partial doors are compatible with IP 2X ventilation considerations before proceeding.
The panel is built from sheet steel with a thickness of 1.5 mm and finished in a textured paint in RAL 7035. It carries IP 2X protection for bottom-edge applications with partial doors, supporting reliable operation in typical industrial environments while preserving appearance and corrosion resistance over time.
Yes. The 300 mm high by 400 mm wide trim panel is designed to finish the modular front at the bottom of enclosure systems. It integrates with existing front designs, and its removal method allows quick access for maintenance or component swaps without disassembling the entire door assembly.
The product aligns with ETIM EC000456 and ECLASS 27142423 classifications, facilitating cataloging and compatibility in B2B systems. It also carries IP 2X protection and is associated with a global EAN (4028177929852). These certifications support standardization and regulatory compliance in industrial purchasing.
Each pack contains 1 front trim panel with cross member and assembly parts, weighing 2.04 kg. The cradle-to-gate PCF is 7.8 kg CO2 eq (Cat B), helping buyers evaluate sustainability. The component is designed for efficient installation and reuse in modular systems, supporting lifecycle cost reduction and reduced downtime.
