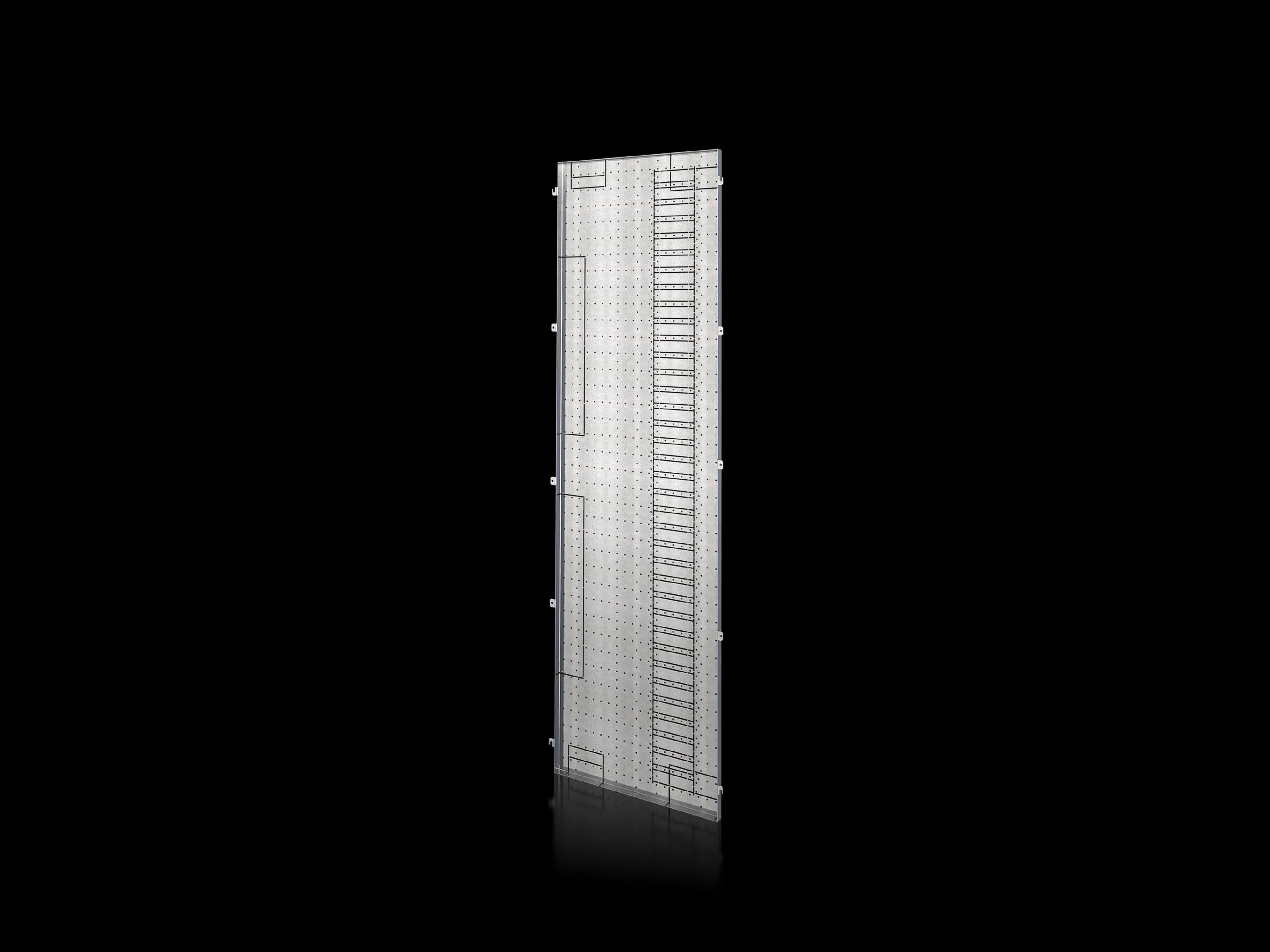

Rittal SV 9683.006 9683006 - Side panel for VX busbar system, zinc-plated
Part Number: 9683006
Manufacturer
Rittal
Part number
9683006
Category
Alt Part Number
SV 9683.006
Quick Summary
Rittal SV 9683.006 side panel is designed to attach partial mounting plates and compartment dividers within VX enclosures. Engineers often struggle with modularity and space planning in rear sections, so this panel provides a robust, ready-to-mount solution. The design supports CE-compliant manufacturing and uses 1.5 mm zinc-plated sheet steel, offering corrosion resistance, while fitting VX enclosures with rear section dimensions of HD 2000x600 mm. By enabling flexible configurations, it helps reduce changeover time, minimizes field fabrication, and supports scalable, cost-effective system expansion. This accessory aligns with industry standards and complements other Rittal mounting components to improve overall enclosure performance and serviceability.
Product Information
Extended Description
9683006 Rittal: SV Compartment side panel, HD: 1881x538 mm, for VX (HD: 2000x600 mm)
Article number
SV 9683.006
Design
For busbar system assembly in the rear section
Product description
Side divider panel for attaching partial mounting plates and compartment dividers.
Material
Sheet steel, 1.5 mm
Surface finish
Zinc-plated
Supply includes
Assembly parts
Dimensions
Height: 1,881 mm | Depth: 538 mm
To fit
Height: = 2,000 mm | Depth: = 600 mm
Packs of
2 pc(s).
Weight/pack
25.8 kg
Customs tariff number
73269098
EAN
4028177936522
ETIM 9
EC002525
ECLASS 8.0
27400613
Product description
SV Compartment side panel, HD: 1881x538 mm, for VX (HD: 2000x600 mm)
Feature → Business Impact → Application: The SV 9683.006 is a rear-section side panel sized for VX enclosures, enabling secure attachment of partial mounting plates and compartment dividers. This directly improves modularity and reduces time spent on custom fabrication during upgrades or expansions in data centers and manufacturing lines. Application: VX enclosure systems needing rear-busbar organization and easy reconfiguration. Feature → Business Impact → Application: Constructed from sheet steel with 1.5 mm thickness and a zinc-plated finish, delivering durable corrosion protection and long-term reliability in harsh industrial environments. Application: Industrial control panels exposed to dust, humidity, and temperature variation. Feature → Business Impact → Application: Supplied in packs of 2 with assembly parts included, simplifying procurement and reducing downtime associated with sourcing separate hardware. Application: Fast deployment in multi-cabinet installations and project rollouts. Feature → Business Impact → Application: Compatible with VX heights up to 2,000 mm and depths up to 600 mm, ensuring broad applicability across standard VX configurations. Application: Modular automation and power distribution enclosures. Feature → Business Impact → Application: Weight per pack of 25.8 kg aids logistics planning and reduces onsite handling risk. Application: Tight project scheduling and shift-based deployments. This panel’s design supports CE-compliant manufacturing practices, ETIM/ECLASS classifications, and ready-to-install integration with existing mounting components, providing measurable efficiency gains, improved compliance, and lower total cost of ownership for cabinet assemblies.
Get a Quick Quote for a Rittal 9683006
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9683006?
Enquire Now
FAQs
The SV 9683.006 compartment side panel is designed for VX enclosures and matches the rear-section mounting geometry to support busbar system assembly. It fits VX configurations up to 2,000 mm in height and 600 mm in depth, ensuring straightforward integration with existing VX cabinets and accessories.
The panel is HD 1,881 mm by 538 mm, made from 1.5 mm sheet steel with zinc-plated surface finish for corrosion protection. It ships in packs of two and includes assembly parts, with a weight of 25.8 kg per pack.
Yes. The SV 9683.006 is specifically designed as a side panel for attaching partial mounting plates and compartment dividers, enabling clean, modular rear-section configurations within VX enclosures.
The product is manufactured to CE-compliant practices, featuring corrosion-resistant zinc-plated steel and standard ETIM/ECLASS classifications for interoperability in industrial purchasing and integration workflows.
By enabling modular rear-section mounting and supplying assembly parts in packs, it reduces sourcing time, minimizes field fabrication, speeds up installation, and lowers downtime, contributing to lower total cost of ownership in multi-cabinet automation setups.
