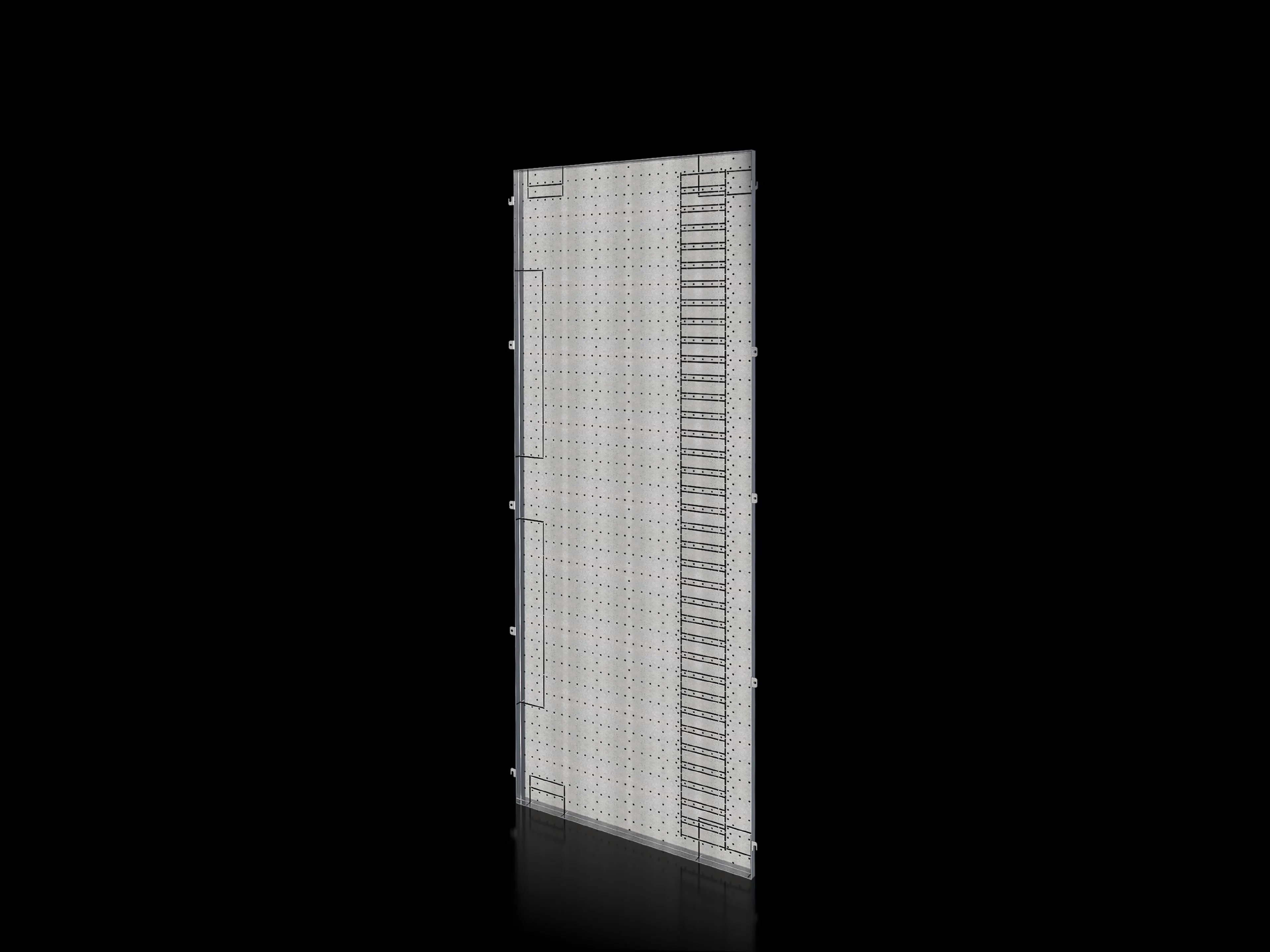

Rittal SV 9683.008 Side Panel - HD 1881x738 mm
Part Number: 9683008
Manufacturer
Rittal
Part number
9683008
Category
Alt Part Number
SV 9683.008
Quick Summary
Rittal SV 9683.008 side panel enables clean busbar system assembly in VX enclosures. Engineers often struggle with space, alignment, and compatibility when adding partial mounting plates and compartment dividers. The zinc‑plated 1.5 mm sheet steel delivers durable protection against corrosion in demanding electrical cabinets. European CE expectations and industry standards like ETIM and ECLASS guide integration, while the rear‑section design simplifies routing. Two‑pack packaging and included assembly parts streamline logistics and reduce on‑site time, supporting faster project turnover. In practice, this accessory supports VX enclosure configurations and scalable mounting layouts for modern automation projects.
Product Information
Extended Description
9683008 Rittal: SV Compartment side panel, HD: 1881x738 mm, for VX (HD: 2000x800 mm)
Article number
SV 9683.008
Design
For busbar system assembly in the rear section
Product description
Side divider panel for attaching partial mounting plates and compartment dividers.
Material
Sheet steel, 1.5 mm
Surface finish
Zinc-plated
Supply includes
Assembly parts
Dimensions
Height: 1,881 mm | Depth: 738 mm
To fit
Height: = 2,000 mm | Depth: = 800 mm
Packs of
2 pc(s).
Weight/pack
34.5 kg
Customs tariff number
73269098
EAN
4028177936515
ETIM 9
EC002525
ECLASS 8.0
27400613
Product description
SV Compartment side panel, HD: 1881x738 mm, for VX (HD: 2000x800 mm)
Feature: Robust material and finish. Business Impact: Provides long service life in harsh electrical environments and reduces maintenance cycles. Application: Suitable for VX cabinet rear sections where corrosion resistance is critical. Feature: Precise dimensions and fit. Business Impact: Ensures reliable mounting plate alignment and compartment divider seating, cutting assembly time. Application: Height 1,881 mm and depth 738 mm, with to-fit range up to 2,000 x 800 mm. Feature: Comprehensive packaging. Business Impact: Minimizes handling damage and accelerates deployment with two packs and included assembly parts. Application: Ready for fast installation in large-scale panel builds. Feature: Busbar system compatibility. Business Impact: Supports organized high-density wiring and efficient cable management. Application: Designed for rear-section busbar layouts in VX enclosures. Feature: Installation practicality. Business Impact: Reduces downtime with clear mounting interfaces and standardized hardware. Application: Ideal for modular automation projects.
Get a Quick Quote for a Rittal 9683008
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9683008?
Enquire Now
FAQs
Begin by confirming the VX enclosure height and depth match the panel’s to-fit range. Remove packaging parts as needed, align the side panel with the rear section, and attach using the supplied assembly parts. Ensure the panel sits flush with the mounting plane to maintain proper busbar and divider alignment before powering the system.
The panel uses 1.5 mm sheet steel with a zinc-plated surface for corrosion resistance. It measures 1,881 mm in height and 738 mm in depth, and ships in packs of two with a weight of 34.5 kg per pack. It is designed to fit VX rear sections sized up to 2,000 x 800 mm.
Yes. The side panel is specifically designed for attaching partial mounting plates and compartment dividers, enabling organized busbar routing and modular expansion within VX enclosures. This compatibility reduces planning time and supports scalable panel builds.
The product aligns with ETIM 9 EC002525 and ECLASS 8.0 27400613 classifications, supporting procurement and interoperability. While CE readiness and regional certifications depend on the final assembly and enclosure configuration, the zinc-plated steel construction provides robust protection suitable for European electrical environments when installed per local regulations.
The panel standardizes mounting interfaces, improves cable management, and enhances enclosure organization. Two-pack packaging and included assembly parts reduce handling and installation time, lowering labor costs and accelerating project turnover for large-scale automation deployments.
