Rittal 9683016 Side Panel - Zinc-plated 1.5 mm
Part Number: 9683016
Manufacturer
Rittal
Part number
9683016
Category
Alt Part Number
SV 9683.016
Quick Summary
Rittal SV 9683.016 side panel enables secure mounting for partial mounting plates and compartment dividers in VX enclosure systems. Engineers often struggle to maintain tidy, scalable interior layouts as cabinets grow, risking misalignment and longer installation times. This panel supports industry expectations for CE marking and IP-rated configurations, helping teams meet safety audits and regulatory requirements. Used with the SV mounting hardware, it streamlines assembly, reduces rework, and supports modular enclosure design for efficient change management across plant floors. Designed for busbar system assembly in the roof section, it ships in two packs, balancing installation logistics with reliable structural integrity.
Product Information
Extended Description

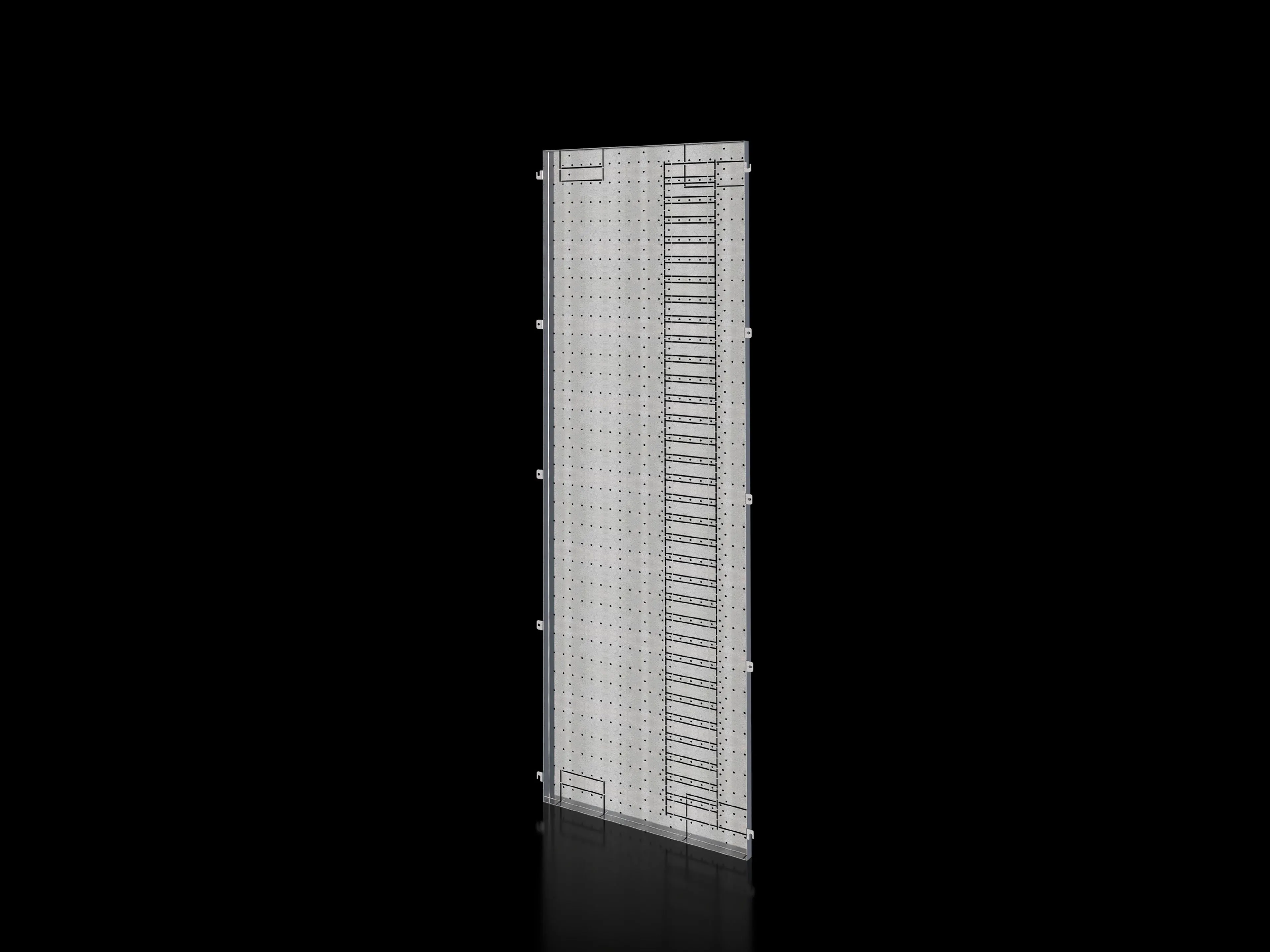

9683016 Rittal: SV Compartment side panel, HD: 1731x538 mm, for VX (HD: 2000x600 mm)
Article number
SV 9683.016
Design
For busbar system assembly in the roof section
Product description
Side divider panel for attaching partial mounting plates and compartment dividers.
Material
Sheet steel, 1.5 mm
Surface finish
Zinc-plated
Supply includes
Assembly parts
Dimensions
Height: 1,731 mm | Depth: 538 mm
To fit
Height: = 2,000 mm | Depth: = 600 mm
Packs of
2 pc(s).
Weight/pack
24 kg
Customs tariff number
73269098
EAN
4028177936508
ETIM 7.0
EC002525
ECLASS 8.0
27400613
Product description
SV Compartment side panel, HD: 1731x538 mm, for VX (HD: 2000x600 mm)
Material and finish: The SV 9683.016 is made from sheet steel at 1.5 mm thickness and zinc-plated for corrosion resistance. Business impact: enhanced durability and long-term reliability in harsh industrial environments. Application: suitable for VX roof-section busbar system assemblies, ensuring consistent partitioning and protection of critical conductors. Dimensions and fit: With a height of 1,731 mm and depth of 538 mm, and a designed fit for VX enclosures up to 2,000 mm high by 600 mm deep, installation is predictable and scalable. Business impact: reduces custom fabrication and minimizes retrofit costs when expanding a panel layout. Application: pair with partial mounting plates and compartment dividers to achieve clean, modular interiors. Packaging and handling: Supplied as 2 packs, 24 kg per pack, with assembly parts included. Business impact: simplifies logistics, enables two-person handling, and speeds on-site setup. Application: supports plug-and-play integration with VX system components. Compatibility: ETIM 7.0 EC002525 and ECLASS 8.0 27400613 confirm alignment with standard catalog data for procurement and engineering workflows. Industry context: aligns with common enclosure design practices for modular, scalable automation installations, reducing downstream integration risk and supporting predictive maintenance routines.
