Rittal SV 9683.036 Side Panel - VX Busbar Roof
Part Number: 9683036
Manufacturer
Rittal
Part number
9683036
Category
Alt Part Number
SV 9683.036
Quick Summary
SV Compartment side panel supports busbar system assembly in VX enclosures. This component addresses alignment and stability challenges when attaching partial mounting plates and compartment dividers. CE, IP, and SIL certifications aren’t listed for this part; nonetheless, the 1.5 mm zinc-plated sheet steel construction provides durable, corrosion-resistant performance and aligns with ETIM 9 EC002525 and ECLASS 8.0 27400613 for reliable data interoperability. In practice, it enables quick, repeatable mounting within VX cabinets, helping engineers speed installations and reduce rework. The panel complements VX enclosure customization for industrial automation and power management applications, with installation-ready parts included.
Product Information
Extended Description

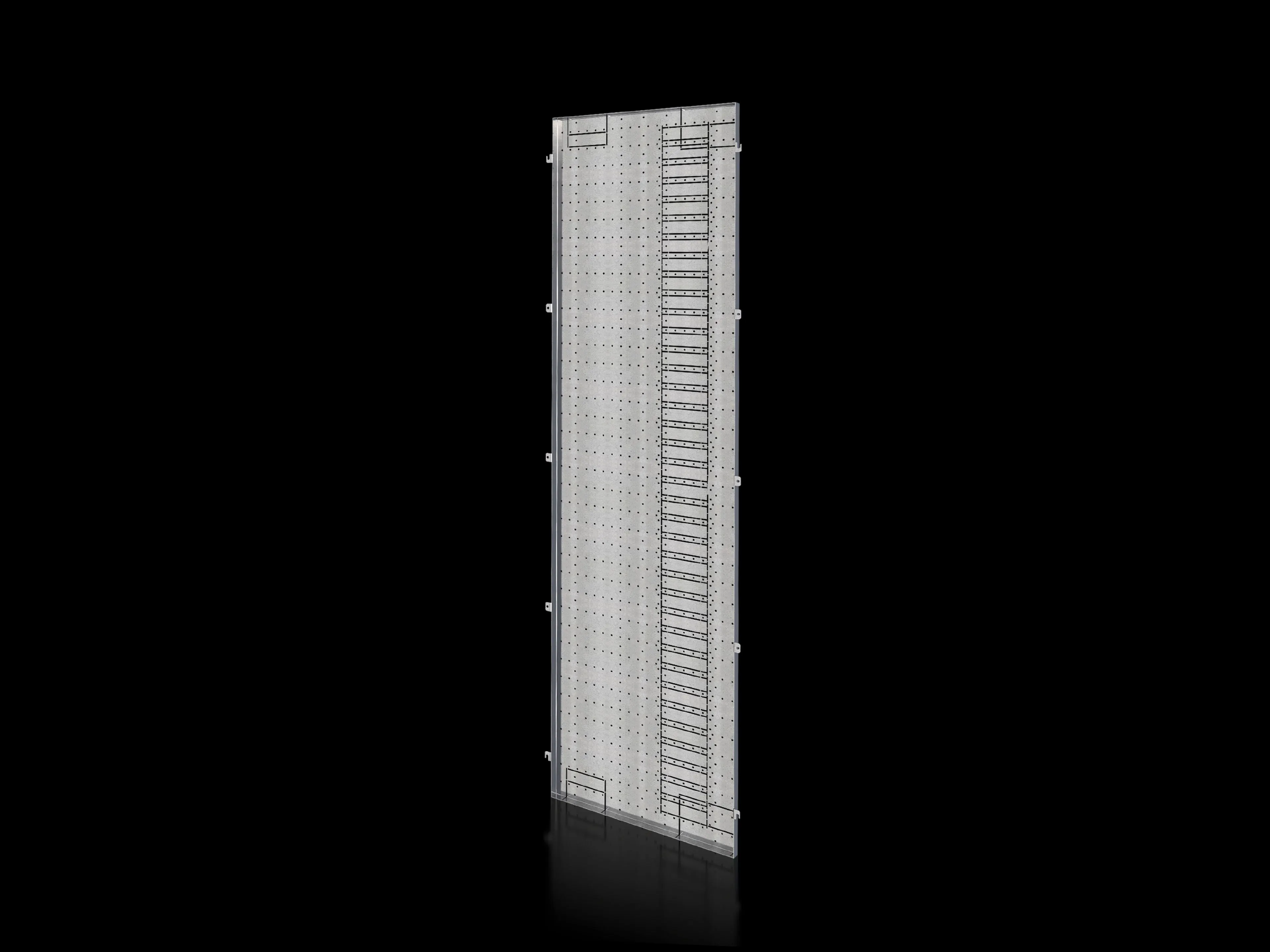

9683036 Rittal: SV Compartment side panel, HD: 1931x538 mm, for VX (HD: 2200x600 mm)
Article number
SV 9683.036
Design
For busbar system assembly in the roof section
Product description
Side divider panel for attaching partial mounting plates and compartment dividers.
Material
Sheet steel, 1.5 mm
Surface finish
Zinc-plated
Supply includes
Assembly parts
Dimensions
Height: 1,931 mm | Depth: 538 mm
To fit
Height: = 2,200 mm | Depth: = 600 mm
Packs of
2 pc(s).
Weight/pack
26 kg
Customs tariff number
73269098
EAN
4028177936485
ETIM 9
EC002525
ECLASS 8.0
27400613
Product description
SV Compartment side panel, HD: 1931x538 mm, for VX (HD: 2200x600 mm)
Feature: 1.5 mm zinc-plated sheet steel construction → Business Impact: Enhanced corrosion resistance and long service life in harsh environments → Application: Suitable for VX enclosure installations in factory floors and outdoor-rated spaces. Feature: Height 1,931 mm and depth 538 mm with to-fit up to 2,200 mm x 600 mm → Business Impact: Precise mechanical fit reduces misalignment and rework → Application: Streamlines busbar roof assemblies in VX enclosures of varying heights and footprints. Feature: Supplied with assembly parts → Business Impact: Fast, tool-assisted installation lowers labor costs and downtime → Application: Ideal for quick field-ups and scalable rack customization. Feature: Pack of 2 panels per pack, weight 26 kg per pack → Business Impact: Efficient shipping and predictable handling for logistics and onsite installation → Application: Suited for multi-panel VX configurations and fast replenishment. Feature: Designed for attaching partial mounting plates and compartment dividers in the roof area → Business Impact: Enables flexible compartmentalization and modular wiring layouts → Application: Supports complex busbar routing and organized control cabinets.
