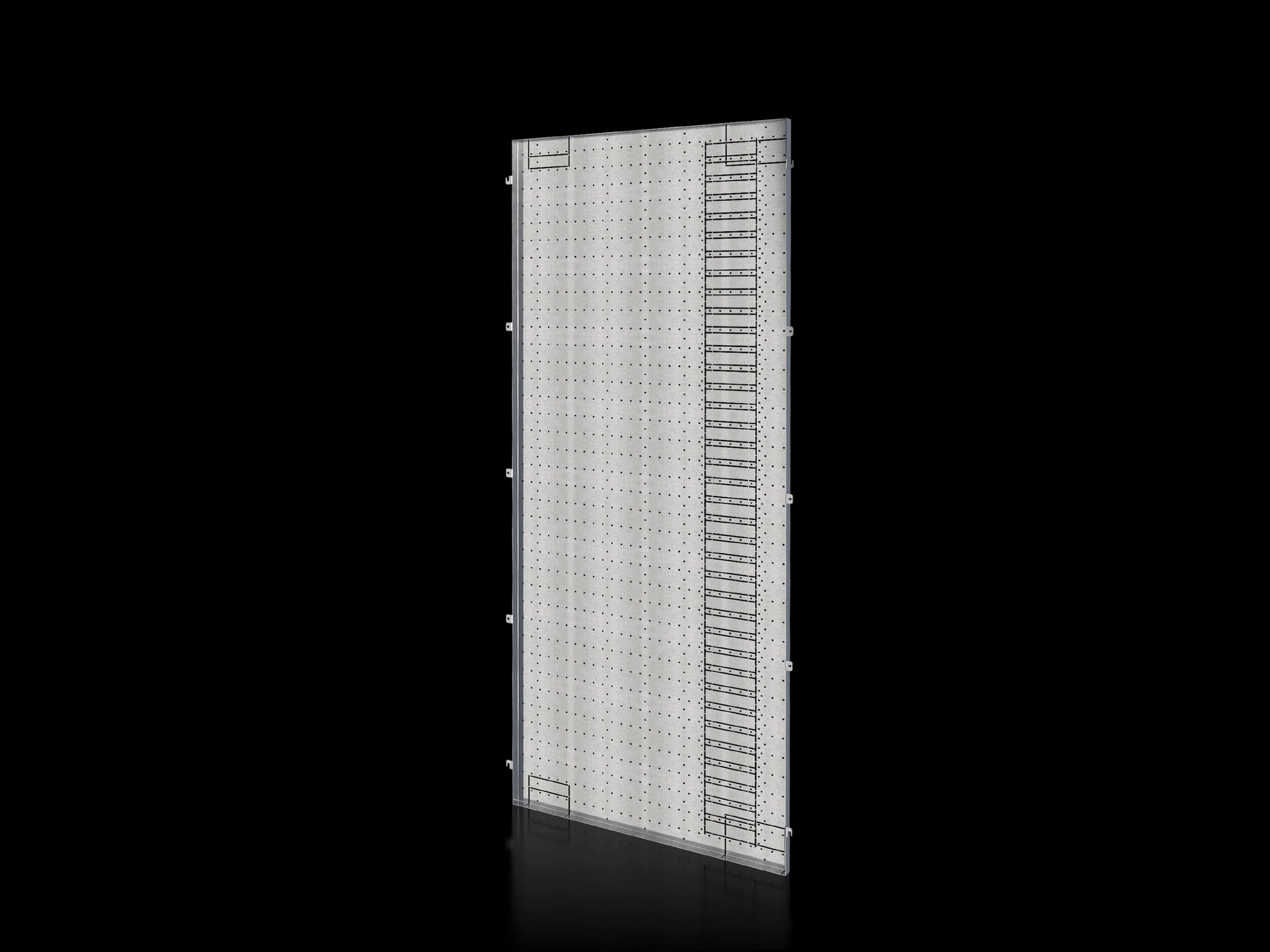

Rittal 9683038 Side Panel - VX Busbar System 1931x738
Part Number: 9683038
Manufacturer
Rittal
Part number
9683038
Category
Alt Part Number
SV 9683.038
Quick Summary
Rittal 9683038 side panel provides a robust partition and mounting support for VX enclosures. Engineers often struggle with securely integrating partial mounting plates and compartment dividers in compact VX enclosures. The design uses 1.5 mm sheet steel with a zinc-plated finish, delivering corrosion resistance and structural rigidity for demanding industrial environments. While explicit CE, IP, or SIL certifications are not listed in the data, the component aligns with common industry classifications such as ETIM 9 EC002525 and ECLASS 8.0 27400613, enabling traceability and compatibility when you verify documentation with Rittal. This panel improves installation efficiency, reduces field fit issues, and supports scalable VX configurations, delivering predictable performance and simplified maintenance across power management and distribution projects.
Product Information
Extended Description
9683038 Rittal: SV Compartment side panel, HD: 1931x738 mm, for VX (HD: 2200x800 mm)
Article number
SV 9683.038
Design
For busbar system assembly in the roof section
Product description
Side divider panel for attaching partial mounting plates and compartment dividers.
Material
Sheet steel, 1.5 mm
Surface finish
Zinc-plated
Supply includes
Assembly parts
Dimensions
Height: 1,931 mm | Depth: 738 mm
To fit
Height: = 2,200 mm | Depth: = 800 mm
Packs of
2 pc(s).
Weight/pack
34.5 kg
Customs tariff number
73269098
EAN
4028177936478
ETIM 9
EC002525
ECLASS 8.0
27400613
Product description
SV Compartment side panel, HD: 1931x738 mm, for VX (HD: 2200x800 mm)
Material and finish: The sheet steel construction at 1.5 mm with a zinc-plated finish delivers reliable corrosion resistance and durable structural integrity. This translates to longer service life in electrical enclosures exposed to workshop or plant environments, reducing maintenance cycles and unplanned downtime. Application: VX roof-section busbar system assembly requires a rigid side panel that can support mounting plates and compartment dividers without flex or deformation. The result is predictable mounting quality and easier field adjustments. Dimensions and fit: The panel's HD 1931x738 mm footprint and exact to-fit guidance (Height 2,200 mm; Depth 800 mm) provide a consistent enclosure interface, reducing trimming, drilling, or misalignment during installation. Application: VX enclosure compatibility is enhanced, enabling modular expansion without rework. Pack size and handling: With packs of two and a weight of 34.5 kg per pack, procurement and logistics are simplified, avoiding mismatched parts and minimizing in-field sourcing delays. Application: Large-scale installations benefit from parallel assembly workflows and standardized parts. Mounting efficiency: Supplied with assembly parts, the SV 9683.038 accelerates commissioning by streamlining hardware integration and reducing ancillary hardware searches. Application: Fast-tracked project timelines and lower total cost of ownership. Documentation and standards: Although direct CE/IP/SIL certifications are not listed, the product aligns with ETIM 9 EC002525 and ECLASS 8.0 27400613 for classification and interoperability, while Rittal documentation supports consistent installation practices. Application: Enterprises improve compliance traceability and vendor qualification processes, especially in multi-site deployments. Weight and logistics: The two-panel pack is designed for stable, stackable transport with reasonable handling requirements when paired with lifting aids. Application: Optimized warehouse handling and reduced risk during on-site material movement.
Get a Quick Quote for a Rittal 9683038
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9683038?
Enquire Now
FAQs
SV 9683.038 is a compartment side panel sized at HD 1931x738 mm, designed for VX enclosures with a 2200x800 mm footprint. It ships in packs of two and weighs 34.5 kg per pack, includes assembly parts, and is intended for busbar system assembly in the VX roof section. Verify exact model compatibility with Rittal documentation for your specific VX configuration.
The panel is supplied with assembly parts to facilitate quick integration of partial mounting plates and compartment dividers. Its 1.5 mm zinc-plated sheet steel provides rigidity, while the fixed interface dimensions reduce on-site adjustments. To install, align with the VX roof-section mounting rails, secure with the included hardware, and attach the dividers and plates as per the VX system guidelines.
The SV 9683.038 uses sheet steel at 1.5 mm with a zinc-plated finish, delivering strong corrosion resistance and structural stability in typical industrial environments. This combination minimizes maintenance requirements and extends service life, particularly in power management and distribution panels where reliability and uptime are critical.
The provided data does not explicitly list CE, IP, or SIL certifications for SV 9683.038. Certification verification should be obtained from Rittal or the product datasheet. While ETIM 9 and ECLASS 8.0 identifiers are present, formal regulatory certifications should be confirmed to meet site-specific compliance requirements.
Selecting SV 9683.038 delivers measurable value through secure mounting of partition components, durable zinc-plated steel for long life, and an installation-friendly package that includes assembly parts. The standard two-pack configuration simplifies procurement, reduces field shortages, and accelerates commissioning, contributing to lower total cost of ownership in scalable VX power management and distribution deployments.
