Rittal SV 9683.446 Compartment Divider - Form Separation
Part Number: 9683446
Manufacturer
Rittal
Part number
9683446
Category
Alt Part Number
SV 9683.446
Quick Summary
Rittal SV 9683.446 Compartment divider is used to horizontally separate compartments inside VX enclosures to improve cable routing and organization. Engineers and procurement teams often struggle with cluttered wiring, mixed cabling routes, and inconsistent Form separation across bays, leading to maintenance delays and higher risk of mis-wiring. In regulated environments, verify CE compliance and ensure IP or SIL considerations are met at system level when the accessory is deployed with supporting enclosure components. This divider works with VX side panels to create Form separation from Form 1 to Form 4, while allowing integral knock-outs for vertical routing and distribution busbars. By standardizing compartment partitions with reliable material and finish, customers gain consistent installation quality and lower lifecycle costs.
Product Information
Extended Description

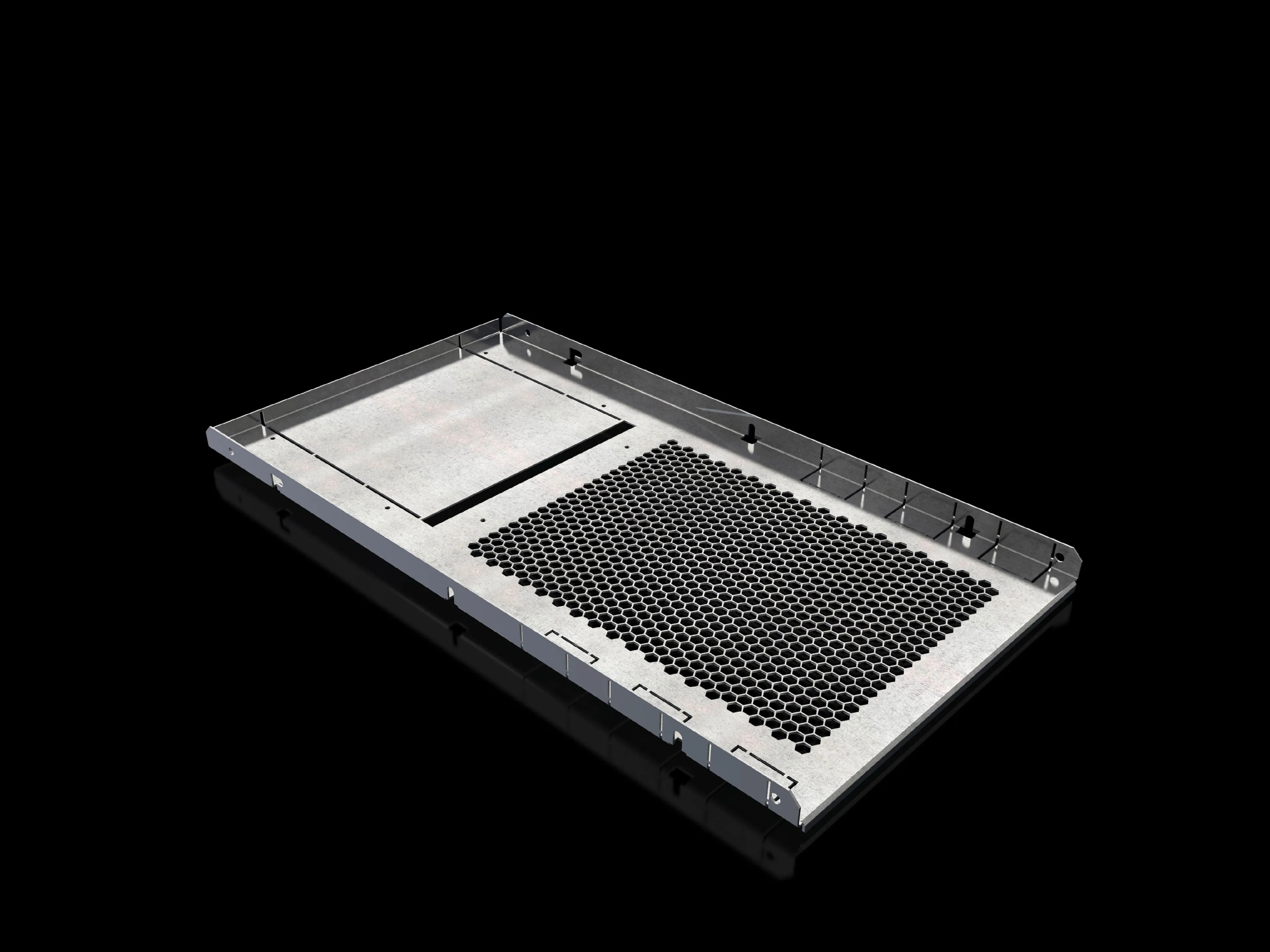

9683446 Rittal: SV Compartment divider, WD: 311x580 mm, for VX (WD: 400x600 mm)
Article number
SV 9683.446
Design
With louvres
Product description
For the horizontal separation of compartments. In combination with the side panels, this creates Form separation to Form 1 to 4. For attachment to the compartment side panel or the enclosure section. The integral cut-outs with pre-punched knock-out option are used for the vertical routing of control lines or cable ducts and for the routing of distribution busbars or connection kits.
Material
Sheet steel, 1.5 mm
Surface finish
Zinc-plated
Supply includes
Assembly parts
Assembly instruction
For assembling compartments as internal Form separation, compartment side panels are required
Dimensions
Width: 311 mm | Depth: 580 mm
To fit
Width: = 400 mm | Depth: = 600 mm
Packs of
2 pc(s).
Weight/pack
3.96 kg
PCF per pack (cradle-to-gate)
15.1 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177936416
ETIM 9
EC002525
ECLASS 8.0
27400613
Product description
SV Compartment divider, WD: 311x580 mm, for VX (WD: 400x600 mm)
Feature: Horizontal division for VX enclosures. Business Impact: Improves cable routing accuracy and reduces cross-talk between circuits. Application: Use with VX compartments and side panels to create Form separation across Forms 1–4, boosting maintenance clarity. Feature: 1.5 mm sheet steel, zinc-plated finish. Business Impact: Delivers durable, corrosion-resistant partitions fit for industrial environments, lowering replacement cycles. Application: Suitable for harsh factory floors and long-term deployments in power management and distribution setups. Feature: Louvres design. Business Impact: Supports controlled airflow, helping enclosure thermal management while maintaining separation. Application: Ideal where cooling efficiency and organized control wiring are critical. Feature: Pre-punched knock-out options. Business Impact: Speeds installation and reduces field modification time, lowering labor costs. Application: Facilitates vertical routing of control lines and cable ducts as wiring density grows. Feature: Assembly parts included and pack size of 2. Business Impact: Simplifies procurement and reduces project lead times, improving on-time commissioning. Application: Streamlines stocking for multi-bay VX configurations and repeat installations. Feature: Dimensions and fit. Business Impact: Precise width and depth support exact enclosure planning, minimizing gaps and misfit issues. Application: Fits VX WD 400x600 mm with divider width 311 mm and depth 580 mm, enabling reliable partitioning.
