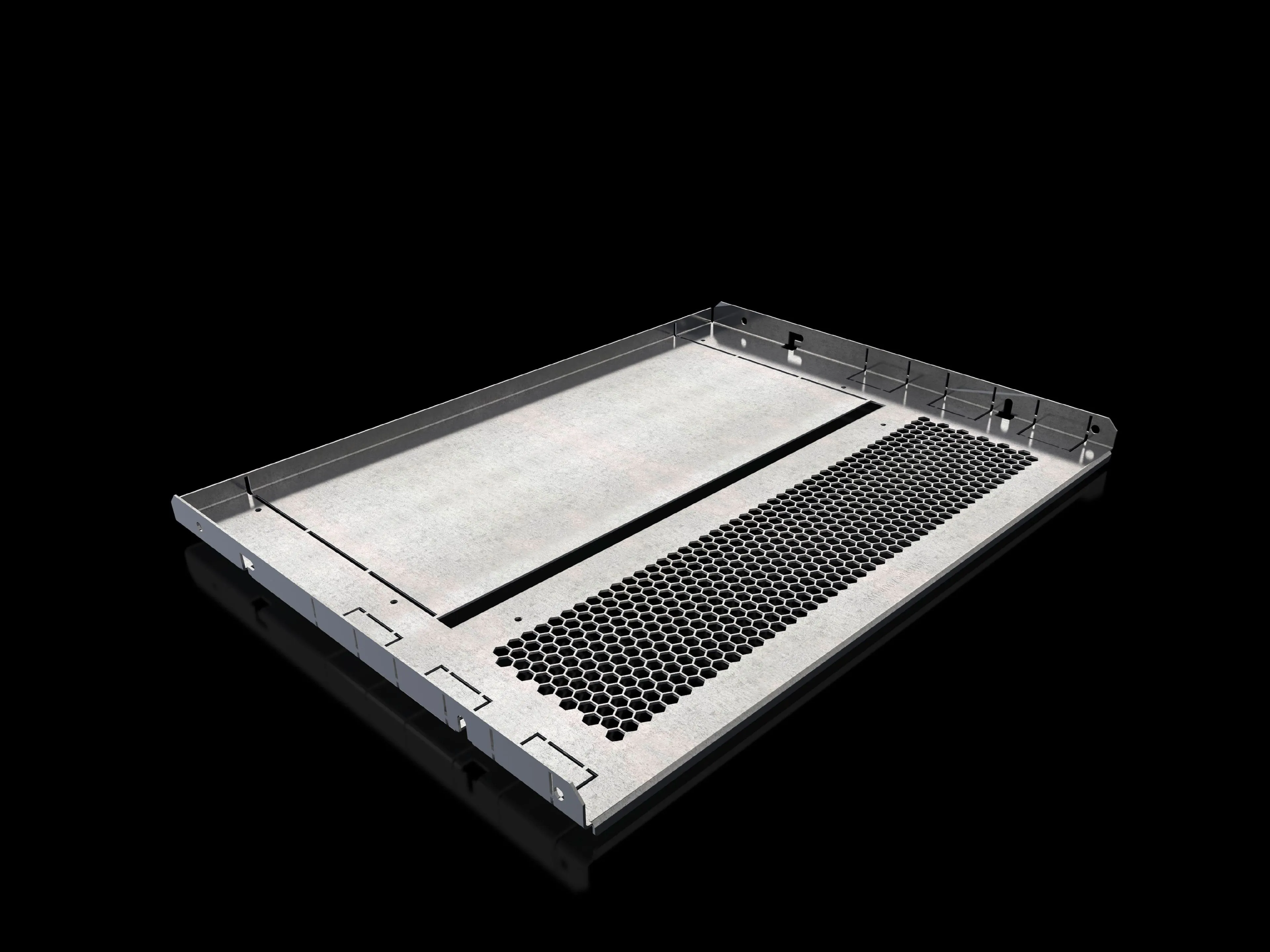

Rittal 9683464 SV Compartment divider - With Louvres
Part Number: 9683464
Manufacturer
Rittal
Part number
9683464
Category
Alt Part Number
SV 9683.464
Quick Summary
Rittal 9683464 SV Compartment divider enables horizontal separation of VX enclosure compartments for control and power sections. It helps engineers avoid cable clutter and simplifies maintenance by defining clear partition lines inside the cabinet. In industrial environments, compatibility with standard classifications such as ETIM EC002525 and ECLASS 27400613 supports easy procurement and cross-system integration. The divider’s 511x380 mm footprint and 1.5 mm zinc-plated sheet steel deliver durable interior partitions, while the built-in louvres aid airflow and heat management. This approach reduces downtime, improves serviceability, and supports scalable, modular enclosure design for growing automation needs.
Product Information
Extended Description
9683464 Rittal: SV Compartment divider, WD: 511x380 mm, for VX (WD: 600x400 mm)
Article number
SV 9683.464
Design
With louvres
Product description
For the horizontal separation of compartments. In combination with the side panels, this creates Form separation to Form 1 to 4. For attachment to the compartment side panel or the enclosure section. The integral cut-outs with pre-punched knock-out option are used for the vertical routing of control lines or cable ducts and for the routing of distribution busbars or connection kits.
Material
Sheet steel, 1.5 mm
Surface finish
Zinc-plated
Supply includes
Assembly parts
Assembly instruction
For assembling compartments as internal Form separation, compartment side panels are required
Dimensions
Width: 511 mm | Depth: 380 mm
To fit
Width: = 600 mm | Depth: = 400 mm
Packs of
2 pc(s).
Weight/pack
4.62 kg
PCF per pack (cradle-to-gate)
17.6 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177936393
ETIM 9
EC002525
ECLASS 8.0
27400613
Product description
SV Compartment divider, WD: 511x380 mm, for VX (WD: 600x400 mm)
Feature: Louvred design enables controlled ventilation without compromising partition integrity. Business Impact: Improves cooling, reduces hot spots, and supports reliable controller operation in VX enclosures. Application: Ideal for mixed-control and power compartments where airflow management is critical to prevent overheating and maintain performance across industrial automation tasks. Feature: 1.5 mm sheet steel with zinc-plated surface. Business Impact: Delivers rugged durability and corrosion resistance in harsh factory environments, extending service life and lowering maintenance costs. Application: Suitable for interior partitions inside rugged VX enclosure ecosystems where metal partitions must withstand mechanical handling and humidity. Feature: Exact footprint 511x380 mm with VX compatibility (600x400 mm). Business Impact: Ensures plug-and-play fitment, reducing engineering time and field adjustments. Application: Fast deployment in existing VX enclosures, enabling rapid Form separation without enclosure rework. Feature: Integral cut-outs and pre-punched knock-outs for vertical routing and busbars. Business Impact: Streamlines cable management and distribution kit installation, cutting assembly time. Application: Supports routing control lines and cables while accommodating distribution busbars or connection kits in a single modular accessory. Feature: Supplied as a 2-pack with assembly parts; installation requires compartment side panels. Business Impact: Economies of scale and simplified stocking for installers, enabling modular partitioning across multiple cabinets. Application: Ideal for projects needing scalable internal Form separation with repeatable partitioning across a manufacturing line. Feature: PCF 17.6 kg CO2 eq per pack (Cat B); weight per pack 4.62 kg. Business Impact: Clear environmental footprint data supports sustainability reporting and lifecycle assessments. Application: Useful for compliance documentation and green procurement programs, aligning with corporate ESG goals.
Get a Quick Quote for a Rittal 9683464
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9683464?
Enquire Now
FAQs
Install the divider inside the VX enclosure using the provided assembly parts. It creates internal Form separation with the side panels; ensure proper alignment with the enclosure’s mounting points and confirm the divider footprint (511x380 mm) matches the VX section (600x400 mm). If additional side panels are needed, acquire them before assembly to complete a secure partition.
Key dimensions are Width 511 mm and Depth 380 mm for the divider itself. It is designed to fit VX enclosures with a compatible internal footprint of 600x400 mm. The product is supplied as a pack of 2 with a weight of 4.62 kg per pack, made from 1.5 mm zinc-plated sheet steel.
Yes. The divider includes integral cut-outs with pre-punched knock-outs intended for vertical routing of control lines or cable ducts and for routing distribution busbars or connection kits, aiding clean cable management and organized wiring inside VX enclosures.
Yes. The PCF per pack (cradle-to-gate) is 17.6 kg CO2 eq (Category B). This value is approximate and self-declared, reflecting the environmental footprint of the 2-pack divider in standard manufacturing and packaging processes.
The supply includes assembly parts for interior partitioning. For complete internal Form separation, compartment side panels are required. The divider is designed to work with VX enclosures and requires side panels to form a secure and serviceable partition between zones.
