Rittal 9683484 SV Compartment divider - EC002525
Part Number: 9683484
Manufacturer
Rittal
Part number
9683484
Category
Alt Part Number
SV 9683.484
Quick Summary
Rittal 9683484 SV Compartment divider separates compartments in VX enclosures for clean cable routing. Without proper internal Form separation, control cables can crowd the enclosure, increasing maintenance time and risking wiring errors. This product aligns with ETIM EC002525 and ECLASS 8.0 27400613 standards, and its PCF Category B footprint supports sustainability reporting. Built for easy installation with included assembly parts, it matches VX dimensions and supports Form separation from Form 1 to 4, enabling scalable layouts. For engineers and procurement teams, this means predictable lead times, fewer change orders, and clearer traceability in audits.
Product Information
Extended Description

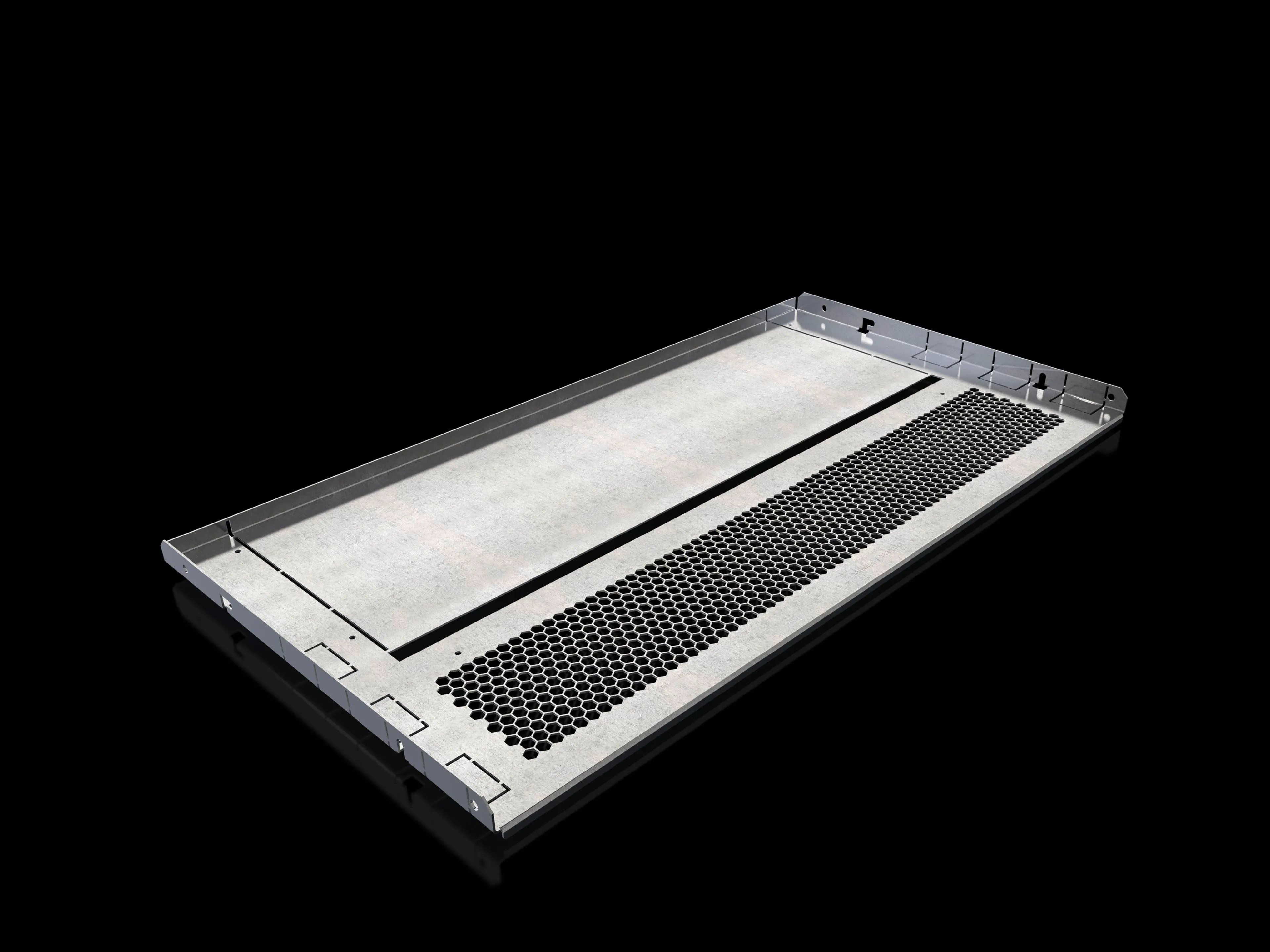

9683484 Rittal: SV Compartment divider, WD: 711x380 mm, for VX (WD: 800x400 mm)
Article number
SV 9683.484
Design
With louvres
Product description
For the horizontal separation of compartments. In combination with the side panels, this creates Form separation to Form 1 to 4. For attachment to the compartment side panel or the enclosure section. The integral cut-outs with pre-punched knock-out option are used for the vertical routing of control lines or cable ducts and for the routing of distribution busbars or connection kits.
Material
Sheet steel, 1.5 mm
Surface finish
Zinc-plated
Supply includes
Assembly parts
Assembly instruction
For assembling compartments as internal Form separation, compartment side panels are required
Dimensions
Width: 711 mm | Depth: 380 mm
To fit
Width: = 800 mm | Depth: = 400 mm
Packs of
2 pc(s).
Weight/pack
6.26 kg
PCF per pack (cradle-to-gate)
23.9 kg CO2 eq (Cat B)
Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
73269098
EAN
4028177936362
ETIM 9
EC002525
ECLASS 8.0
27400613
Product description
SV Compartment divider, WD: 711x380 mm, for VX (WD: 800x400 mm)
Feature: The divider is fabricated from 1.5 mm sheet steel with a zinc-plated finish. Business Impact: Delivers corrosion resistance and durability in demanding environments, lowering maintenance frequency. Application: Suitable as internal Form separation in VX enclosures and for attaching to compartment side panels to organize control wiring. Feature: Design includes louvres. Business Impact: Enables controlled airflow and heat dissipation while maintaining separation, reducing the risk of thermal hotspots. Application: Ideal for enclosures with dense cabling where cooling is a concern. Feature: Exact dimensions (Width 711 mm, Depth 380 mm) to fit VX 800x400 mm spaces. Business Impact: Precise fit minimizes machining or trimming, accelerating install time and reducing waste. Application: Fits VX enclosure sections as internal Form separation modules. Feature: Packs of two with a total weight of 6.26 kg per pack. Business Impact: Efficient shipping and handling, lowering logistics costs and on-site labor. Application: Two-piece packs simplify budgeting and install planning for medium-scale panels. Feature: Integral cut-outs and pre-punched knock-outs for vertical routing. Business Impact: Streamlines routing of control cables and distribution busbars, reducing assembly time and error rates. Application: Attach to compartment side panels and route cables through predefined channels. Feature: PCF per pack is 23.9 kg CO2 eq (Category B). Business Impact: Supports sustainability reporting and lower cradle-to-gate environmental footprint. Application: Aligns with corporate green initiatives and life-cycle assessments for VX enclosure projects.
Get a Quick Quote for a Rittal 9683484
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Rittal 9683484?
Enquire Now
FAQs
Install with the included assembly parts, attaching the divider to the compartment side panel or enclosure section. Ensure alignment with the VX 800x400 mm footprint and use the integral cut-outs for vertical routing of cables or busbars. The 711x380 mm divider is designed to form internal walls quickly, reducing install time.
Key specs include 1.5 mm zinc-plated sheet steel, louvred design for airflow, dimensions of 711x380 mm (fits VX 800x400), and pre-punched knock-outs for vertical routing. Pack weight is 6.26 kg per 2-pack, with PCF around 23.9 kg CO2 eq per pack, aiding sustainability reporting.
Yes. The divider is designed to enable horizontal separation of compartments, and when used with side panels, it supports Form separation across Form 1 to Form 4. It accommodates routing cut-outs for cables and distribution kits, supporting scalable enclosure layouts.
The SV Compartment divider conforms to ETIM 9 EC002525 and ECLASS 8.0 27400613 classifications, with sustainability data provided as PCF Category B. These standards support interoperability in procurement systems and lifecycle assessments.
By simplifying internal cable routing, reducing install time, and improving maintainability, the divider lowers labor costs and minimizes downtime. The two-pack arrangement and efficient logistics also reduce project waste and support regulatory and sustainability reporting.
